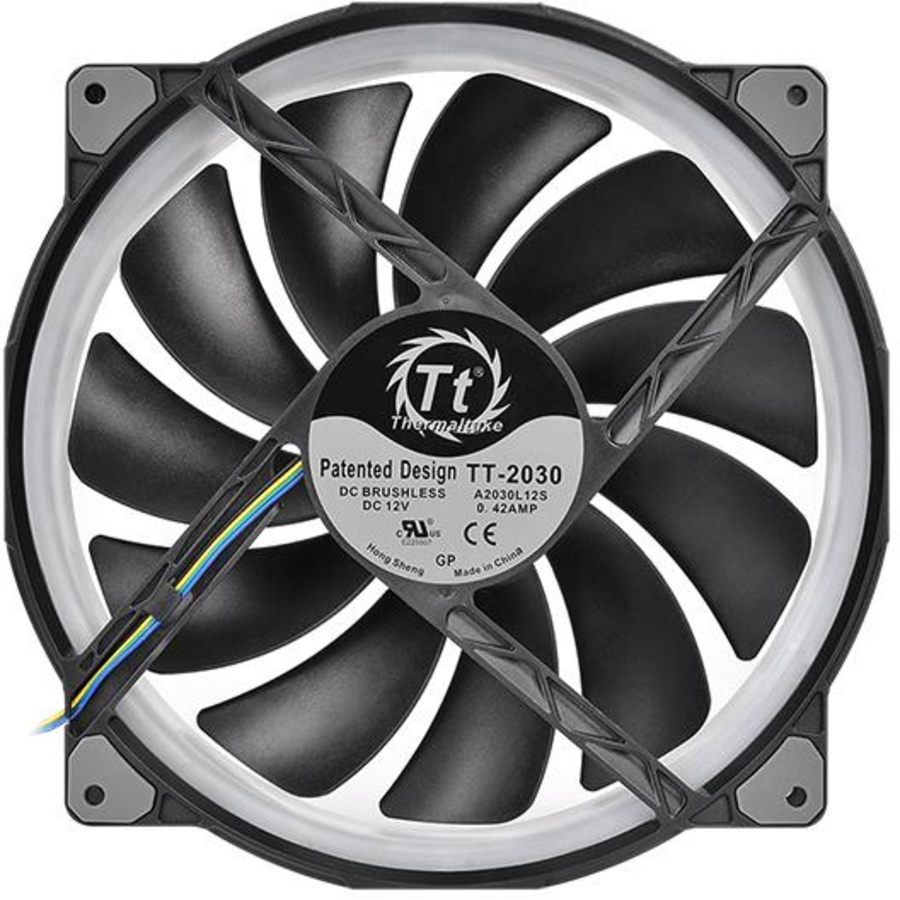

Thermaltake Riing Plus 20 RGB Case Fan

Home :: Cooling & Mods :: Cooling Fans ::

Regularly: ~~$95.00~~
On Sale: $90.72 Sale Ends: September 28th, 2024

Manufacturer: Thermaltake

Riing Plus 20 LED RGB Case Fan TT Premium Edition, Single Fan Pack with Controller

Availability
Ottawa Store: Inquire Online Here National Warehouse (Shipping Availability): Usually Ships in 24-48 Hours

Product #	Manufacturer #	UPC #	Status
53471073	CL-F069-PL20SW-A	4711246871977	Active

Details

General Information

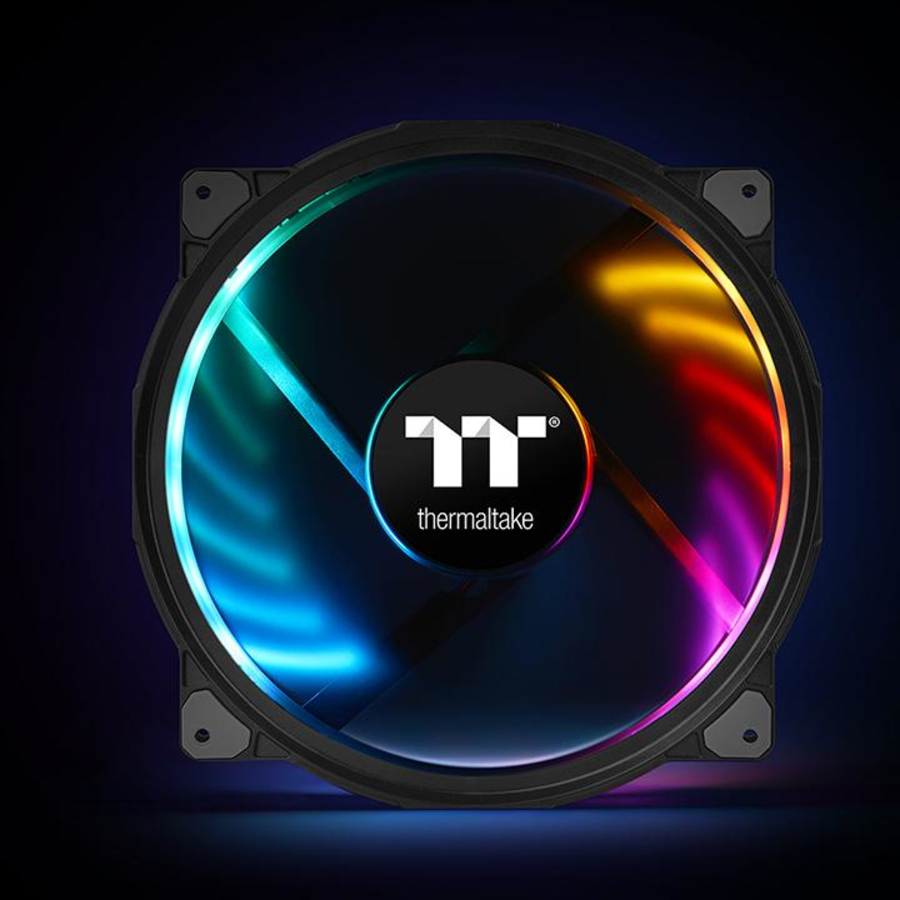

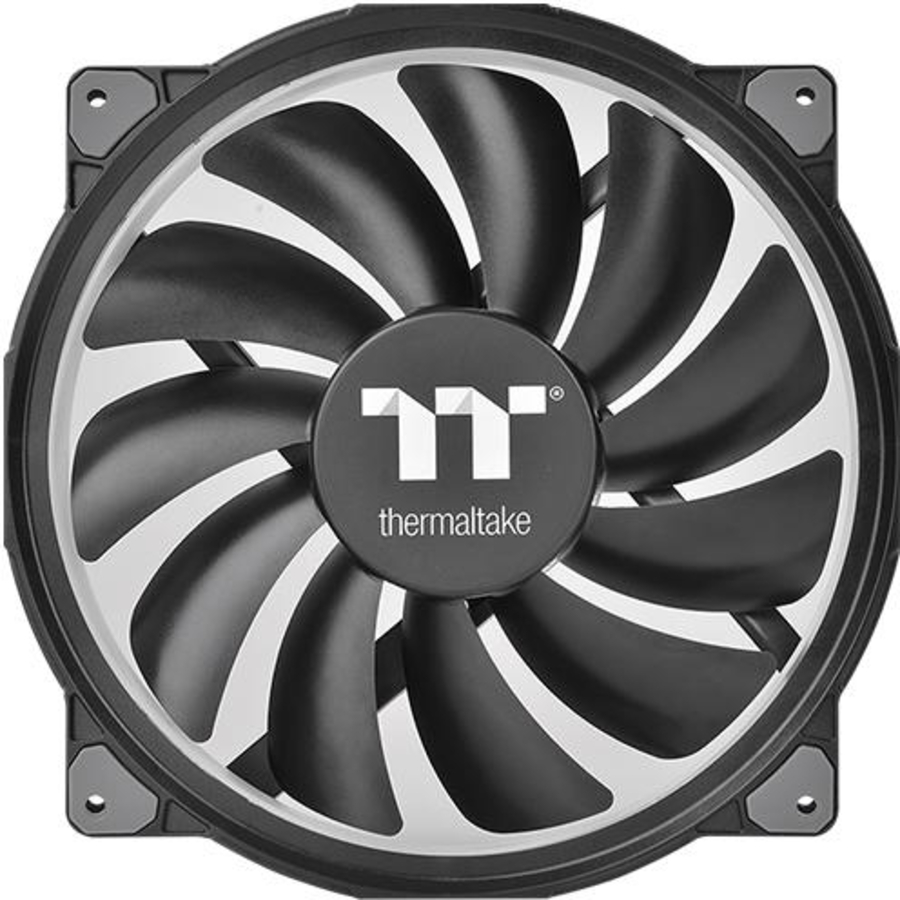

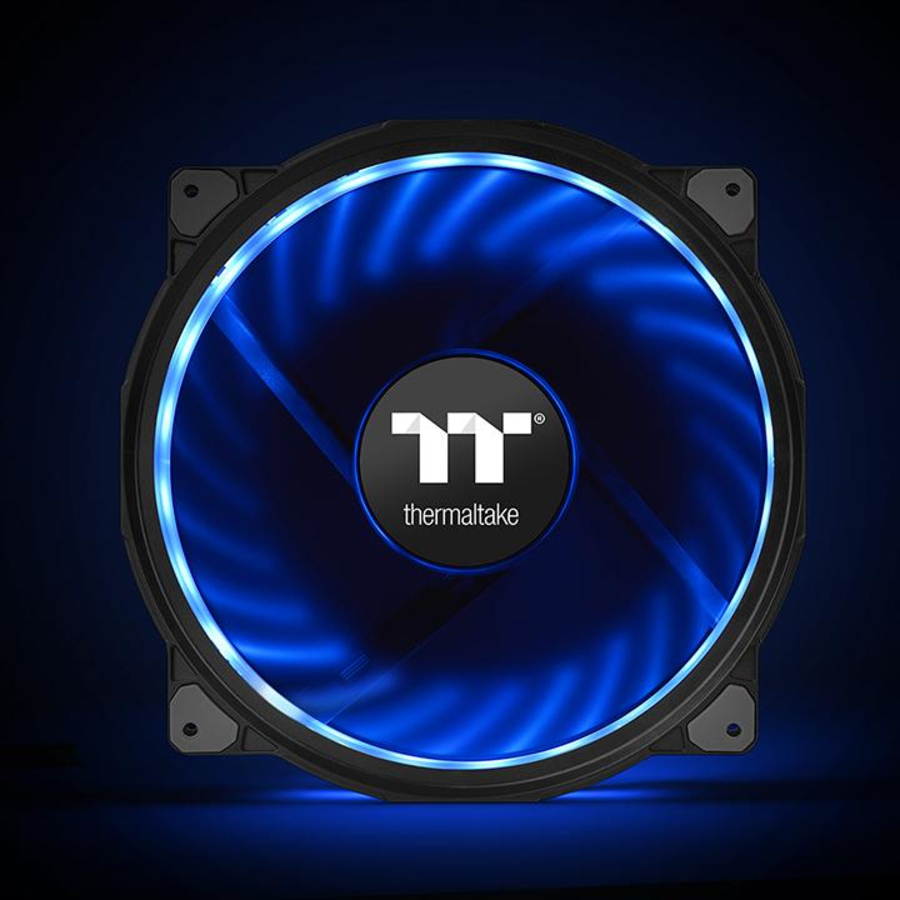

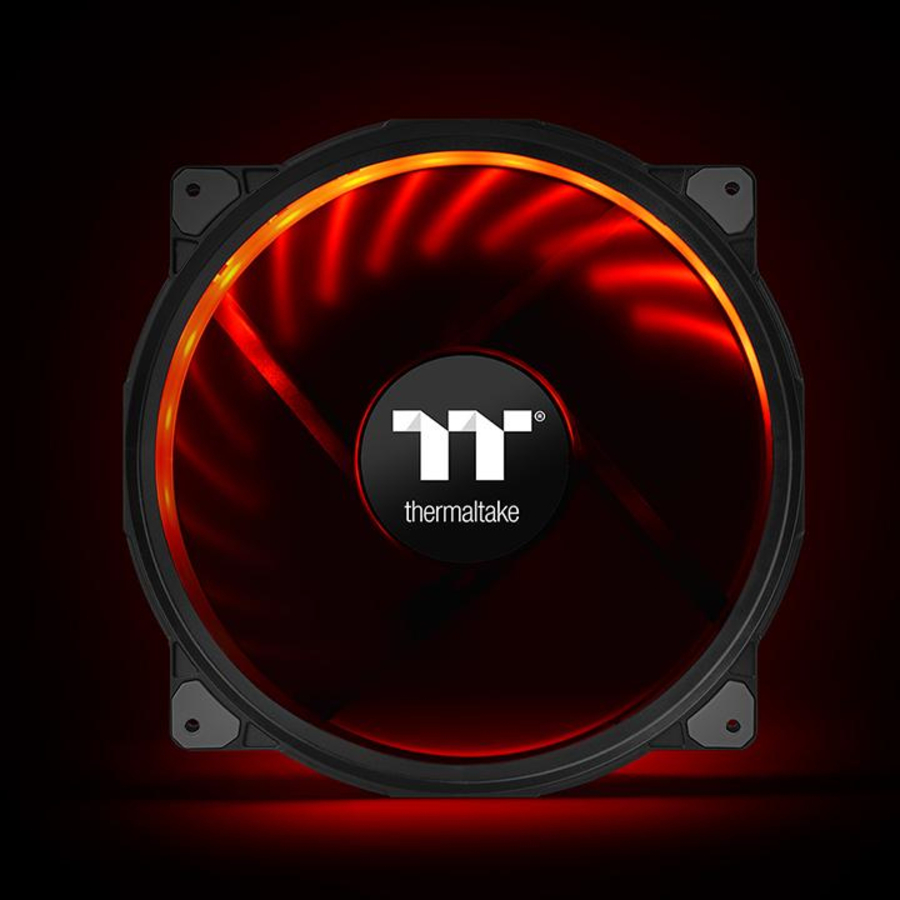

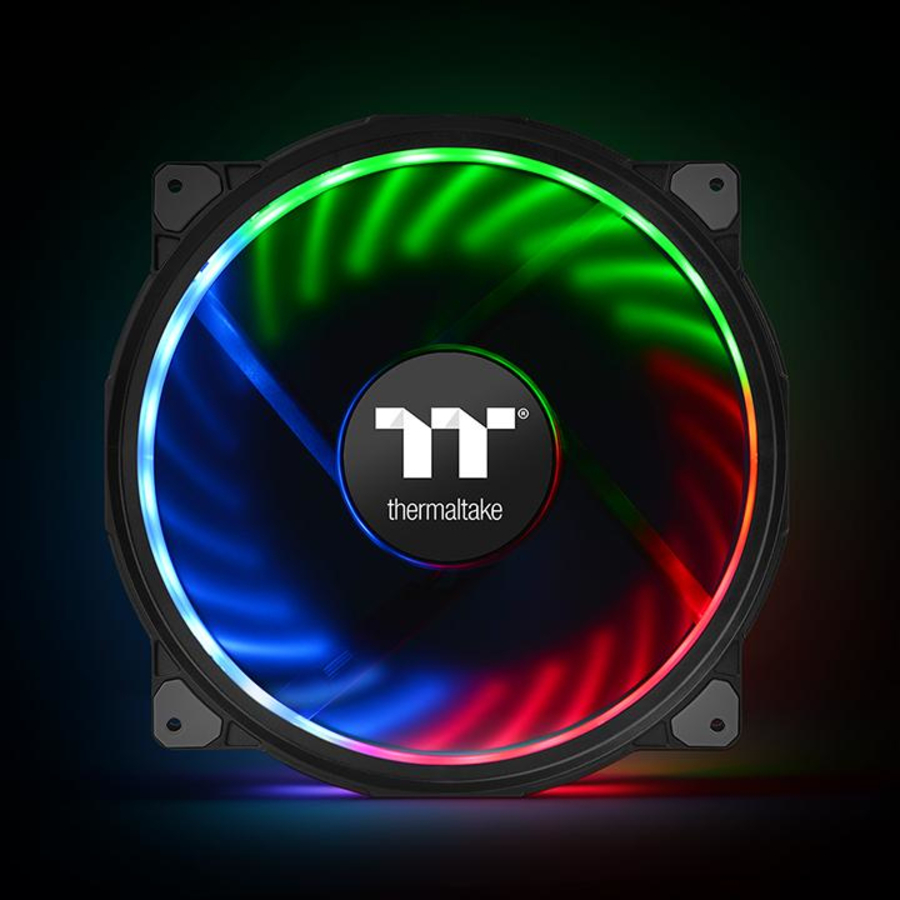

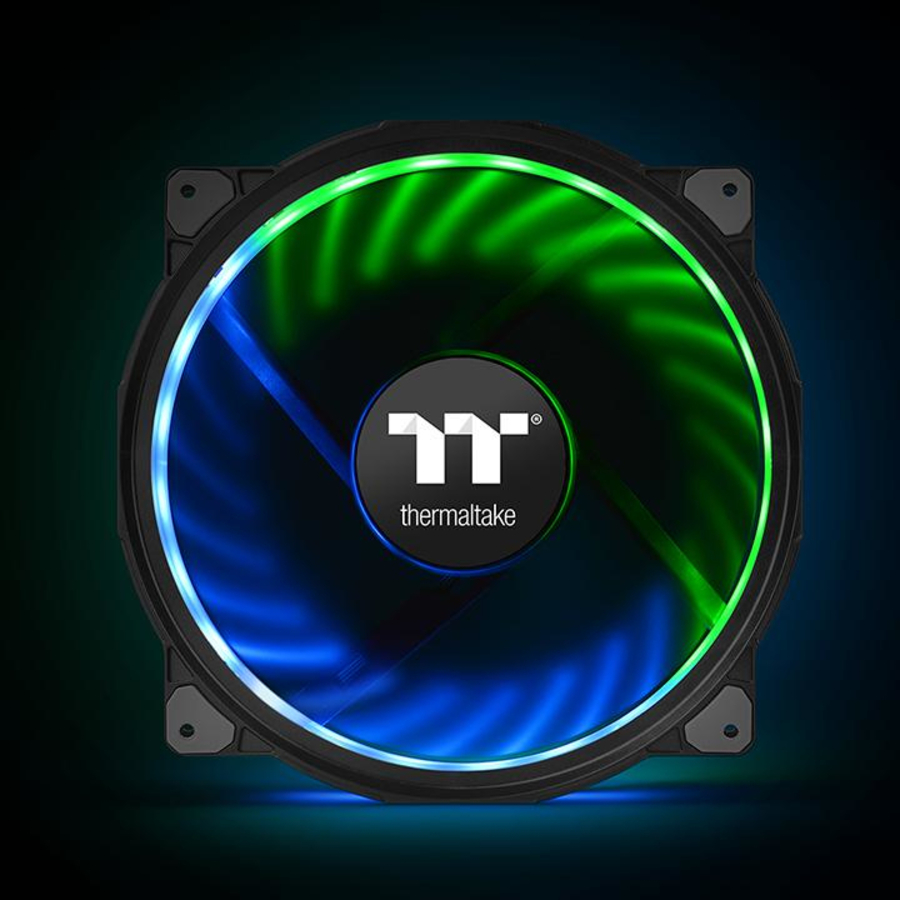

Summary	Specially made for those seeking a 200mm PWM fan with superior airflow, silent operation and customizable RGB lighting, Thermaltake Riing Plus 20 RGB features compression blades, hydraulic bearing, and a patented 16.8 million colors LED ring with 12 addressable LEDs sets (24 addressable LEDs). Supporting Thermaltake’s patented TT RGB PLUS Software and AI interactive voice control, the Riing Plus 20 RGB lights up your system without sacrificing performance! TT RGB PLUS TT RGB PLUS Ecosystem is the intelligent lighting system for PCs that combines the most advanced addressable LED lighting with Thermaltake’s patented TT RGB PLUS Software. TT RGB PLUS ecosystem provides nearly unlimited possibilities for playing with colors, synchronizing lights to games, music, CPU temperatures or other TT RGB PLUS products, including case fans, CPU/VGA waterblocks, AIO CPU coolers, PSUs, LED strips and peripherals. The patented software allows users to change the light modes, colors, speeds, brightness, fan speeds, and even supports AI voice control in iOS and Andriod devices. Patented TT RGB PLUS Software & App Monitor the fan performance, adjust the fan speeds, and customize the lighting effects for Thermaltake RGB PLUS series products with the patented TT RGB PLUS Software and an exclusively designed mobile app. Choose a function from below and scroll down to read the details. SyncALL, Say “Hello TT” Thermaltake AI Voice Control Talking to TT RGB PLUS App is an easier, faster way to set lights for your systems. You can ask it to turn the lights on or off, switch lights modes, dim the lights, change light colors, or adjust lights speeds or fan speeds. Choose a video from below to see how it works. Fan Speeds Simply drag the slider bar to adjust your fan speed RPM on a dedicated control panel. The software is also included a number of preset fan modes that allow you to set the fans to ‘Silent Mode’ where the RPM performs between a 500 – 640 RPM range, or ‘Performance Mode’ which operates and dynamically adjusts all the way up to 1000 RPM. Besides running at the optimal RPM range, you can customize the speed by disabling PWM. Fan Alert The software offers real-time fan warning alerts when performance operating issues have emerged. The control panel of the failed fan will be grey out, so you can quickly identify which fan is causing issues. Color Palette Immediately personalize your lighting with the recommended color palette. You can change colors and brigthness for the LED ring which featrues 16.8 million colors, or 12 single LEDs where the lights can be adjusted individually. You also can let each LED display a specific color. Press”Color”, enter the decimal color coded, and then save it. Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three “Color modes” (RGB, Single and Off) and four “Light Speeds” (Slow, Normal, Fast and Extreme). Copy Color– Seamlessly transfer lighting effects of the first fan across to other fans. Profiles Conveniently control all fans and customize the lights at the same time by setting up to five profiles for each fan controller. Each controller your system connected is displayed at the top left of the interface for you to quickly access. Within each profile, you can check which fan is set to what operating speed and lighting effect. You can even “SAVE” and apply the settings to other fan controllers your system is running. Patented LED Design Featuring 12 addressable LEDs sets (2 single LEDs per set), great light coverage, and uniform color and brightness, the built-in LED ring can paint your build with 16.8 million colors. Digital Lighting Controller The controller is designed with a DIP switch on the back. Hence, you can set a number for each controller easily. You can add up to 5 devices to one lighting controller and up to 16 controllers to the software. The controller and the coding guide are included in all packs. 11 Fan Blade Design 200mm fan with unique 11 blades design is engineered to generate higher airflow without compromising on ultra-silent operation. Hydraulic Bearing with Low-Noise Design The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit. Anti-Vibration Mounting System In-mold injection anti-vibration rubber pads provide a hassle-free usage with 80% protection coverage for all corners.
Performance
Suitable location	Computer case
Type	Fan
Fan diameter	20 cm
Compatible processor series	Not supported
Rotational speed (min)	500 RPM
Rotational speed (max)	1000 RPM
Noise level (low speed)	19 dB
Noise level (high speed)	29.2 dB
Maximum airflow	117.96 cfm
Maximum air pressure	1.68 mmH2O
Bearing type	Hydraulic
Mean time between failures (MTBF)	40000 h
Design
Product colour	Black
Number of fans	1 fan(s)
Number of fan blades	11
Illumination LED	Yes
Number of LEDs	20
Illumination colour	Blue, Green, Red
Power
Power consumption (typical)	4.25 W
Voltage	5 - 12 V
Rated voltage	12 V
Starting voltage	9 V
Rated current	0.28 A
Weight & dimensions
Width	200 mm
Depth	30 mm
Height	200 mm
Weight	463 g

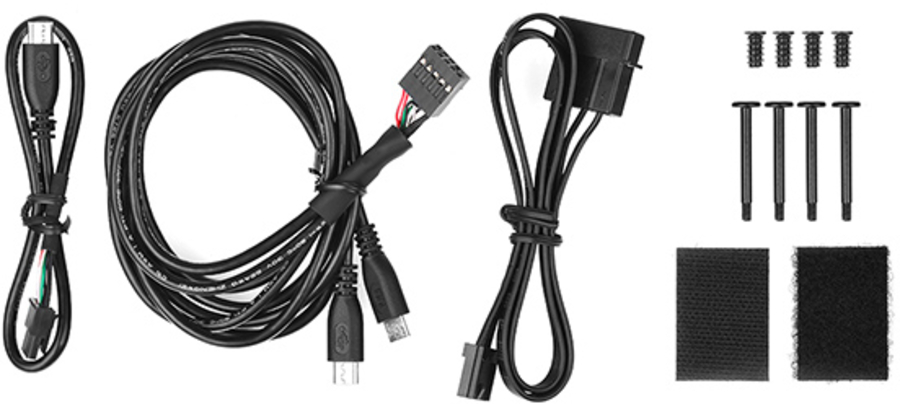

Packaging content

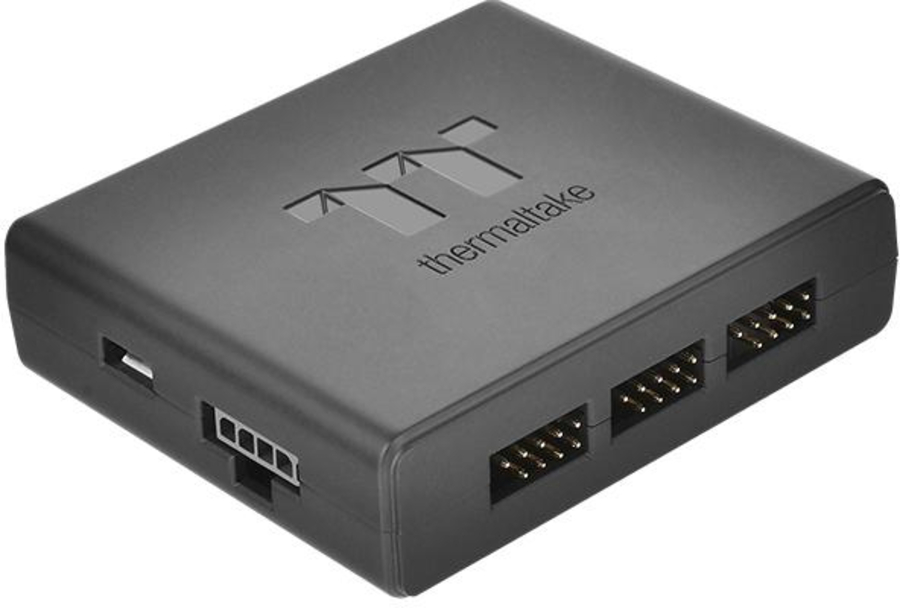

LED controller	Yes
LED controller interface	USB 2.0
Logistics data
Harmonized System (HS) code	84733080
