QNAP QDA-SA2 6Gbps 2.5-inch SATA SSD to 3.5-inch SAS Drive Adapter for Dual-Controller Servers
|
|
Price: $377.00
Manufacturer:
QNAP
1 x 2.5" SATA 6Gbps HDD/SSD, 138.2 x 101.6 x 25.9 mm, 0.15 kg
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
53536701
|
QDA-SA2-4PCS
|
4713213516140 |
Active
|
Details
|
General Information |
|
Summary |
QDA-SA2
6Gbps 2.5-inch SATA SSD to 3.5-inch SAS drive adapter for dual-controller servers

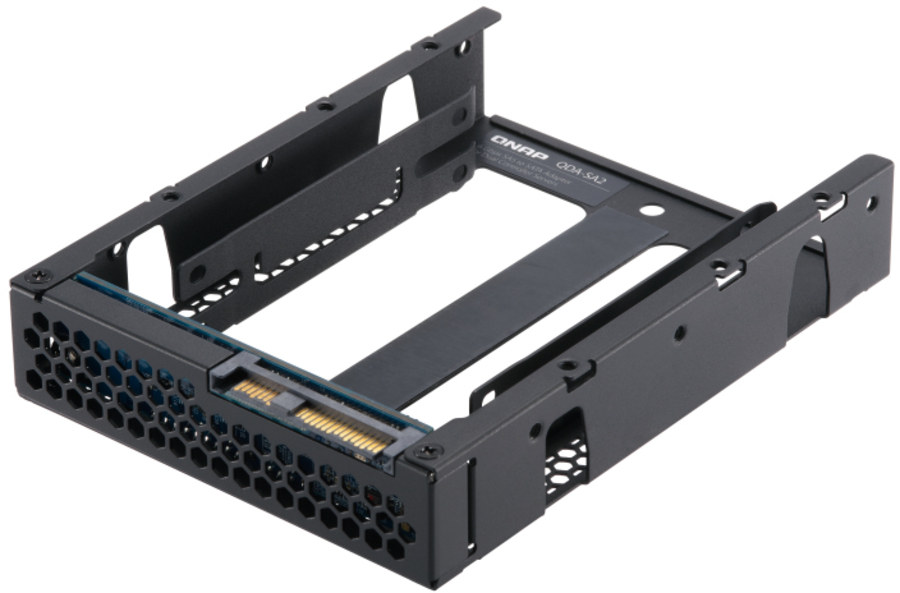

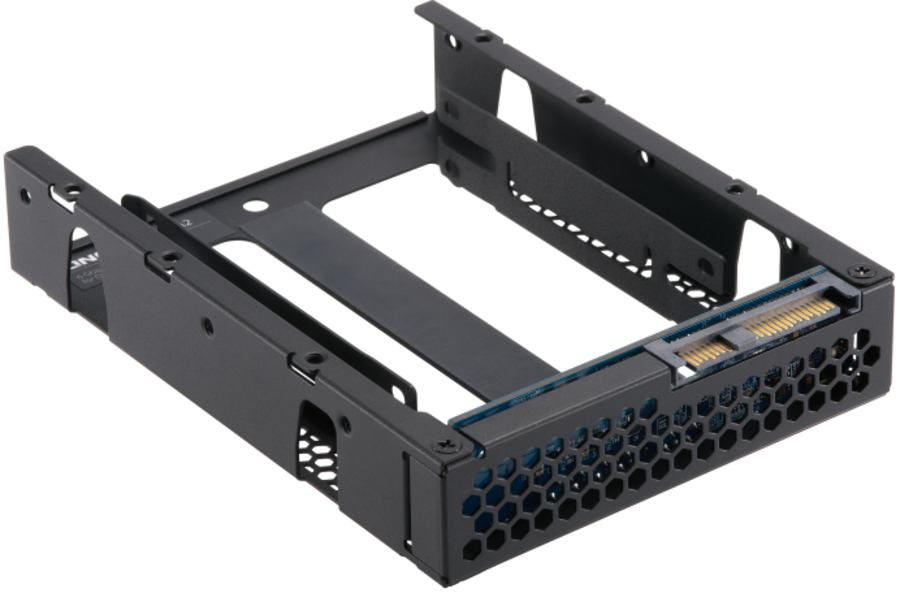

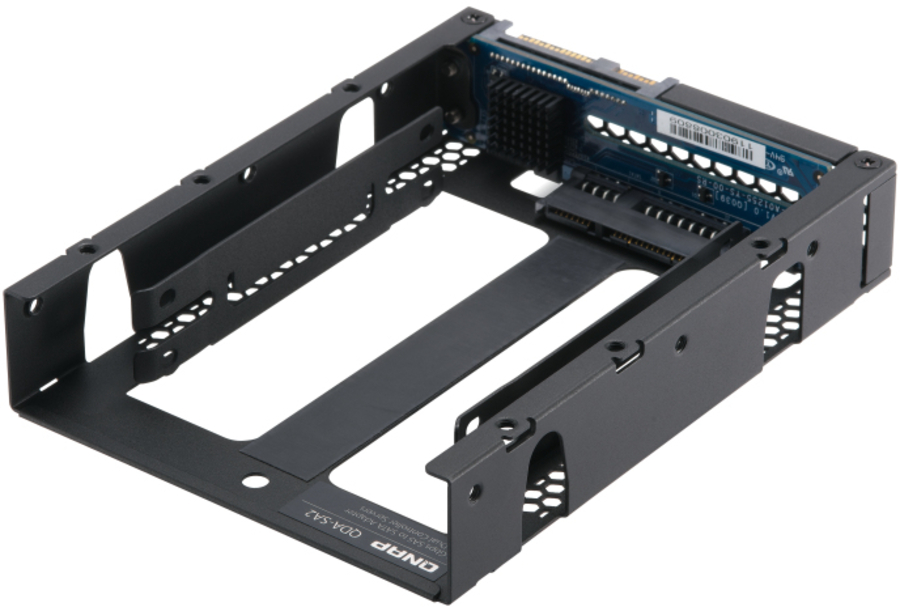

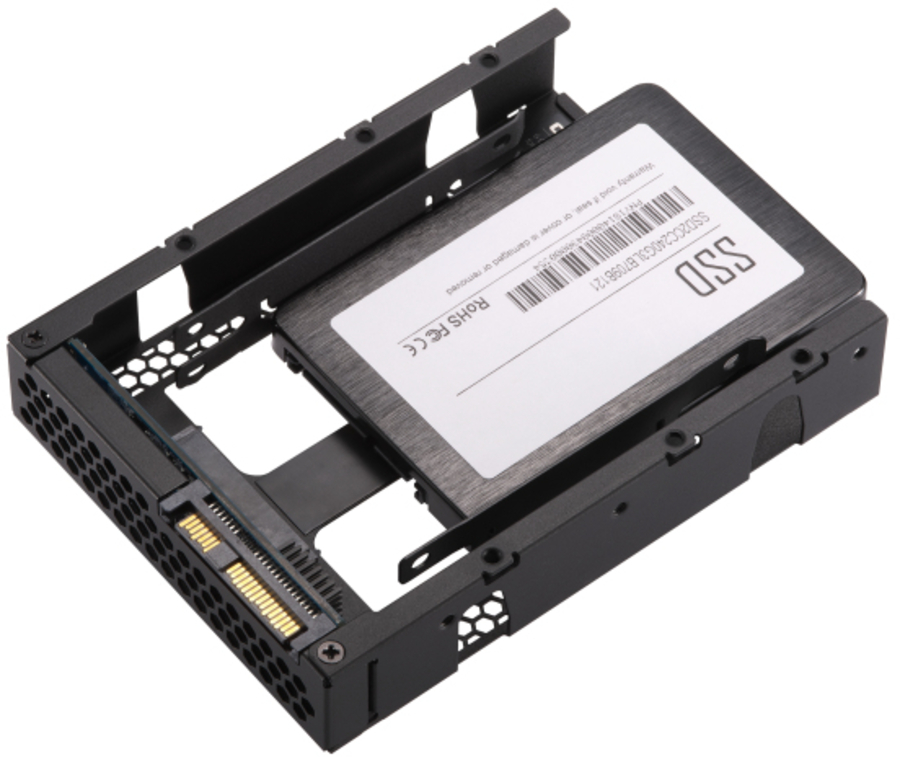

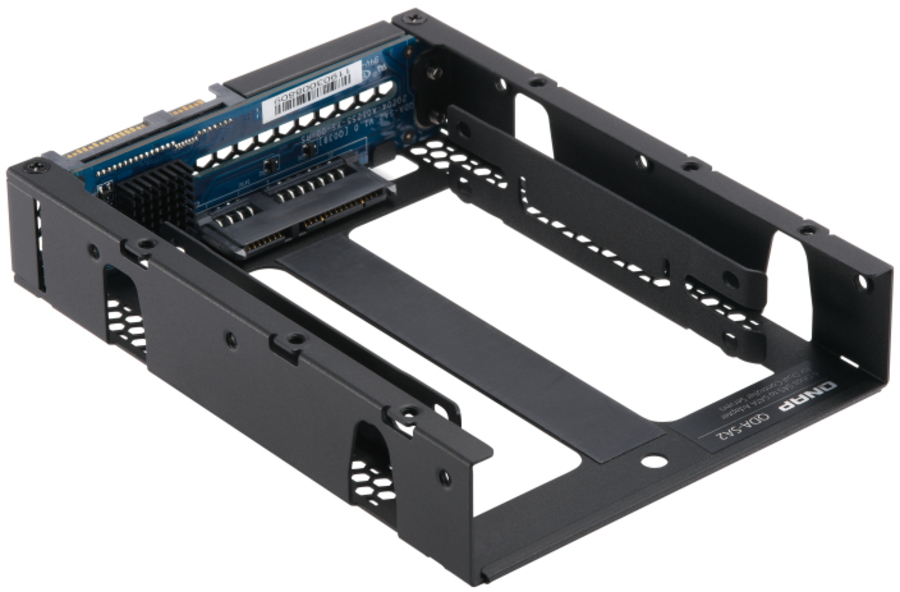

The QDA-SA2 adapter is designed for dual-controller servers and QNAP Enterprise ZFS NAS and allows the use of a 2.5-inch SATA 6Gbps SSD in a 3.5-inch SAS drive bay. It can be installed in a QNAP NAS or server (Windows®, Linux®) – providing the capacity to replace an expensive SAS drive with a more-affordable yet high-performing SATA SSD.
SAS dual-port advantage for fault tolerance
SAS features dual porting for redundancy, eliminating single points of failure and allowing for higher reliability and performance. Although SATA 6Gbps SSDs provide high-performance and affordable storage, the lack of dual-port support makes them unsuitable for dual-controller environments. By installing a SATA SSD with the QDA-SA2 into a dual-controller Enterprise ZFS NAS or a dual-controller server, the SATA SSD can share these SAS dual-port advantages to ensure a high-availability, fault-tolerant enterprise storage environment.
Designed for dual-controller servers and Enterprise ZFS NAS
The QDA-SA2 can be easily installed in a dual-controller Windows®/Linux® SAS server and the 3.5-inch disk tray of an Enterprise ZFS NAS (Disk tray model: SP-ES-TRAY-WOLOCK). (QES 2.0.0 (or later) is required for the NAS) |
|
Storage |
|
Storage drive size |
2.5" |
|
Supported storage drive interfaces |
Serial ATA III |
|
Number of storage drives supported |
1 |
|
Ports & interfaces |
|
USB connectivity |
No |
|
Design |
|
Product type |
HDD/SSD enclosure |
|
Product colour |
Black |
|
Performance |
|
Data transfer rate |
6 Gbit/s |
|
Weight & dimensions |
|
Width |
138.2 mm |
|
Depth |
101.6 mm |
|
Height |
25.9 mm |
|
Weight |
150 g |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
