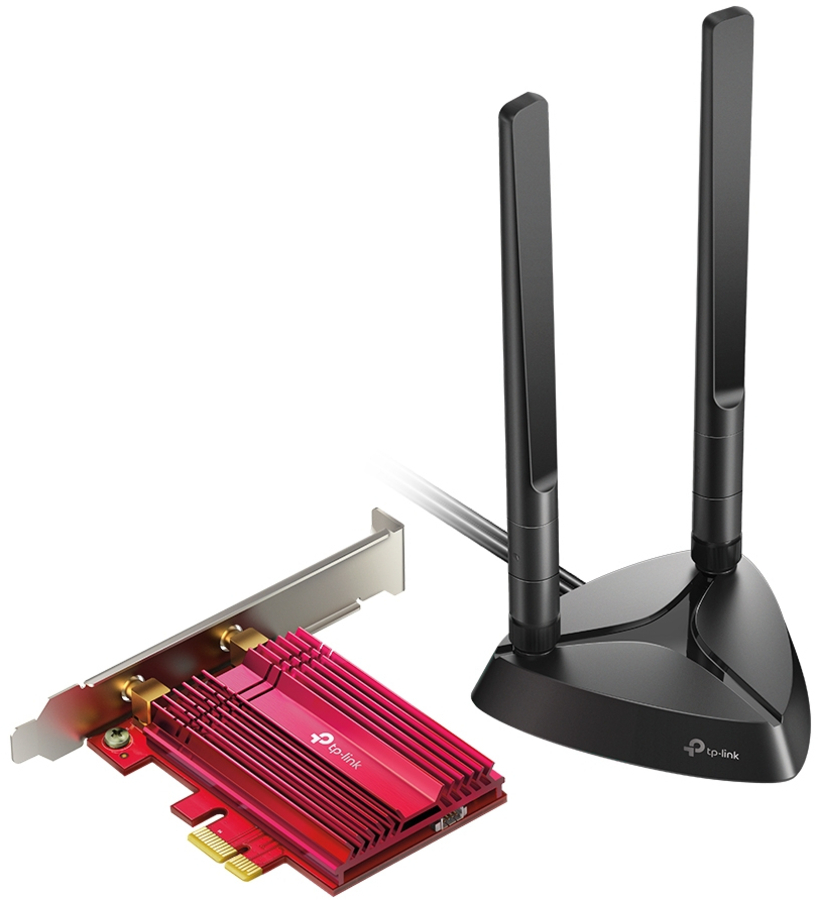

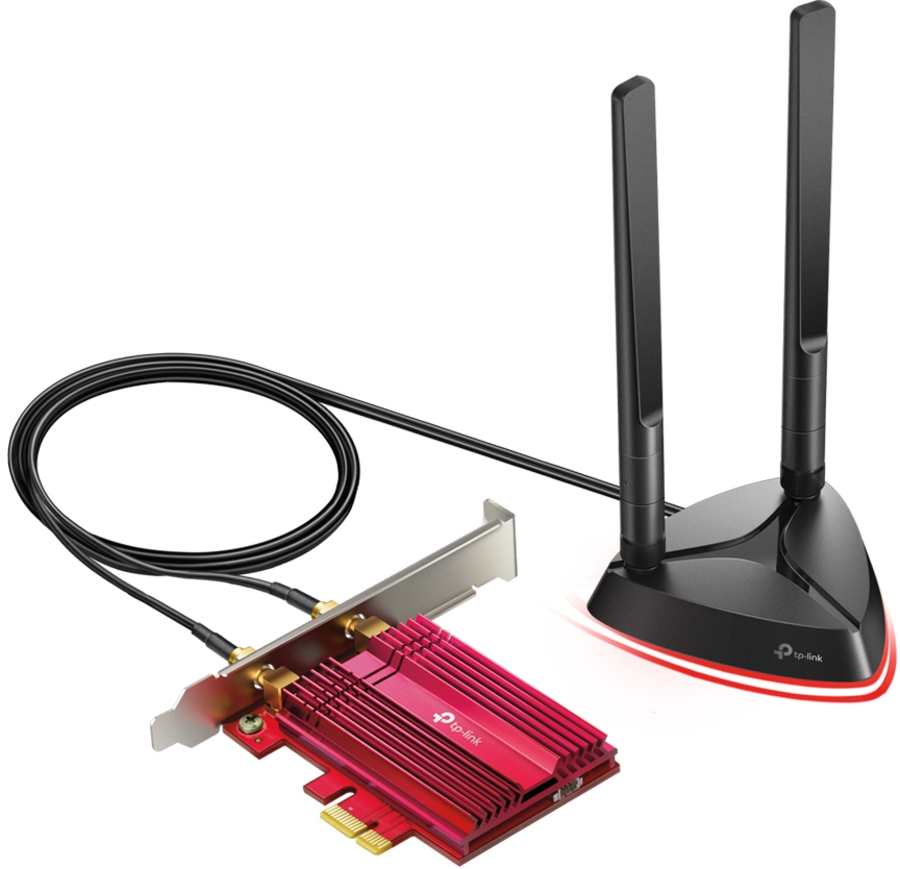

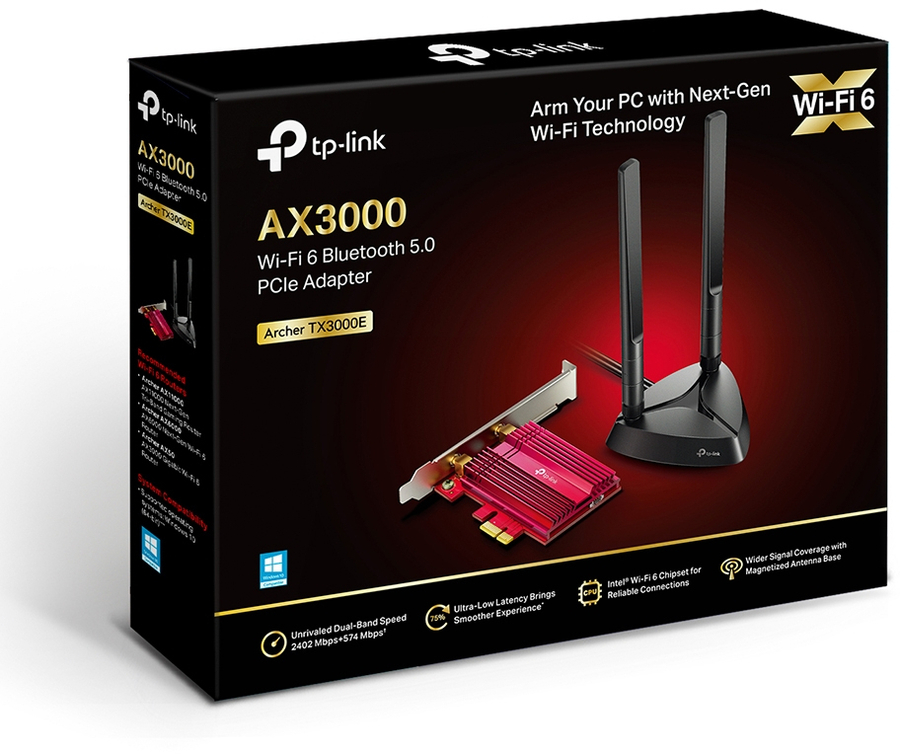

TP-Link Archer TX3000E AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter
|
|
Regularly: $71.00
On Sale: $68.16
Sale Ends:
April 26th, 2024
Manufacturer:
TP-Link
Intel Wi-Fi 6 Chipset, 2.4/5 GHz, Bluetooth 5.0
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
53960558
|
ARCHER TX3000E
|
6935364088897 |
Active
|
Details
|
General Information |
|
Summary |
Next-Level Gaming
The very latest Wi-Fi 6 standard guarantees extreme speed, ultra-low latency, and uninterrupted connectivity. Utilizing the Wi-Fi 6 foundation, Archer TX3000E is designed to liberate your gaming from cables and fully optimize your gameplay. Discover the missing component of your gaming arsenal!

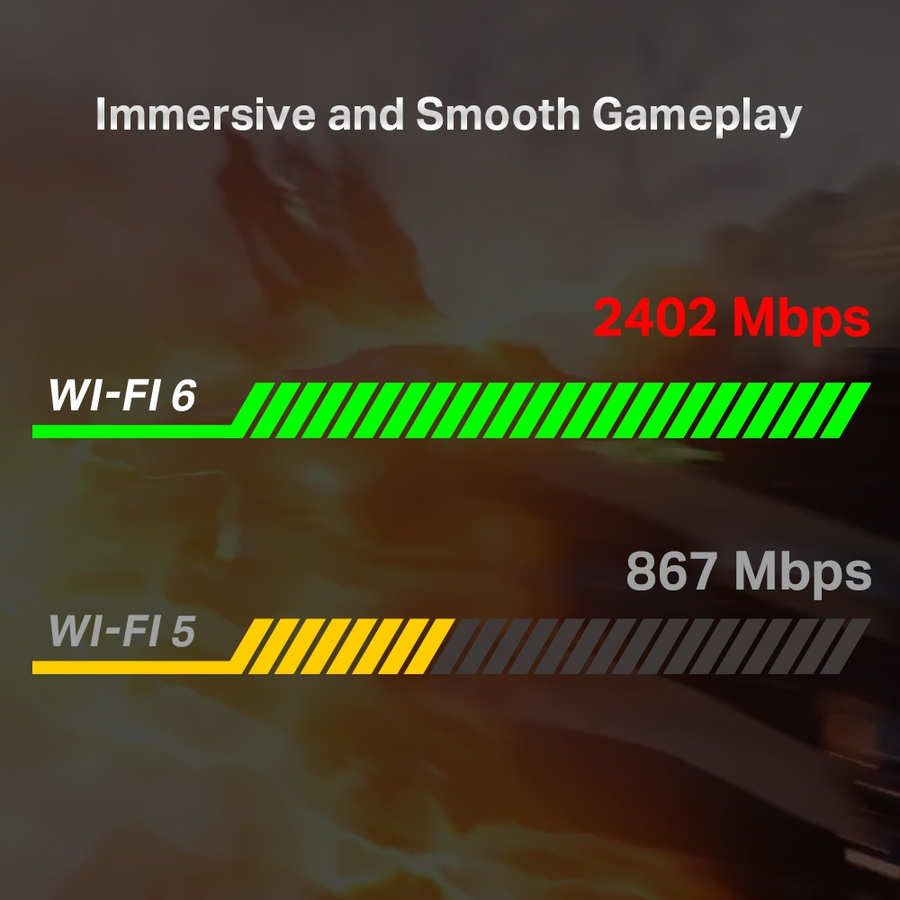

Stay Immersive
1024-QAM and a 160 MHz bandwidth deliver powerful, continuous WiFi to fully unlock the potential of your Wi-Fi 6 router. Wi-Fi 6 drives your PC to peak performance so your setup keeps pace with your jaw-dropping skills.
Incredibly Smooth Gameplay
Lower latency is essential to gaming success. Revolutionary OFDMA reduces lag by up to 75%. Enjoy ultra-responsive real-time gaming or immersive VR experiences.

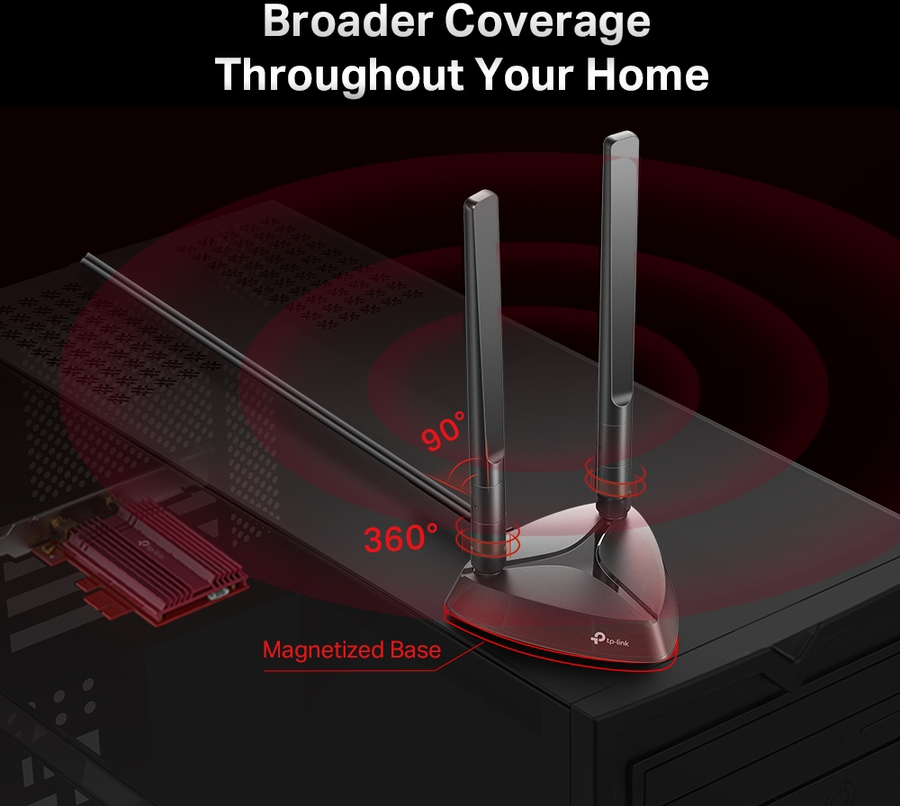

Broader Coverage
Two multi-directional and high-performance antennas with a magnetized base extends your existing WiFi reception capabilities, allowing you to game anywhere and anytime. Place the magnetized antenna base anywhere on your desktop to find the optimal location for signal reception.
Simultaneous Entertainment for All
A revolutionary combination of OFDMA and MU-MIMO technologies ensures the most efficient WiFi connection for your PC. OFDMA technology divides band resources into smaller units while MU-MIMO allows more devices to communicate simultaneously—without lag.

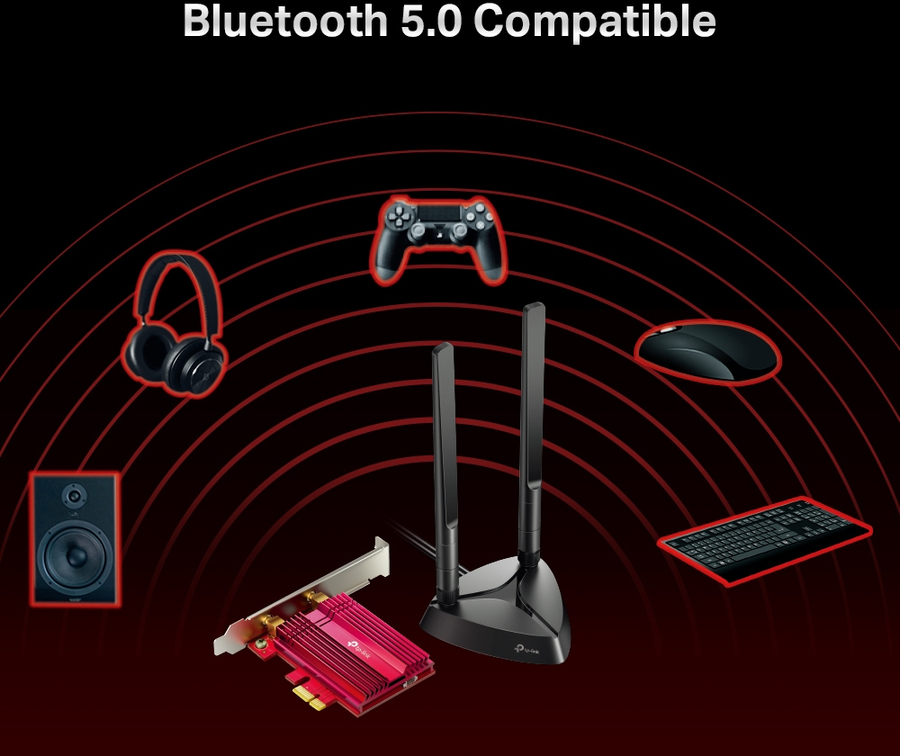

Bluetooth 5.0 Compatible
Archer TX3000E is compatible with the latest Bluetooth 5.0 Technology, achieving 2× faster speed and 4× broader coverage than Bluetooth 4.2. Connect as many devices as you want, including game controllers, headphones, and keyboards, to enjoy a smoother experience.
Advanced Security
The latest security enhancements—WPA3 provides more secure and individualized encryption in personal password safety, protecting your network from wireless hacking. Always keep your network safe while gaming online.

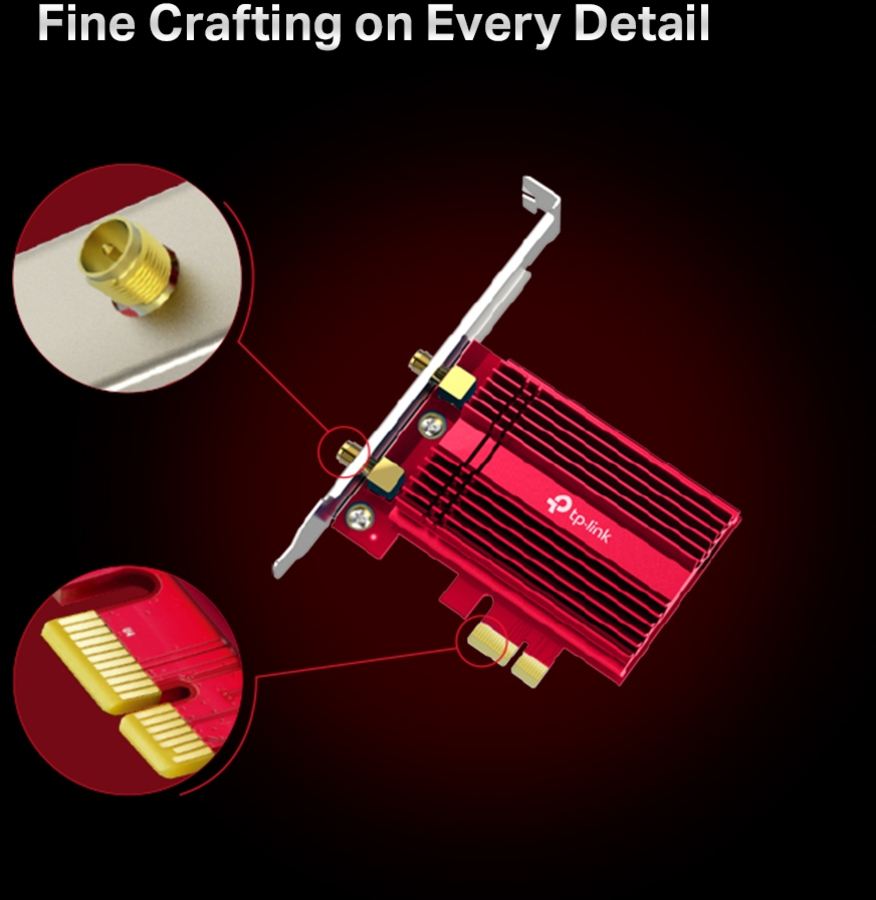

Fine Crafting for Ultimate Performance
Built with a specialized heatsink crafted to improve stability and reliability even in hot environments. Careful attention to every detail, such as gold plating on every contactor to resist oxidation, delivers a superior network experience. |
|
Ports & interfaces |
|
Connectivity technology |
Wireless |
|
Host interface |
PCI Express |
|
Interface |
WLAN / Bluetooth |
|
Network |
|
Maximum data transfer rate |
2402 Mbit/s |
|
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|
Wi-Fi |
Yes |
|
Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
|
Frequency range |
2.4 - 5 GHz |
|
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
|
WLAN data transfer rates supported |
54,300,574,1733,2402 Mbit/s |
|
Modulation |
16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM |
|
Security algorithms |
64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.0 |
|
Design |
|
Internal |
Yes |
|
Component for |
PC |
|
Product colour |
Black, Red |
|
Antenna |
Yes |
|
Antenna design |
External |
|
Transmitting power (CE) |
23 dBm |
|
Transmitting power (FCC) |
27 dBm |
|
Chipset |
Intel Wi-Fi 6 |
|
Receiver sensitivity |
5 GHz :
11ax HT160：-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm
11ac HT160：-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm
2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm |
|
Operating modes |
Infrastructure mode |
|
System requirements |
|
Windows operating systems supported |
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Sustainability |
|
Sustainability compliance |
Yes |
|
Sustainability certificates |
CE, Federal Communications Commission (FCC), RoHS |
|
Weight & dimensions |
|
Width |
95.2 mm |
|
Depth |
120.8 mm |
|
Height |
21.5 mm |
|
Packaging data |
|
Package width |
270 mm |
|
Package depth |
215 mm |
|
Package height |
47 mm |
|
Package weight |
480 g |
|

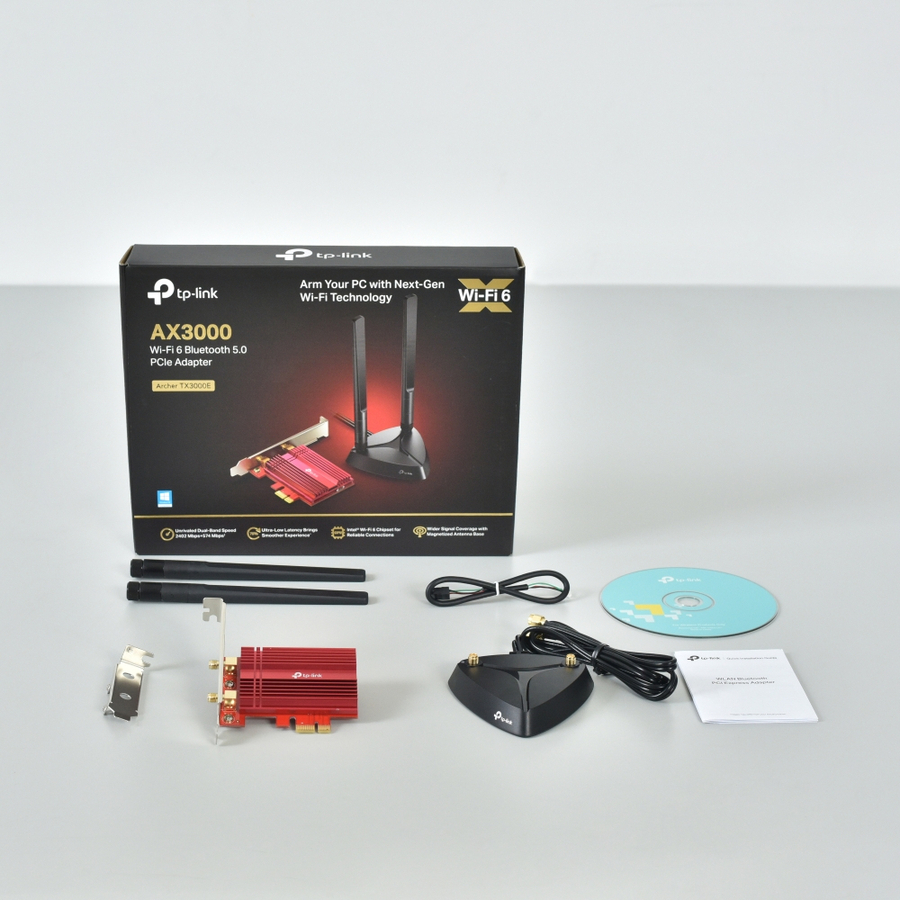

Packaging content |
|
Mounting brackets included |
Yes |
|
Resource CD |
Yes |
|
Bluetooth header cable |
Yes |
|
Quick installation guide |
Yes |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
