General Information |
|
Summary |

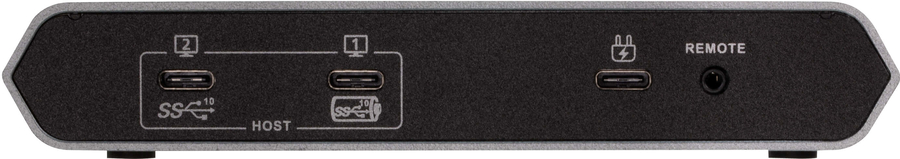

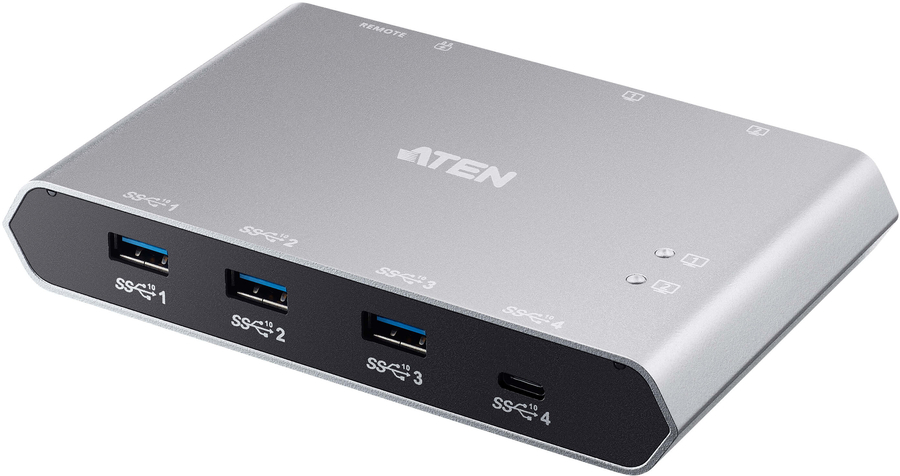

ATEN US3342 is a 4-port USB 3.2 Gen 2 peripheral sharing device that allows users to share data between four USB devices in two different USB-C enabled laptops. The US3342 is USB 3.2 Gen 2 compliant, which can support data transfer rate up to 10Gps, and also compatible with USB 3.1 Gen 1, USB 2.0 and USB1.1.
With the US3342, you can quickly and effortlessly switch computers by using a convenient remote port selector pushbutton with LED that indicates which computer is being active. It provides the power that matched to USB-C Windows or Mac laptops with PD Profile specifications of 5V, 9V, 15V, and 20V.
Featuring exclusive function by BEZEL X software, the US3342 allows two laptops to share files and data across two different platforms - Window and Mac, by dragging the mouse from one screen to another. The BEZEL X software makes it easier to control and transfer files in a fingertip.
The connecting cables are bundled to save the extra cost of purchasing more USB cables. The additional USB-C cable included in the US3342 package, which allows the users to connect it to the USB-C laptops for flexible installation. The US3342 is the most cost-effective solution for USB-C equipped laptops.
In conclusion, the US3342 with its compact and all-in-one design is an ideal solution for users that seeks to save desk space and keep the desk well-organized in an efficient manner. |
|
Ports & interfaces |
|
Number of computers controlled |
2 |
|
Keyboard port type |
USB |
|
Mouse port type |
USB |
|
Video port type |
USB |
|
USB hub |
Yes |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
3 |
|
DC-in jack |
Yes |
|
Design |
|
Product colour |
Silver |
|
Housing material |
Aluminium |
|
LED indicators |
Yes |
|
Display |
|
Built-in display |
No |
|
Sustainability |
|
Compliance certificates |
RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
90 mm |
|
Depth |
143 mm |
|
Height |
23.8 mm |
|
Weight |
360 g |
|
Packaging data |
|
Package width |
55 mm |
|
Package depth |
155 mm |
|
Package height |
223 mm |
|
Package weight |
548 g |
|
Logistics data |
|
Master (outer) case net weight |
3.6 kg |
|
Harmonized System (HS) code |
85176200 |
|
Master (outer) case width |
328 mm |
|
Master (outer) case length |
389 mm |
|
Master (outer) case height |
173 mm |
|
Master (outer) case gross weight |
5.97 kg |
|
Products per master (outer) case |
10 pc(s) |
