General Information |
|
Summary |
Delivering reliable, highly available iSCSI services

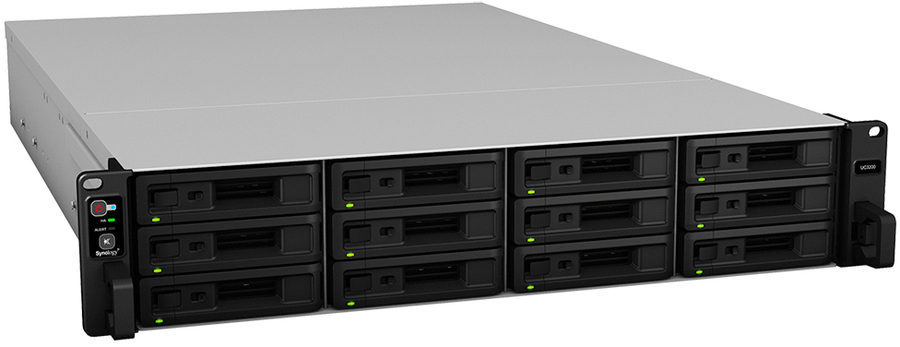

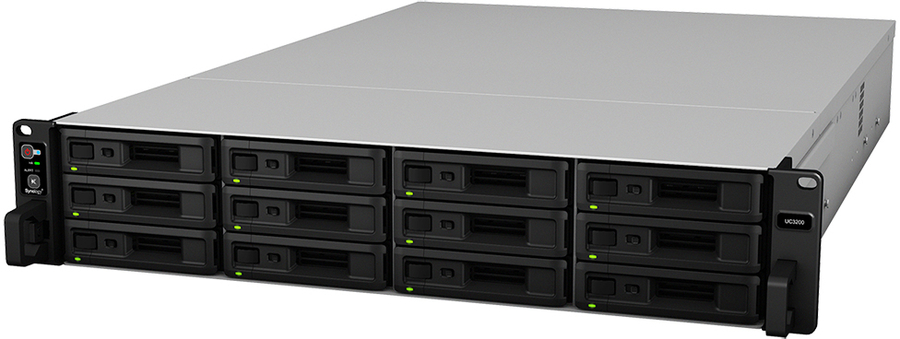

Realizing high-availability architecture in just one single chassis, the two controllers in Synology UC3200 work simultaneously and can automatically fail over to each other in the event of disaster, delivering services without any interruptions.

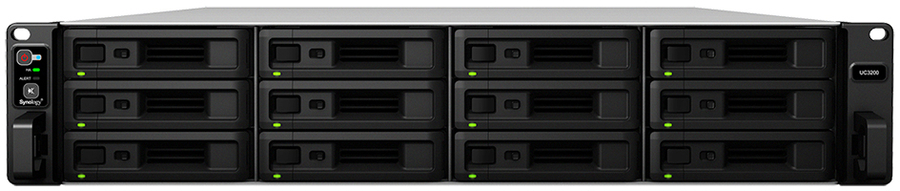

12 x 3.5”/2.5” HDD/SSD
High-performance SAS interface drive slots with maximum 576TB raw capacity. Supporting SED (Self Encrypting Drive) to encrypt all data to hard drives, UC3200 provides upmost data security at the hardware level.
Redundant power supply
Modularized and swappable 500W power supply prevents service downtime in the event of a power supply failure.
Active-active controller module
Dual controller modules work simultaneously to provide high performance and non-disruptive iSCSI services.
PCIe 3.0 slot
Further boost network bandwidth with optional 10GbE/25GbE network interface cards' expansion.

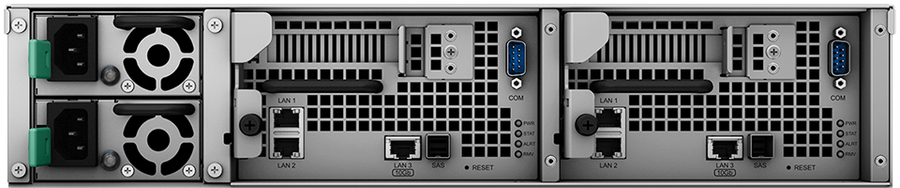

2 x 1GbE & 1 x 10GbE
Onboard RJ45 interfaces of 1GbE and 10GbE with the Link Aggregation support.
Mini-SAS HD port
Connect up to 2 x RXD1219sas for flexible plug-and-play volume expansion.
Processor
Armed with Intel® Xeon® D-1521 4-core 2.4 GHz processor burst up to 2.7 GHz, UC3200’s dual CPUs provide enterprise-class performance of 140,000 4K random write IOPS with low latency.
4 x DDR4 memory slots
8GB ECC UDIMM, expandable up to 64GB to boost system performance.
Fan
Redundant, modularized fans for easy maintenance and replacement, minimizing service downtime.
SATA DOM
The dedicated SATA DOM isolates the operating system from the regular data stored in hard drives.
Non-Transparent Bridge (NTB)
Connect two controller modules at a blazingly fast speed and instantly sync memory data between the controllers to prevent cached data loss when one controller is unavailable.
Works with mainstream virtualization systems
Optimized for virtualization environments.
- Integrated with VMware vSphere® 6.5, Microsoft Hyper-V®, and VAAI to offload storage operations and optimize computational efficiency.
- Windows Offloaded Data Transfer (ODX) is supported to speed up data transfer and migration rates.
- Turn Synology UC3200 into a block-based storage component with the support of OpenStack® Cinder.
- Compliance with iSCSI industry standard ALUA allows hosts to identify the optimized paths to increase data transfer performance and efficiency.
A system built exclusively for iSCSI
DSM UC, an operating system designed to ease the learning curve, allows you to manage the two controllers from one single portal. The built-in monitor applications display the status at a glance and send prompt notifications when important events occur, so that IT administrators can stay alert to potential problems and respond in the shortest time possible.
Disaster-proof your critical data
Snapshot Replication is put in place with the support of Btrfs file system, offering schedulable and near-instantaneous data protection. Supporting up to 4,096 system-wide snapshots for local volumes or offsite servers, UC3200 brings application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster. |
|
Storage |
|
Storage drives installed |
No |
|
Number of storage drives supported |
12 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
RAID support |
Yes |
|
Supported storage drive interfaces |
Serial Attached SCSI (SAS) |
|
Storage drive sizes supported |
2.5,3.5" |
|
Maximum supported storage capacity |
192 TB |
|
RAID levels |
0, 1, 5, 6, 10, F1, JBOD |
|
Hot-swap drive bays |
Yes |
|
Supported file systems |
BTRFS |
|
Processor |
|
Processor family |
Intel® Xeon® D |
|
Processor manufacturer |
Intel |
|
Processor model |
D-1521 |
|
Processor frequency |
2.4 GHz |
|
Processor boost frequency |
2.7 GHz |
|
Processor cores |
4 |
|
Processor threads |
8 |
|
Processor cache |
6 MB |
|
CPU configuration (max) |
1 |
|
PCI Express configurations |
1x16, 1x4, 1x8 |
|
PCI Express slots version |
2.0, 3.0 |
|
Processor code |
SR2DF |
|
Processor codename |
Broadwell |
|
Processor lithography |
14 nm |
|
Processor operating modes |
64-bit |
|
Processor package size |
37.5 x 37.5 mm |
|
Processor series |
Intel Xeon D-1500 |
|
Processor socket |
BGA 1667 |
|
Scalability |
1S |
|
Stepping |
V2 |
|
Thermal Design Power (TDP) |
45 W |
|
Maximum internal memory supported by processor |
128 GB |
|
Conflict-Free processor |
Yes |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
Maximum RAM supported |
64 GB |
|
Memory slots |
4 |
|
Memory form factor |
UDIMM |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
1000,10000 Mbit/s |
|
Ethernet LAN data rate supported (max) |
10000 Mbit/s |
|
Wi-Fi |
No |
|
iSCSI support |
Yes |
|
Supported network protocols |
iSCSI, Telnet, SSH, SNMP |
|
Link aggregation |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
3 |
|
USB port |
No |
|
PCI Express x8 (Gen 3.x) slots |
1 |
|
Design |
|
Chassis type |
Rack (2U) |
|
Cooling type |
Active |
|
Product colour |
Black, Grey |
|
Number of fans |
2 fan(s) |
|
Fan diameter |
6 cm |
|
LED indicators |
Power, Status |
|
Performance |
|
Type |
SAN |
|
Device class |
Small & Medium Business |
|
Backup function |
Yes |
|
Backup features |
iSCSI LUN |
|
Multilingual support |
Yes |
|
Noise level |
51.3 dB |
|
Snapshot |
Yes |
|
Web-based management |
Yes |
|
Reset button |
Yes |
|
On/off switch |
Yes |
|
Browser supported |
Chrome, Firefox, Edge,Internet Explorer 10+, Safari 10+, Chrome |
|
Software |
|
Linux operating systems supported |
Yes |
|
Server operating systems supported |
Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016 |
|
Other operating systems supported |
Solaris 10, Solaris 11, VMware ESX/ESXi 5.0, VMware ESX/ESXi 5.1, VMware ESX/ESXi 6.0, VMware ESX/ESXi 6.5 |
|
Power |
|
Power supply location |
Built-in |
|
Power supply unit (PSU) capacity |
500 W |
|
Number of power supply units |
1 |
|
Redundant power supply (RPS) support |
Yes |
|
Power consumption (typical) |
417.48 W |
|
Power consumption (HDD standby) |
274.38 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width |
482 mm |
|
Depth |
724 mm |
|
Height |
88 mm |
|
Weight |
19.7 kg |
|
Packaging content |
|
Cables included |
AC |
|
Quick installation guide |
Yes |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Processor special features |
|
Embedded options available |
No |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Execute Disable Bit |
Yes |
|
Idle States |
Yes |
|
Intel 64 |
Yes |
|
Intel Enhanced Halt State |
Yes |
|
Intel Secure Key Technology version |
1.00 |
|
Intel Trusted Execution Technology |
Yes |
|
Intel TSX-NI |
Yes |
|
Intel TSX-NI version |
1.00 |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
|
Intel® OS Guard |
Yes |
|
Intel® Secure Key |
Yes |
|
Intel® Turbo Boost Technology |
2.0 |
|
Maximum number of PCI Express lanes |
32 |
|
Thermal Monitoring Technologies |
Yes |
|
UART |
Yes |
|
Memory types supported by processor |
DDR3-SDRAM, DDR4-SDRAM |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Operating altitude |
0 - 5000 m |
|
Certificates |
|
Certification |
EAC
VCCI
CCC
RCM
KC
FCC
CE
BSMI |
|
Logistics data |
|
Harmonized System (HS) code |
84714100 |
|
Other features |
|
Processor ARK ID |
91202 |
