General Information |
|
Summary |
On-the-fly SAS expansion up to 12 additional bays

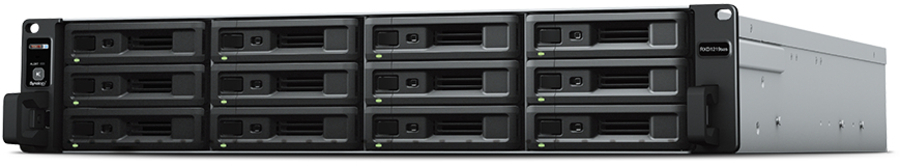

RXD1219sas is a 2U expansion unit designed to work automatically when connected, providing an effortless storage space upgrade solution for your Synology servers1. You can add up to 12 additional 2.5" / 3.5" SAS drive bays on the fly when connected directly with a mini-SAS HD cable.
Designed for maximum reliability
The redundant power supplies ensure maximum service uptime. On the rare occasion when a failure occurs, you can instantly replace the hot-swappable drive trays, and with the key system components modularized, SAS modules and system fans can also be replaced with ease.
High-performance data transmission
The mini-SAS HD provides high bandwidth connectivity to achieve maximum throughput during data transfer between your Synology server and RXD1219sas. It allows the drives in the connected RXD1219sas to operate as if they are the internal drives of the Synology server with no data latency. |
|
Storage |
|
Storage drives installed |
No |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
Number of storage drives supported |
12 |
|
Maximum supported storage capacity |
192 TB |
|
Supported storage drive interfaces |
SAS, SAS-2, SAS-3 |
|
Storage drive sizes supported |
2.5,3.5" |
|
Hot-swap drive bays |
Yes |
|
Ports & interfaces |
|
SAS host port |
Yes |
|
Number of SAS host ports |
4 |
|
Design |
|
Product colour |
Black, Grey |
|
Number of fans |
4 fan(s) |
|
Noise level |
60.9 dB |
|
Fan diameter |
6 cm |
|
Certification |
FCC
CE
BSMI
EAC
VCCI
RCM
KC |
|
Performance |
|
Device class |
Small & Medium Business |
|
Power |
|
Power supply unit (PSU) capacity |
500 W |
|
Number of power supply units |
1 |
|
Power consumption (typical) |
299.79 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width |
482 mm |
|
Depth |
724 mm |
|
Height |
88 mm |
|
Weight |
18.2 kg |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Logistics data |
|
Harmonized System (HS) code |
84717020 |
|
Packaging content |
|
Cables included |
AC |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Storage relative humidity (H-H) |
5 - 95% |
