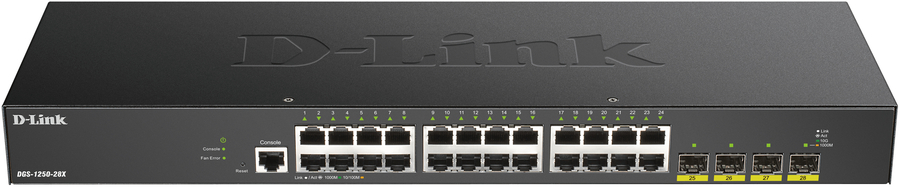

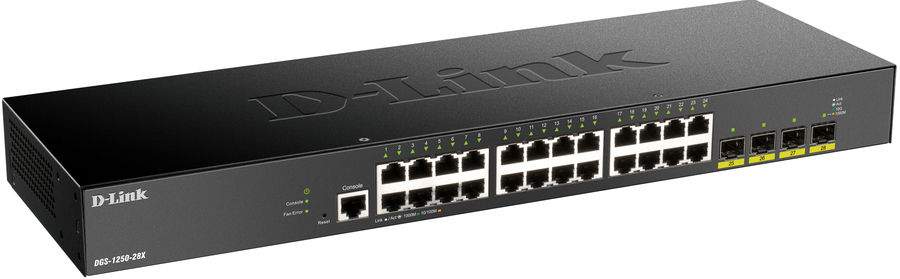

D-Link 28-Port 10-Gigabit Smart Managed Switch
|
|
Price: $353.00
Manufacturer:
D-Link
DGS-1250-28X, 24x 10/100/1000BASE-T, 4x 10G SFP+, 128 Gbps, 95.24 Mpps, 100-240V AC, VLAN, QoS, L3, ACL, 440x140x44 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
54419275
|
DGS-1250-28X
|
790069448164 |
Active
|
Details
|
General Information |
|
Summary |
Power & Value
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.
The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers – enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Extensive Management and Advanced Features
The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.
Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
ARP inspection |
Yes |
|
Configuring Location Settings (CLI) |
Yes |
|
System event log |
Yes |
|
MIB support |
RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620, |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
24 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
SFP+ module slots quantity |
4 |
|
Console port |
RJ-45 |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
10G support |
Yes |
|
Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
|
Cable types supported |
Cat5, Cat5e |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Spanning tree protocol |
Yes |
|
Head-of-line (HOL) blocking |
Yes |
|
VLAN support |
Yes |
|
Virtual LAN features |
Voice VLAN |
|
Number of VLANs |
4094 |
|
Optical fiber |
|
Fiber ethernet cabling technology |
100BASE-FX, 1000BASE-LHX, 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX |
|
Data transmission |
|
MAC address table |
16000 entries |
|
Switching capacity |
128 Gbit/s |
|
Forwarding rate |
95.24 Mpps |
|
Store-and-forward |
Yes |
|
Static route |
Yes |
|
Number of static routes |
124 |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
12000 |
|
Packet buffer memory |
12 MB |
|
Security |
|
DHCP features |
DHCP client, DHCP server, DHCP snooping |
|
Access Control List (ACL) |
Yes |
|
Access Control List (ACL) rules |
768 |
|
IGMP snooping |
Yes |
|
Security algorithms |
EAP, MD5, PEAP, SSH, SSL/TLS, TTLS |
|
Loop protection |
Yes |
|
IP-MAC-Port binding |
Yes |
|
Queue scheduling algorithms |
Weighted Round Robin (WRR) |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Black |
|
LED indicators |
Activity, Link, Power, Speed |
|
Electromagnetic compatibility |
CE A, VCCI A, FCC A, IC, BSMI |
|
Performance |
|
Memory type |
DDR3-SDRAM |
|
Internal memory |
2048 MB |
|
Flash memory |
64 MB |
|
Noise level |
47.6 dB |
|
Firmware upgradeable |
Yes |
|
Mean time between failures (MTBF) |
743482.45 h |
|
Power |
|
Power supply included |
Yes |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Power consumption (max) |
30.6 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Heat dissipation |
104.346 BTU/h |
|
Weight & dimensions |
|
Width |
440 mm |
|
Depth |
140 mm |
|
Height |
44 mm |
|
Weight |
3.86 kg |
|
Packaging data |
|
Package width |
282 mm |
|
Package depth |
563 mm |
|
Package height |
89 mm |
|
Package weight |
2.97 kg |
|
Technical details |
|
Shipping (inner) case height |
31.8 cm |
|
Shipping (inner) case width |
47.8 cm |
|
Shipping (inner) case length |
58.5 cm |
|
Shipping (inner) case net weight |
11.6 kg |
|
Products per shipping (inner) case |
5 pc(s) |
|
Pallet gross weight (air) |
407.6 kg |
|
Master (outer) cases per pallet (air) |
24 pc(s) |
|
Products per pallet (air) |
120 pc(s) |
|
Pallet gross length |
110 cm |
|
Pallet gross width |
120 cm |
|
Pallet height (air) |
2.04 m |
|
Pallet gross weight (sea) |
407.6 kg |
|
Master (outer) cases per pallet (sea) |
24 pc(s) |
|
Products per pallet (sea) |
120 pc(s) |
|
Pallet height (sea) |
2.04 m |
|
Shipping (inner) case gross weight |
16.2 kg |
|
Certificates |
|
Certification |
CB, UL, BSMI, CCC |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
