General Information |
|
Summary |

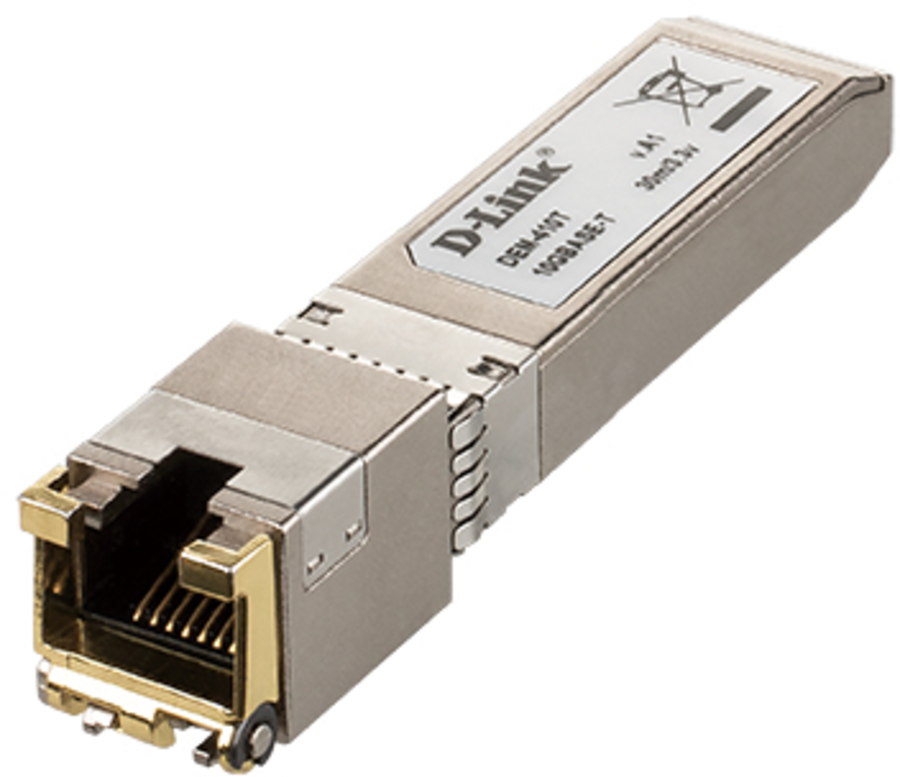

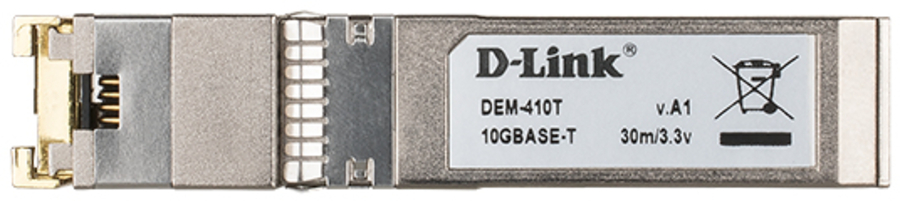

The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6a UTP structured cabling for network connectivity. It is a power-optimised solution for lengths up to 30m, engineered to deliver a minimum power saving of at least 0.5W per port compared to an equivalent embedded 10GBASE-T RJ45 for the same length (Cat 6a, up to 30m). These power savings can add-up in ToR, mid-row and end-of-row switch connectivity.
It’s the alternative compared with standard SFP+ SR/LR fibre optics, which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks. |
|
Performance |
|
SFP transceiver type |
Copper |
|
Maximum data transfer rate |
10000 Mbit/s |
|
Interface type |
SFP+ |
|
SFP transceiver standard |
T |
|
Maximum transfer distance |
30 m |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
10 Gigabit Ethernet |
|
Networking standards |
IEEE 802.3ab, IEEE 802.3an |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Fiber ethernet cabling technology |
10GBASE, 1000BASE |
|
Features |
|
Product colour |
Gold, Silver |
|
Mean time between failures (MTBF) |
217186 h |
|
Power |
|
Input voltage |
3.3 V |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Safety |
LVD |
|
Certification |
CE, FCC, VCCI |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 60 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
13.7 mm |
|
Depth |
68 mm |
|
Height |
8.5 mm |
|
Weight |
20 g |
|
Packaging data |
|
Package width |
74 mm |
|
Package depth |
131 mm |
|
Package height |
49 mm |
|
Package weight |
64 g |
|
Logistics data |
|
Shipping (inner) case length |
36 cm |
|
Shipping (inner) case width |
26 cm |
|
Shipping (inner) case height |
31 cm |
|
Shipping (inner) case net weight |
3.2 kg |
|
Products per shipping (inner) case |
50 pc(s) |
|
Pallet gross weight (air) |
272 kg |
|
Master (outer) cases per pallet (air) |
60 pc(s) |
|
Products per pallet (air) |
3000 pc(s) |
|
Pallet gross length |
102 cm |
|
Pallet gross width |
122 cm |
|
Pallet height (air) |
199 cm |
|
Pallet gross weight (sea) |
272 kg |
|
Master (outer) cases per pallet (sea) |
60 pc(s) |
|
Products per pallet (sea) |
3000 pc(s) |
|
Pallet height (sea) |
199 cm |
|
Shipping (inner) case gross weight |
4.2 kg |
|
Harmonized System (HS) code |
85369010 |
