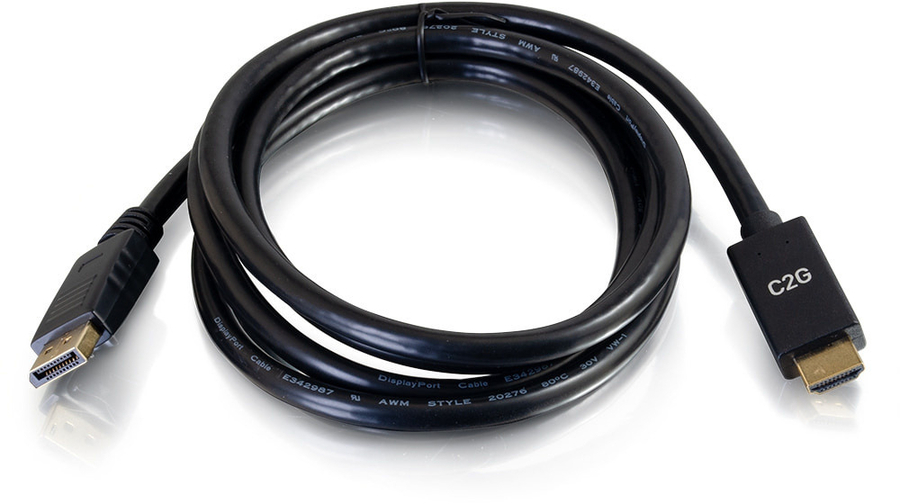

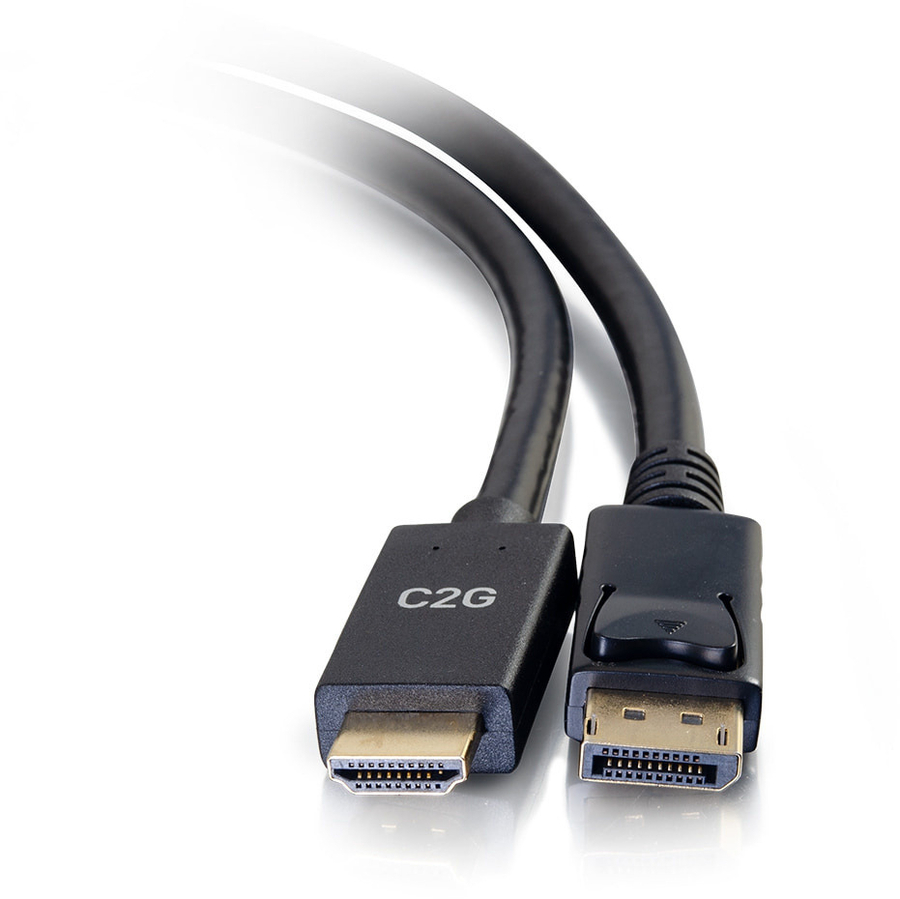

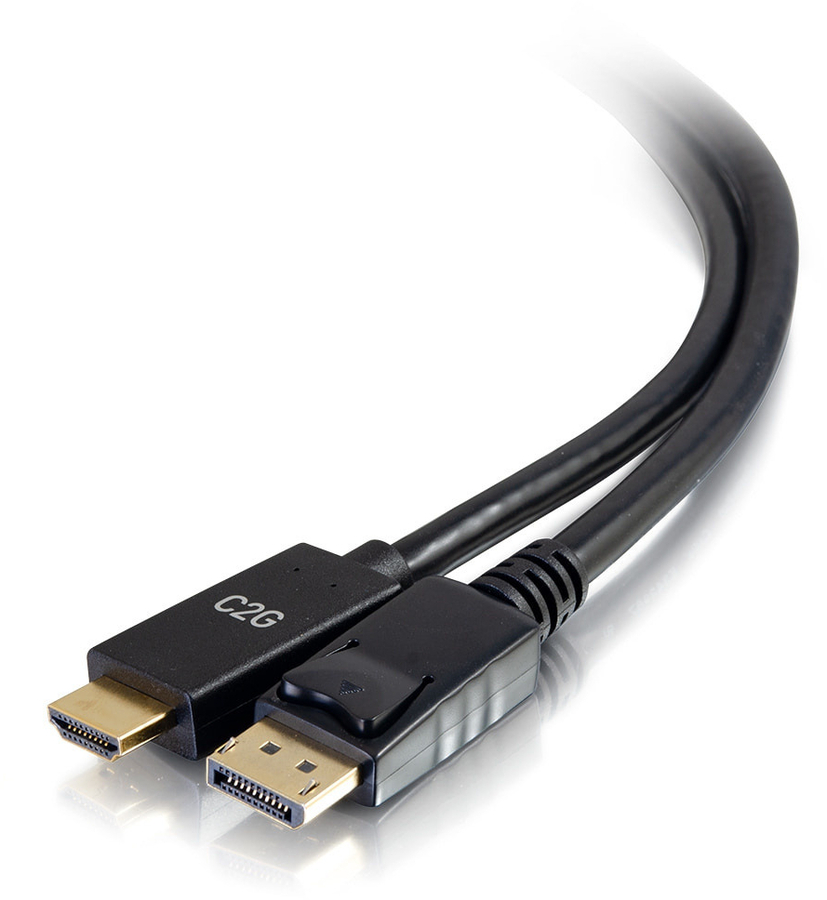

C2G 6-Foot DisplayPort Male to HDMI Male Passive Adapter Cable 4K 30Hz
|
|
Price: $46.00
Manufacturer:
C2G
6ft (1.8m) DisplayPort™ Male to HDMI™ Male Passive Adapter Cable - 4K 30Hz
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
54488789
|
54433
|
757120544333 |
Active
|
Details
|
General Information |
|
Summary |
Additional Technical Specifications
Signal Specifications
Input Video: DisplayPort 1.2a
Output Video: HDMI 1.4b
Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 1.62Gbps/2.7Gbps
Resolution: Up to 4Kx2K@30HZ
Supports Multiple Color Format: RGB 6/8/10/12-bit per component(bpc) and YCbCr 4:4:4, YCbCr 4:2:2, 8/10/12bpc
Supports 10/12-bit deep color 1080p up to 2.25Gbps
3D Video Formats: (720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24Hz, 1080P@50/59.94/60Hz) up to 2.97Gbps
Support up to 8 channel LPCM, compressed audio (AC-3,DTS) and HBR audio format
Electrical Specifications
Power Consumption (Max): 1W
External Power Supply: No external power needed
Physical Specifications
Operating Temperature: 0°C to +45°C
Operating Humidity: 10% to 85% RH (no condensation)
Storage Temperature: -10°C to +80°C
Storage Humidity: 5% to 90% RH (no condensation)
Physical Characteristics

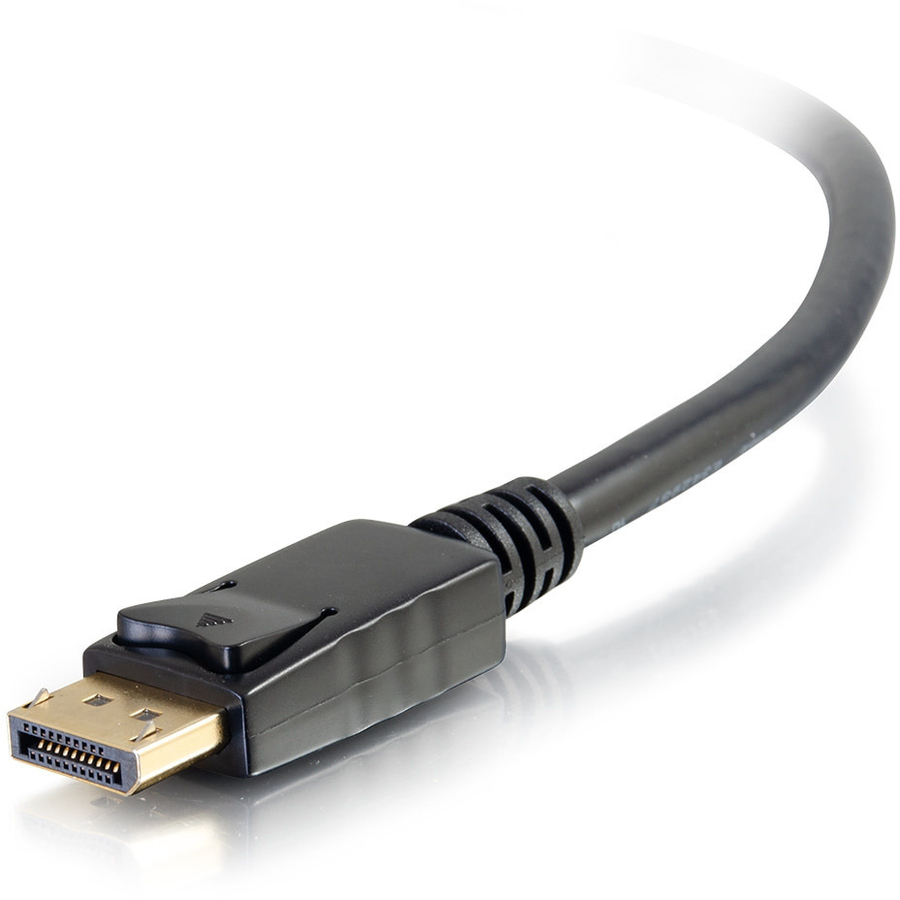

Input: DisplayPort Male 20pin

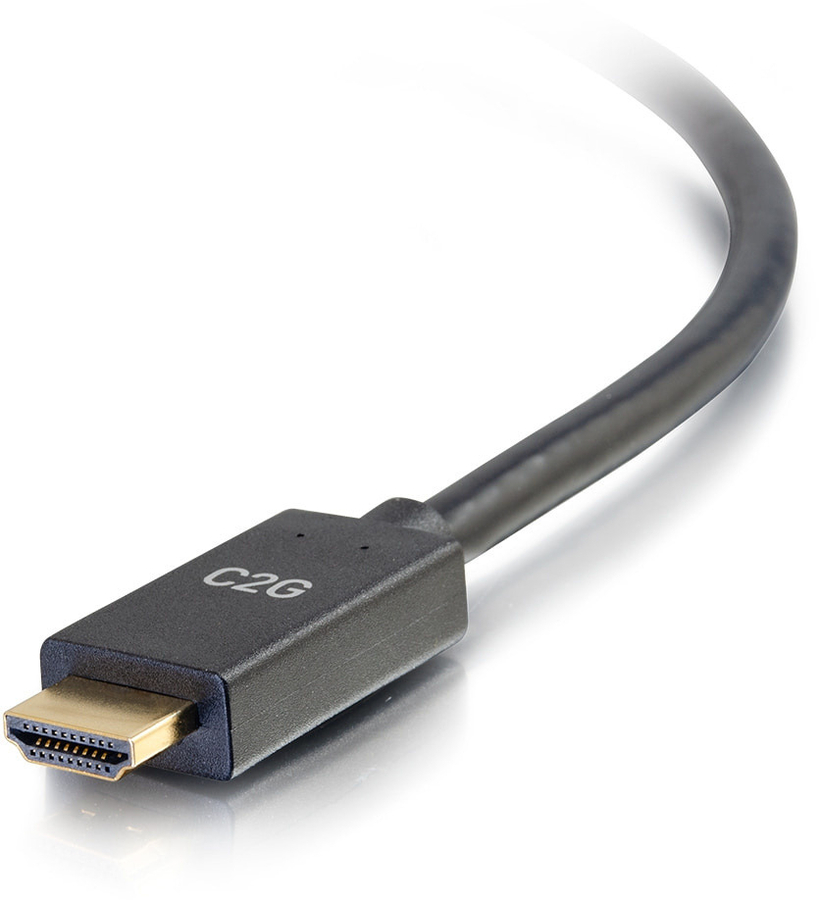

Output: HDMI Male Type A 19pin
Dimensions: Cable Length: 1830±30mm, DisplayPort Male Connector Length: 10.68mm, HDMI Male Connector Length: 9.2±0.3mm
Regulatory Approvals: FCC, CE |
|
Features |
|
Cable length |
1.83 m |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Product colour |
Black |
|
3D |
Yes |
|
Maximum resolution |
3840 x 2160 pixels |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Storage temperature (T-T) |
-10 - 80 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Certificates |
|
Compliance certificates |
Federal Communications Commission (FCC) |
|
Certification |
FCC |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package weight |
12.7 kg |
|
