General Information |
|
Summary |

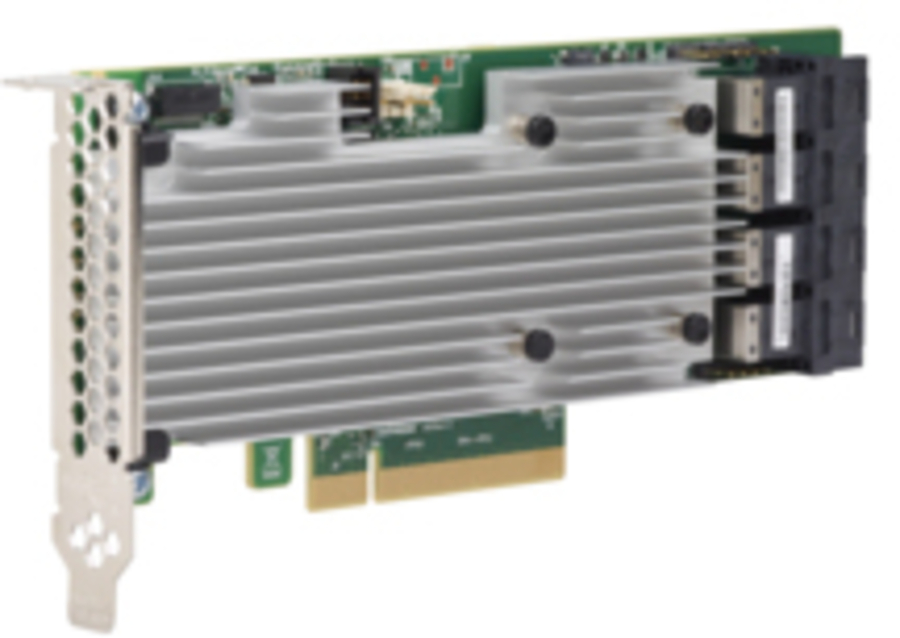

Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9361-16i 12Gb/s RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications. |
|
Ports & interfaces |
|
Supported storage drive interfaces |
SAS, Serial ATA |
|
Host interface |
PCI Express x8 |
|
Internal SATA ports quantity |
16 |
|
Performance |
|
RAID levels |
0, 1, 5, 6, 10, 60 |
|
RAID Level Migration |
Yes |
|
Data transfer rate |
12 Gbit/s |
|
SSD support |
Yes |
|
Internal memory |
1024 MB |
|
Internal memory type |
DDR3 |
|
Memory clock speed |
1866 MHz |
|
Logical block addressing (LBA) support |
64 bit |
|
LED indicators |
Yes |
|
S.M.A.R.T. support |
Yes |
|
Online Capacity Expansion |
Yes |
|
Mean time between failures (MTBF) |
2500000 h |
|
Certification |
USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438) ; Japan (VCCI V-3);
Australia/New Zealand (AS/NZS CISPR 22);Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024);
Safety: EN/IEC/UL 60950; RoHS; WEEE |
|
Power |
|
Voltage |
12 V |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Weight & dimensions |
|
Width |
68.9 mm |
|
Depth |
155.7 mm |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Other features |
|
PCI Card form factor |
Full-height (low-profile) |
|
Other operating systems supported |
Yes |
