General Information |
|
Summary |

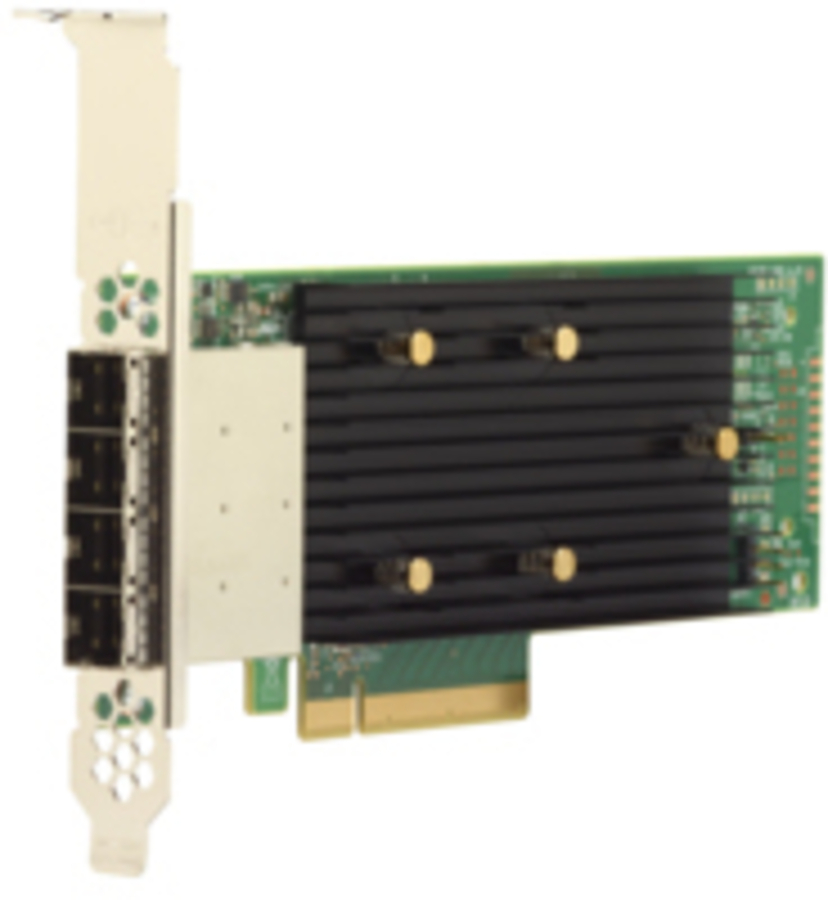

Designed for large-scale external storage enclosures, the 9400-16e Tri-Mode Storage Adapter is ideal for increased connectivity and maximum performance for data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9400-16e adapter delivers the performance and scalability needed by critical applications. |
|
Ports & interfaces |
|
Host interface |
PCIe |
|
Output interface |
SAS, SATA |
|
Expansion card form factor |
Low-profile |
|
Expansion card standard |
PCIe 3.1 |
|
External mini-SAS HD ports |
4 |
|
Design |
|
Internal |
Yes |
|
Cooling type |
Passive |
|
Mean time between failures (MTBF) |
4500000 h |
|
Certification |
CISPR 22, ICES -003, Class B, EN55022, EN55024, VCCI V-3, RRA no 2013-24, RRA no 2013-25, EN60950, CNS 13438, FCC 47 CFR part 15 Subpart B, class B, WEEE |
|
Features |
|
Data transfer rate (max) |
12 Gbit/s |
|
Power |
|
Power consumption (typical) |
11.18 W |
|
Operational conditions |
|
Operating temperature (T-T) |
10 - 55 °C |
|
Storage temperature (T-T) |
-45 - 105 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Other operating systems supported |
VMware ESX/ESXi 4.0 U4, VMware ESX/ESXi 4.1 U2, VMware ESX/ESXi 5.0, VMware ESX/ESXi 5.0 U1, VMware ESX/ESXi 5.1, VMware vSphere ESXi |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Weight & dimensions |
|
Width |
167.7 mm |
|
Depth |
68.9 mm |
|
Packaging data |
|
Quantity |
1 |
|
Mounting brackets included |
Yes |
|
Manual |
Yes |
|
User guide |
Yes |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
