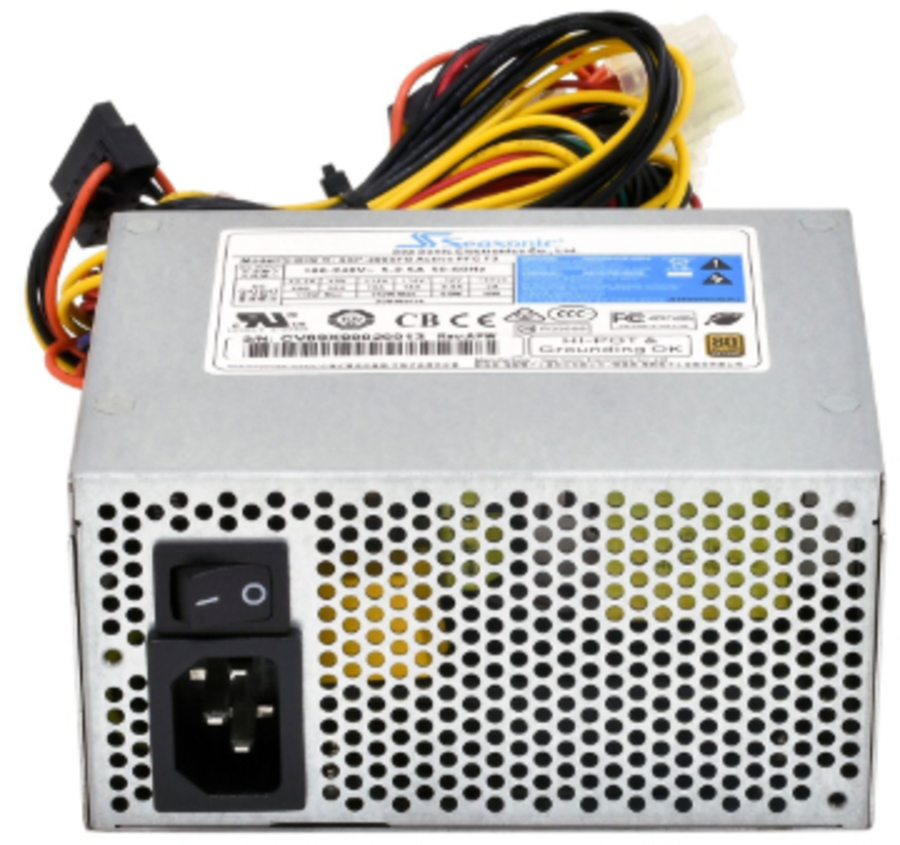

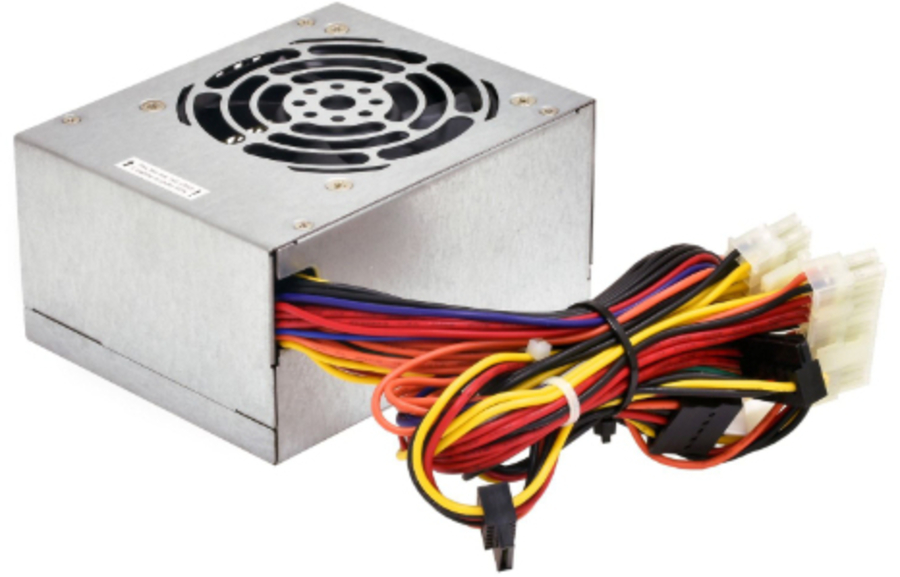

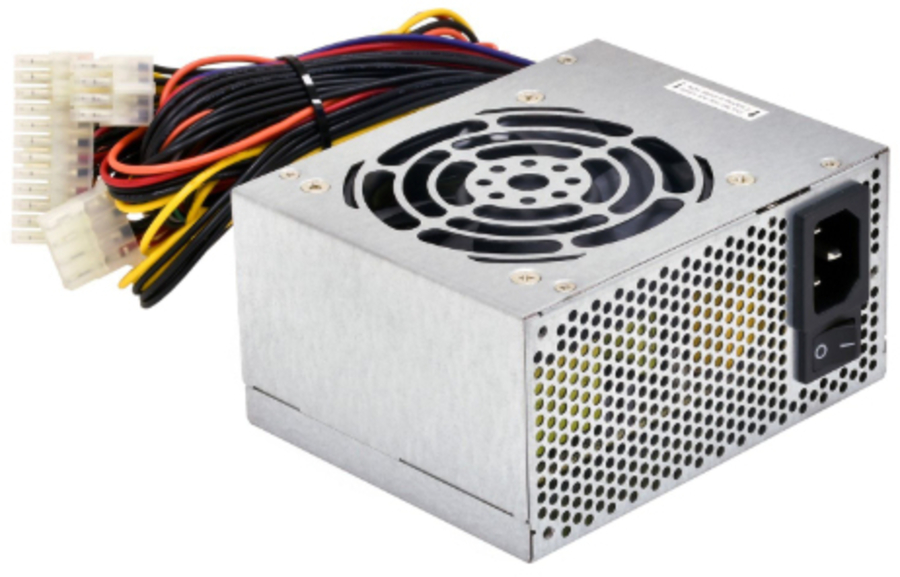

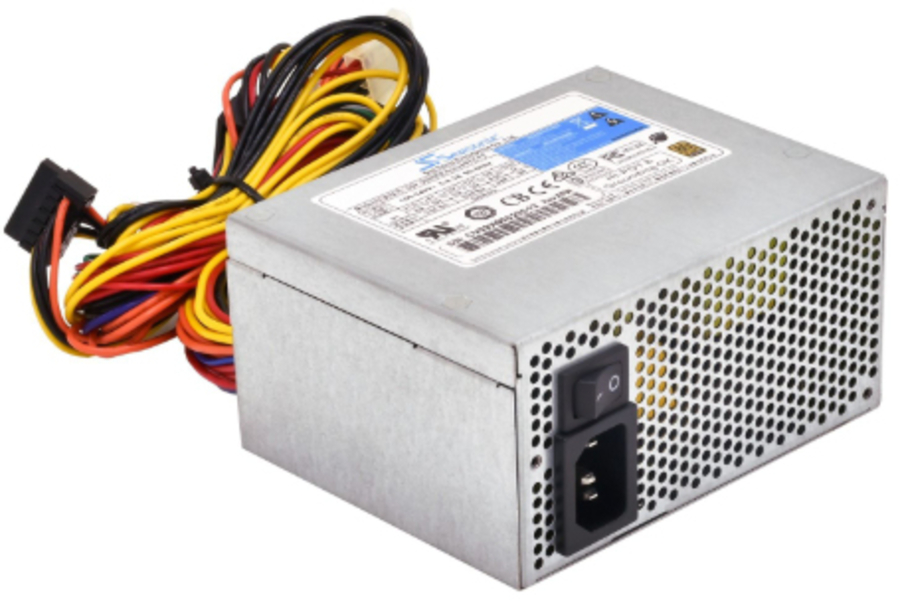

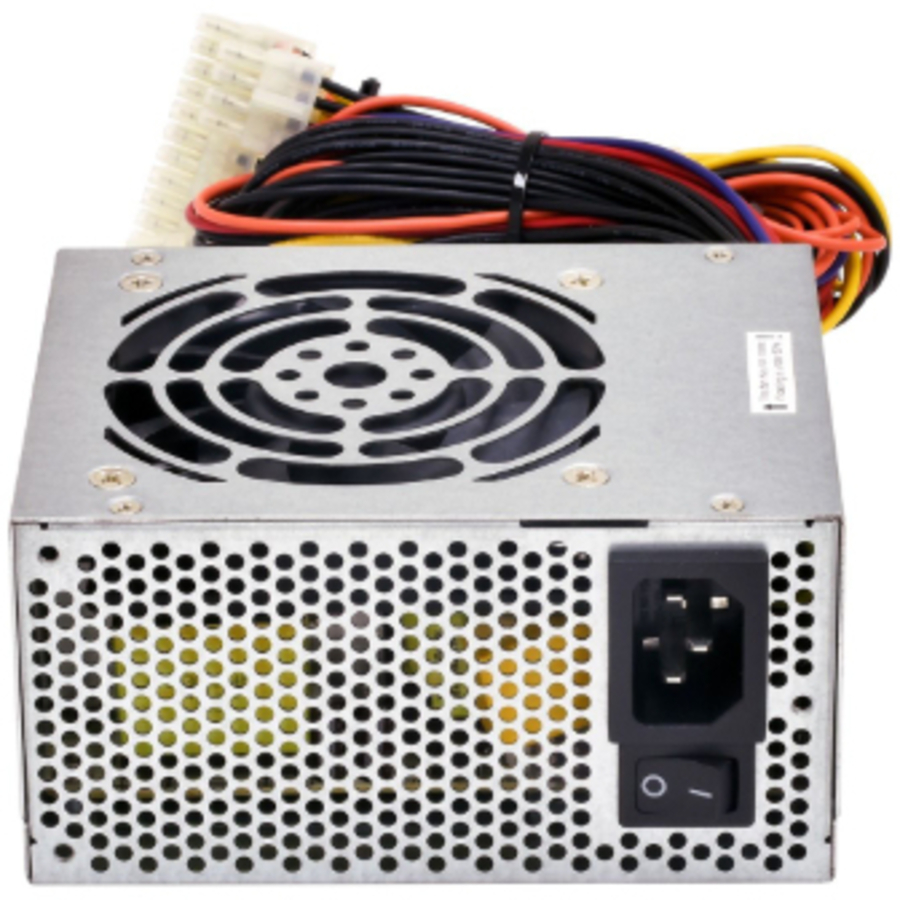

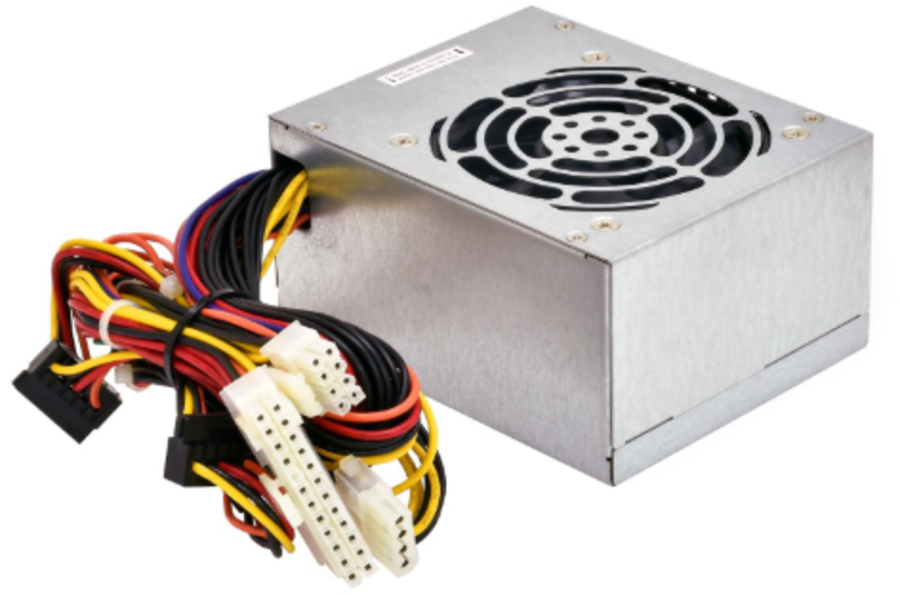

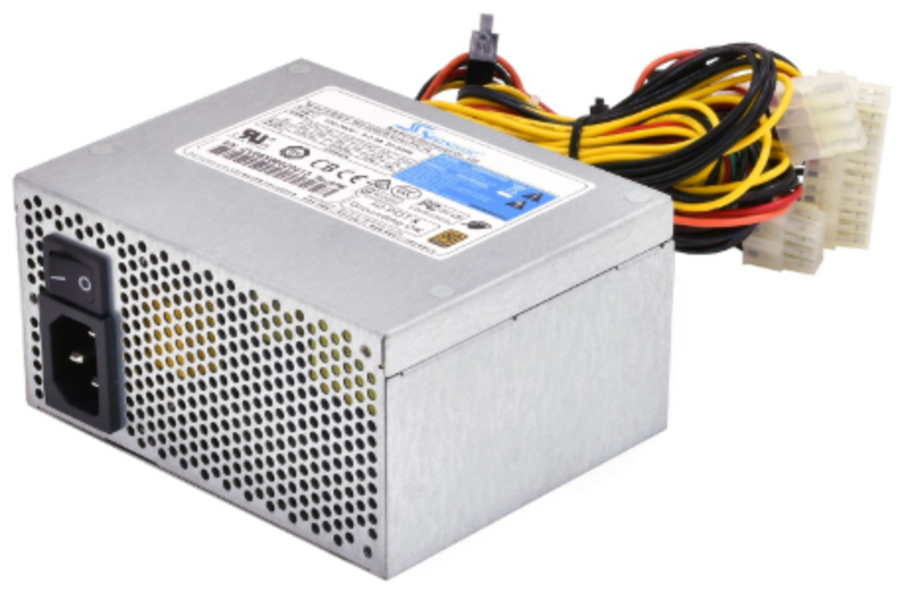

SeaSonic SSP-300SFB 300 Watt 80 PLUS Bronze SFX 12 V v.2.31 Power Supply w/ Active PFC F3
|
|
Price: $103.00
Manufacturer:
SeaSonic
810 Plus Bronze, 300W, 100 - 240V, 100 x 125 x 63.5mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
54547447
|
SSP-300SFB
|
- |
Active
|
Details
|
General Information |
|
Summary |
This industrial power supply is SFX 12 V v.2.31 compliant and offers important protection features for safe operations. With its 80 PLUS® Gold rating, it can achieve up to 85 % efficiency at 115 V AC at 50 % load. This is the ideal solution for both businesses and consumers who are looking for a high quality and efficient SFX Power Supply. |
|
Power |
|
Total power |
300 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
47 - 63 Hz |
|
Combined power (+3.3V) |
110 W |
|
Combined power (+12V) |
252 W |
|
Combined power (+5V) |
10 W |
|
Combined power (-12V) |
9.6 W |
|
Combined power (+5Vsb) |
10 W |
|
Max output current (+3.3V) |
14 A |
|
Max output current (+12V) |
18 A |
|
Max output current (+12V1) |
18 A |
|
Max output current (+5V) |
17 A |
|
Max output current (-12V) |
0.8 A |
|
Max output current (+5Vsb) |
2 A |
|
Efficiency |
95% |
|
Ports & interfaces |
|
Motherboard power connector |
20+4 pin ATX |
|
Cabling type |
Non-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Bronze |
|
Mean time between failures (MTBF) |
100000 h |
|
Design |
|
Product colour |
Stainless steel |
|
Cooling type |
Active |
|
On/off switch |
Yes |
|
Certificates |
|
Certification |
CB, cUL, TUV, CCC, BSMI, CE, FCC, RCM |
|
Other features |
|
Mounting type |
Rack mounting |
|
