General Information |
|
Summary |

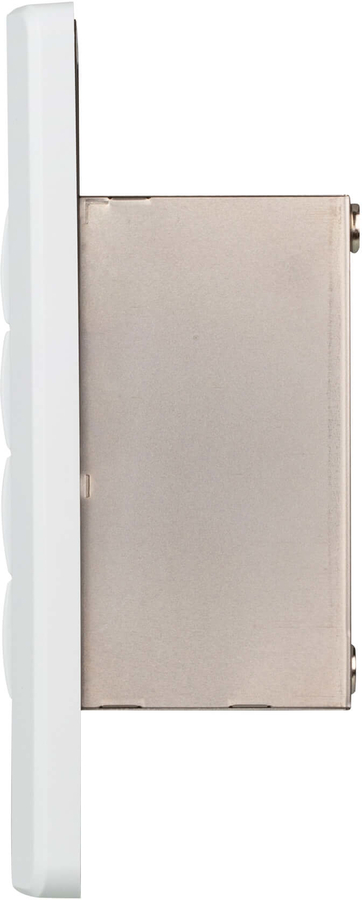

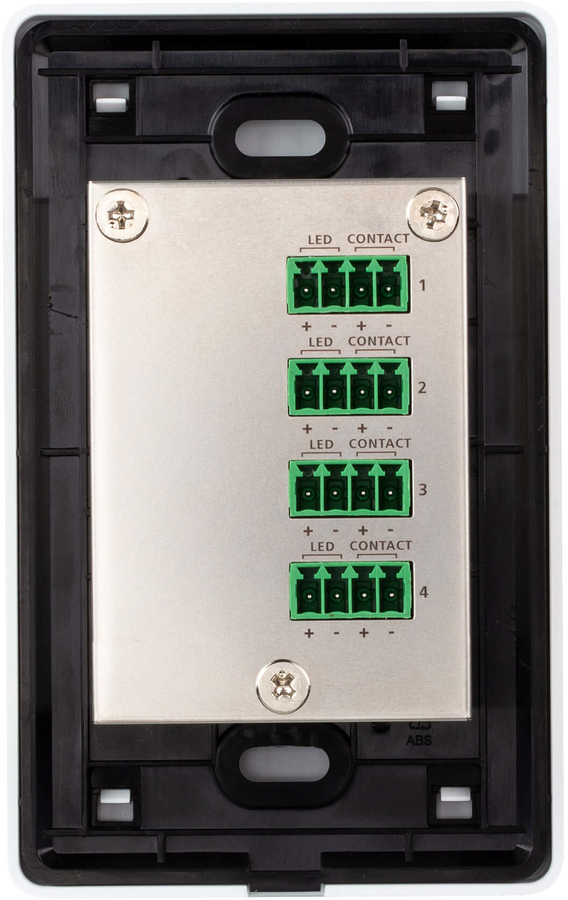

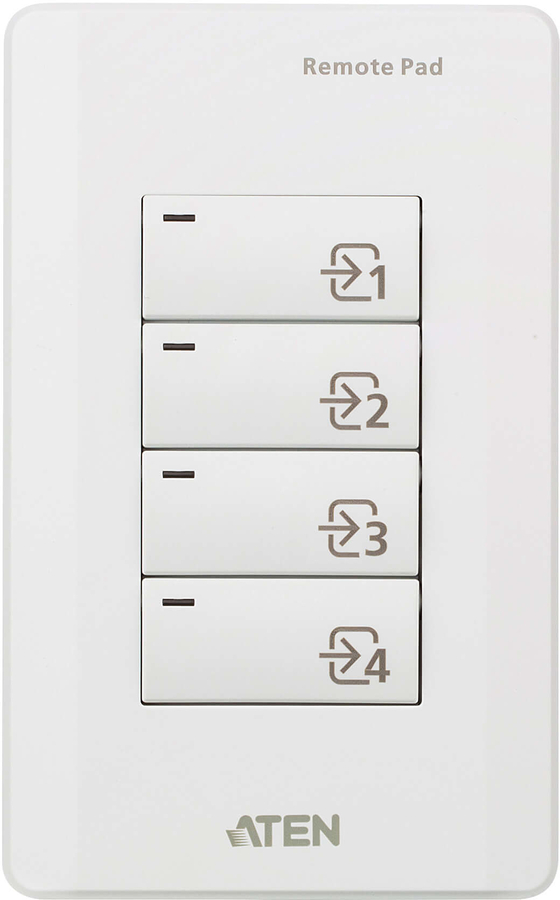

The VPK104 is a 4-button contact closure remote pad designed for use with VP1420/VP1421 Presentation Matrix Switch. By connecting the contact closure ports between the remote pad and a presentation switch, the VPK104 provides a convenient interface to switch the input sources for a video presentation switch from a wall-mounted faceplate. The VPK104 is an easy and affordable solution, perfect to serve as the control interface in a meeting room, class room, or lecture room. |
|
Features |
|
Product type |
Remote control |
|
Product colour |
White |
|
LED indicators |
Yes |
|
Compatible products |
Aten VP1420/VP1421 |
|
Housing material |
Plastic |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Weight & dimensions |
|
Width |
116.3 mm |
|
Depth |
70.6 mm |
|
Height |
47.8 mm |
|
Weight |
140 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Storage relative humidity (H-H) |
0 - 80% |
|
Logistics data |
|
Products per master (outer) case |
5 pc(s) |
|
Master (outer) case gross weight |
1.8 kg |
|
Master (outer) case length |
325 mm |
|
Master (outer) case width |
250 mm |
|
Master (outer) case height |
175 mm |
|
Master (outer) case net weight |
700 g |
|
Harmonized System (HS) code |
85299097 |
|
Packaging data |
|
Package width |
59 mm |
|
Package depth |
239 mm |
|
Package height |
160 mm |
|
Package weight |
290 g |
|
Packaging content |
|
Quantity |
1 |
|
User guide |
Yes |
