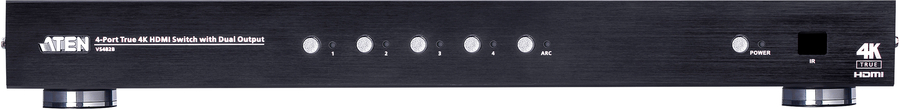

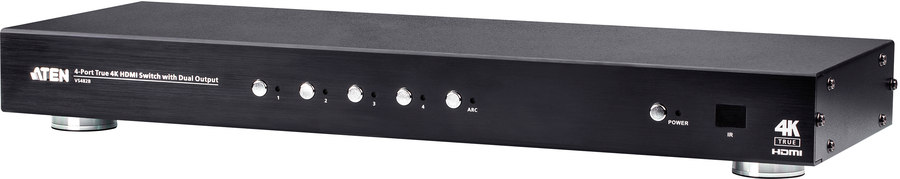

Aten 4-Port True 4K HDMI Switch with Dual Output
|
|
Regularly: $394.00
On Sale: $378.24
Sale Ends:
May 26th, 2024
Manufacturer:
Aten
4-Port True 4K HDMI Switch with Dual Output
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
54636427
|
VS482B
|
- |
Active
|
Details
|
General Information |
|
Summary |
The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch’s Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.
Furthermore, the VS482B offers switching methods between HDMI sources by front panel pushbuttons, IR remote control and RS-232 commands, enabling users to effortlessly select desired input. Equipped with EDID Expert™, the VS482B benefits users with optimum EDID settings for smooth power-up and highest-quality display across different screens. Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more. |
|

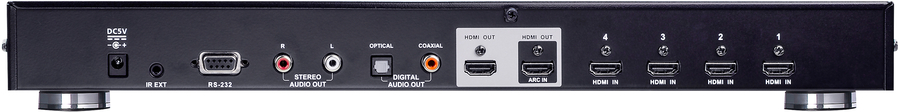

Ports & interfaces |
|
Video port type |
HDMI |
|
HDMI ports quantity |
6 |
|
HDMI in |
4 |
|
Number of HDMI outputs |
2 |
|
RS-232 ports |
1 |
|
DC-in jack |
Yes |
|
Features |
|
Material |
Metal |
|
Product colour |
Black |
|
HDCP |
Yes |
|
Maximum refresh rate |
60 Hz |
|
Maximum operating distance |
5 m |
|
Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
|
Maximum resolution |
4096 x 2160 pixels |
|
HD type |
4K Ultra HD |
|
Input impedance |
100 Ω |
|
Output impedance |
100 Ω |
|
Weight & dimensions |
|
Width |
158.8 mm |
|
Depth |
437.2 mm |
|
Height |
440 mm |
|
Weight |
21.6 kg |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
