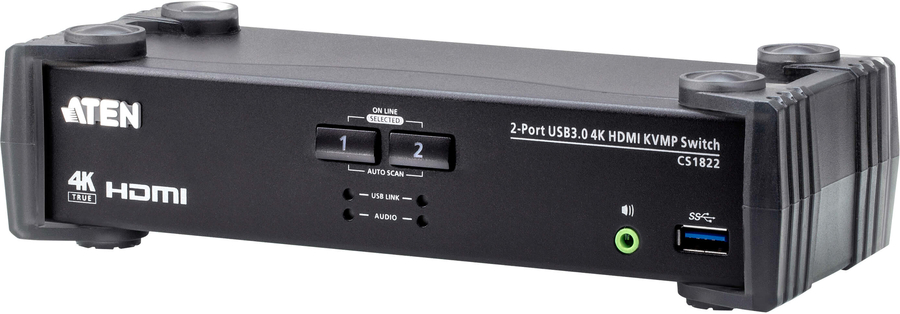

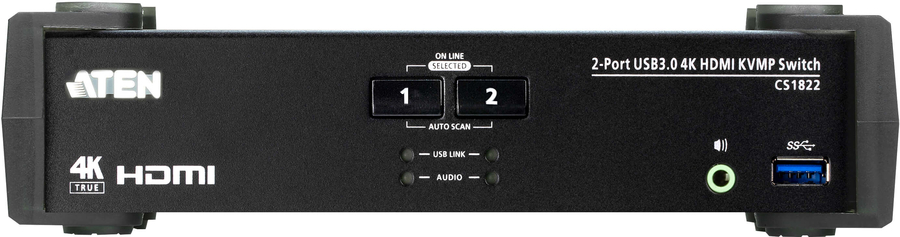

Aten 2-Port USB 3.0 4K HDMI KVMP Switch

Home :: I/O Devices ::


Regularly: $395.00
On Sale: $379.20    Sale Ends: April 12th, 2024

Manufacturer: Aten

2-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
54636430 CS1822 672792011160 Active

Details

General Information
Summary The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1822 optimizes user experience of multitasking.

With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.

In addition, the CS1822 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1822 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.

Integrating these outstanding functionalities, the CS1822 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
Ports & interfaces
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type HDMI

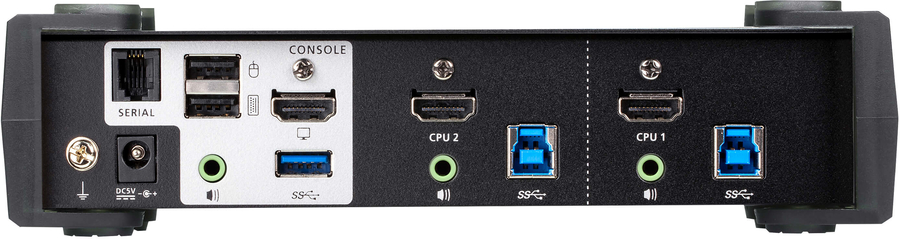

Console ports 3.5mm headphone, 3.5mm mic, HDMI, USB A
HDMI ports quantity 3
USB 2.0 Type-B ports quantity 2
Console USB ports quantity 2
USB 2.0 Type-A hub ports quantity 2
USB connector type USB Type-A, USB Type-B
Serial port type RS-232
Serial ports quantity 1
Audio connections Yes
DC-in jack Yes
Performance
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Video bandwidth 60 Hz
Design
Product colour Black
Housing material Metal, Plastic
Push button Yes
Display
Built-in display No
Power
Power source DC
DC input voltage 5 V
Power consumption (typical) 1.78 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 880 mm
Depth 210 mm
Height 555 mm
Weight 740 g

Multimedia
