General Information |
|
Summary |

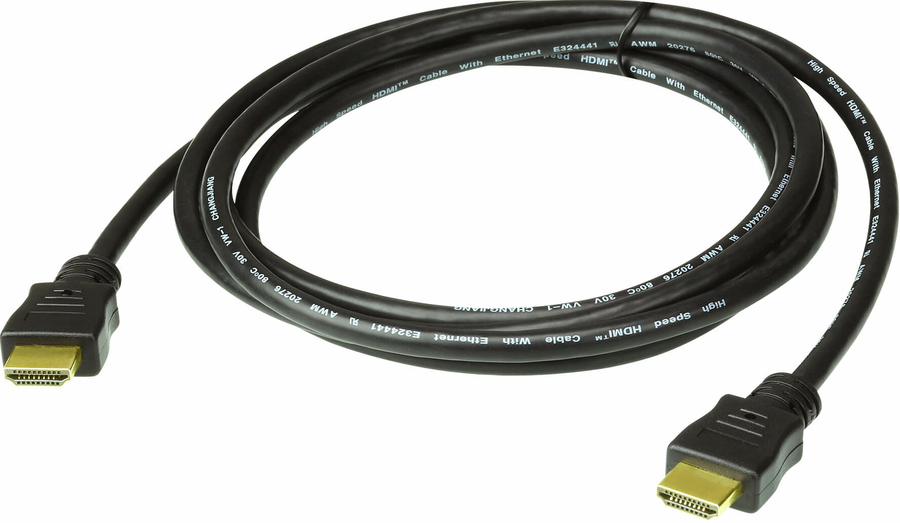

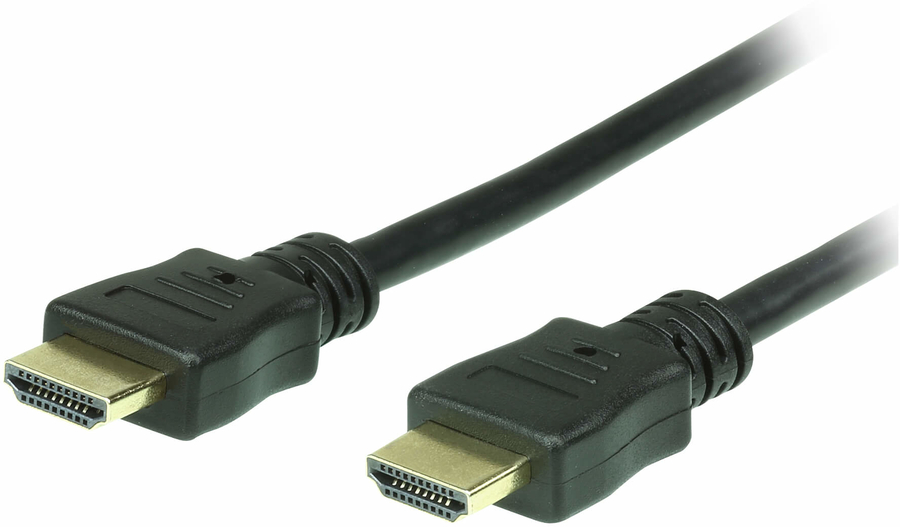

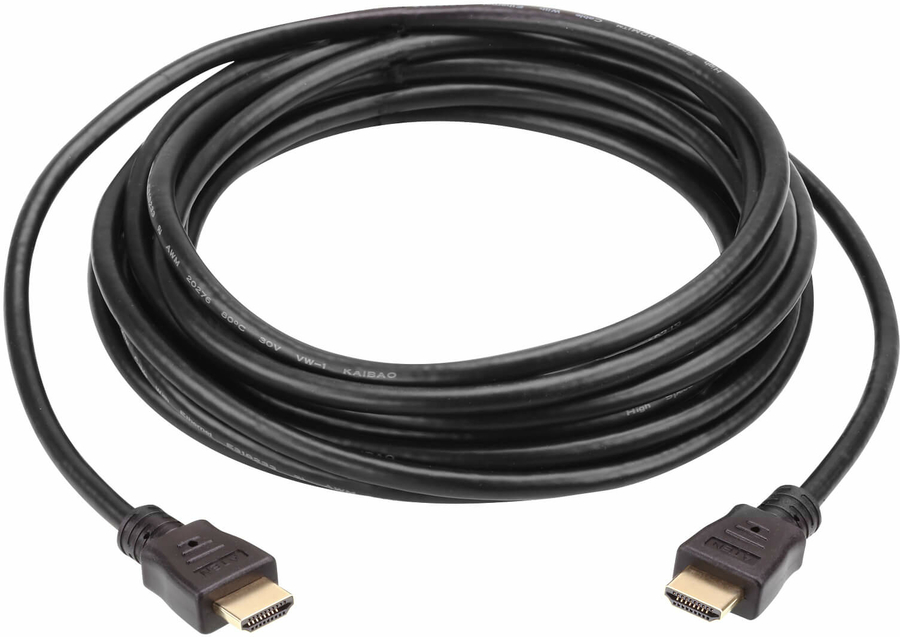

ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 1 to 5 meters with resolutions up to True 4K (4096 x 2160 @60Hz 4:4:4). |
|
Features |
|
Cable length |
2 m |
|
Connector 1 |
HDMI Type A (Standard) |
|
Connector 2 |
HDMI Type A (Standard) |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Product colour |
Black |
|
Connector contacts plating |
Gold |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
3D |
Yes |
|
Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
|
HDMI Ethernet channel |
Yes |
|
HDCP |
Yes |
|
HDCP version |
2.2 |
|
Maximum refresh rate |
60 Hz |
|
AWG wire size |
30 |
|
Cable material |
Copper |
|
Cable jacket material |
Polyvinyl chloride (PVC) |
|
Cable shielding |
Aluminum mylar foil |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 80 °C |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Weight & dimensions |
|
Cable diameter |
6 mm |
|
Weight |
125 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package weight |
125 g |
|
Logistics data |
|
Master (outer) case net weight |
12.5 kg |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
388 mm |
|
Master (outer) case length |
519 mm |
|
Master (outer) case height |
348 mm |
|
Master (outer) case gross weight |
13.2 kg |
|
Products per master (outer) case |
100 pc(s) |
