General Information |
|
Summary |

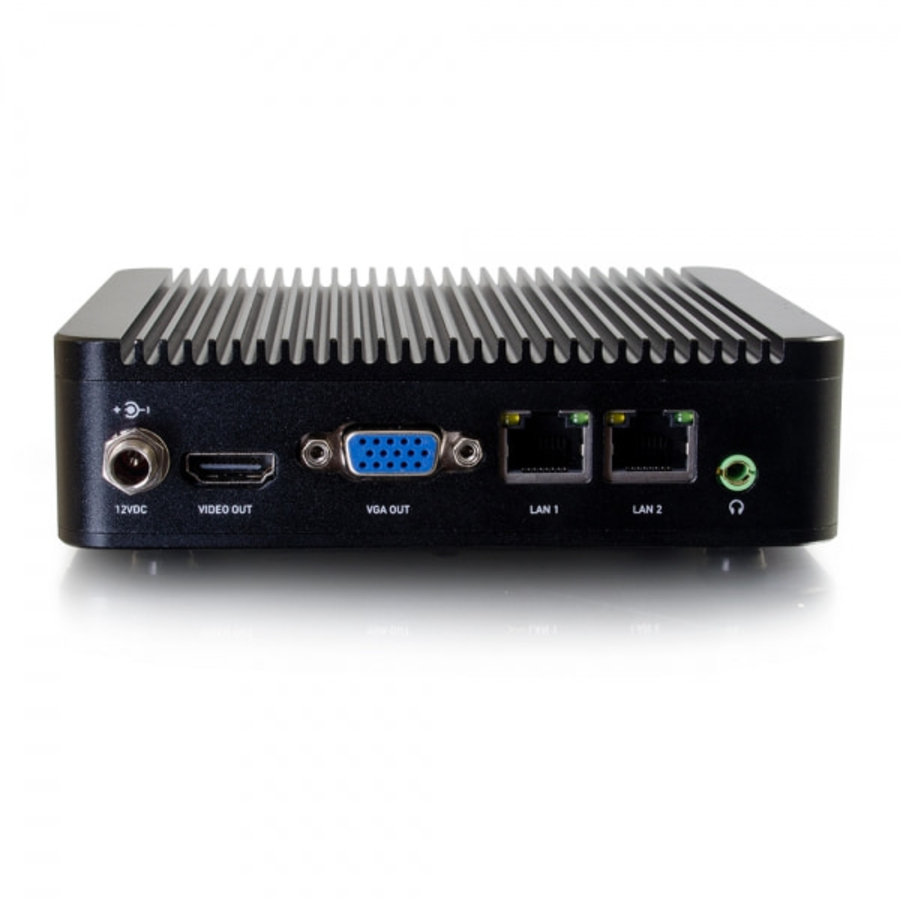

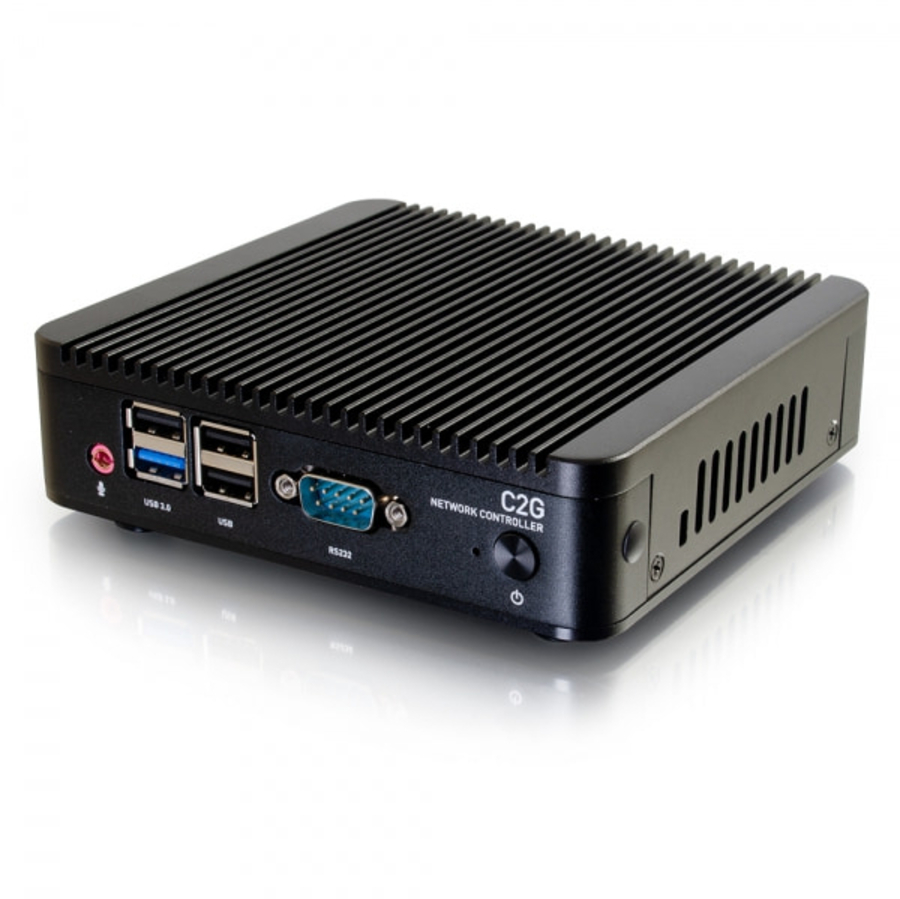

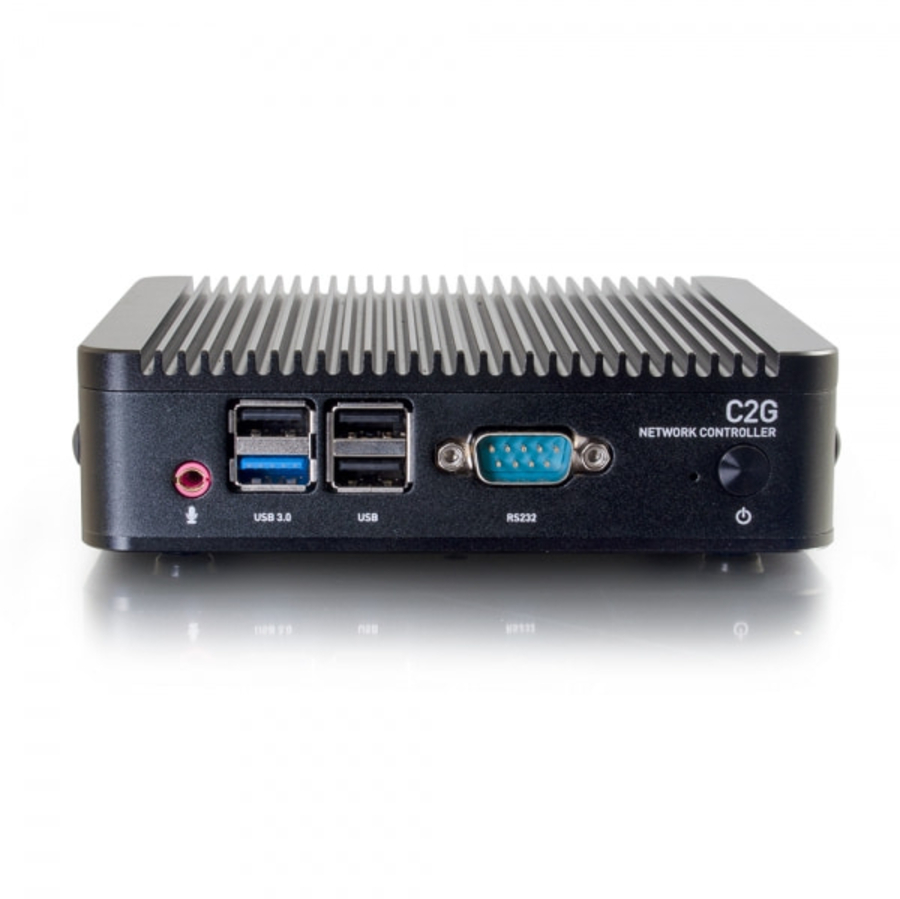

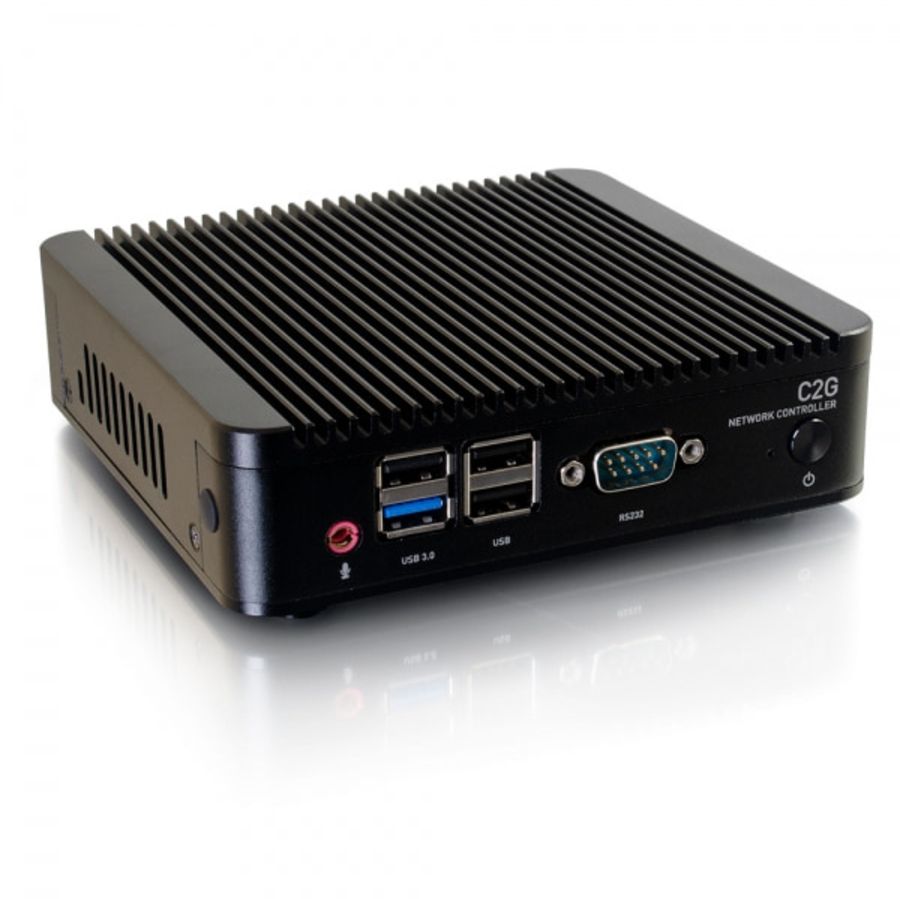

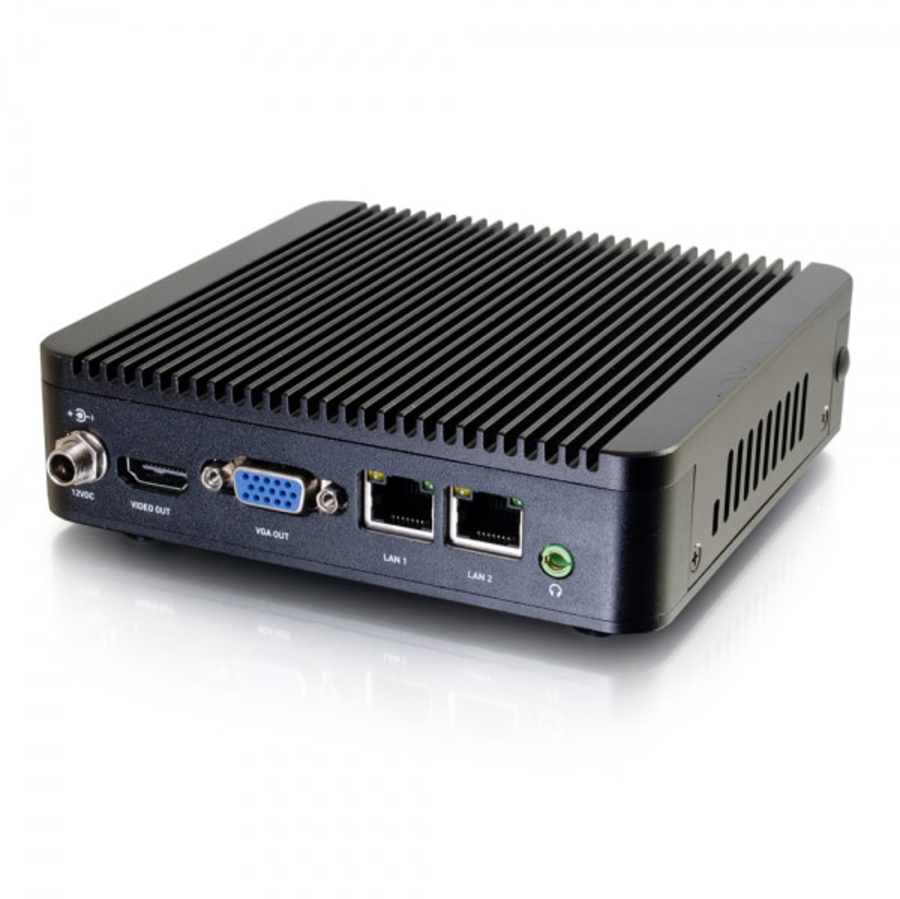

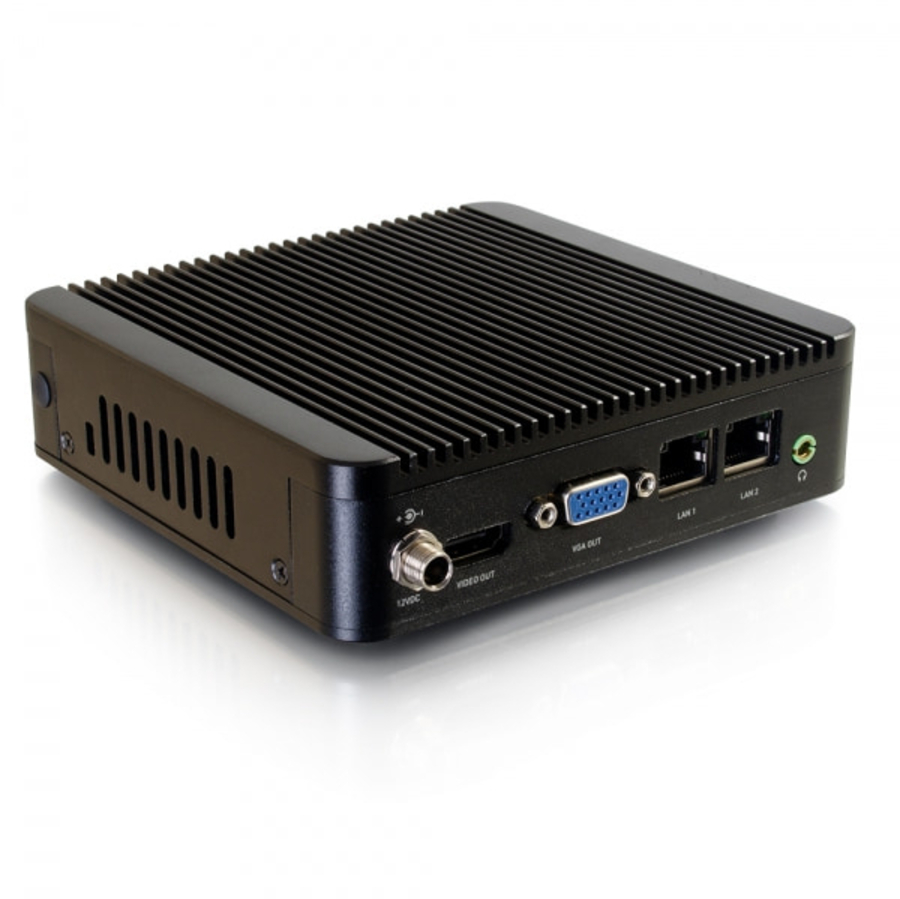

The Network Controller for HDMI over IP is a Linux-based PC that allows users to control HDMI over IP products, supporting video wall and multiview connectivity. The Network Controller may be managed via a Web interface or the C2G AVoIP Control Smartphone & Tablet App.
When installed on a local area network (LAN), the Network Controller will scan the LAN for connected C2G HDMI over IP products allowing the user to auto-discover, configure, manage connectivity and support firmware upgrades for the AV over IP devices through the Web interface. The Network Controller may also be managed by the C2G AVoIP Control App for a more user-friendly experience.
An Application Program Interface (API) is available ― supporting several third-party partner control applications running on smartphones and tables.
Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. |
|
Design |
|
Certification |
FCC, CE, RoHS, WEEE |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage temperature (T-T) |
-20 - 80 °C |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Weight |
700 g |
|
Width |
133 mm |
|
Depth |
127 mm |
|
Height |
35 mm |
|
