Aten DisplayPort to True 4K HDMI Active Adapter
|
|
Regularly: $32.00
On Sale: $30.72
Sale Ends:
April 26th, 2024
Manufacturer:
Aten
True 4K DisplayPort to HDMI Active Adapter
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
55196563
|
VC986B
|
- |
Active
|
Details
|
General Information |
|
Summary |

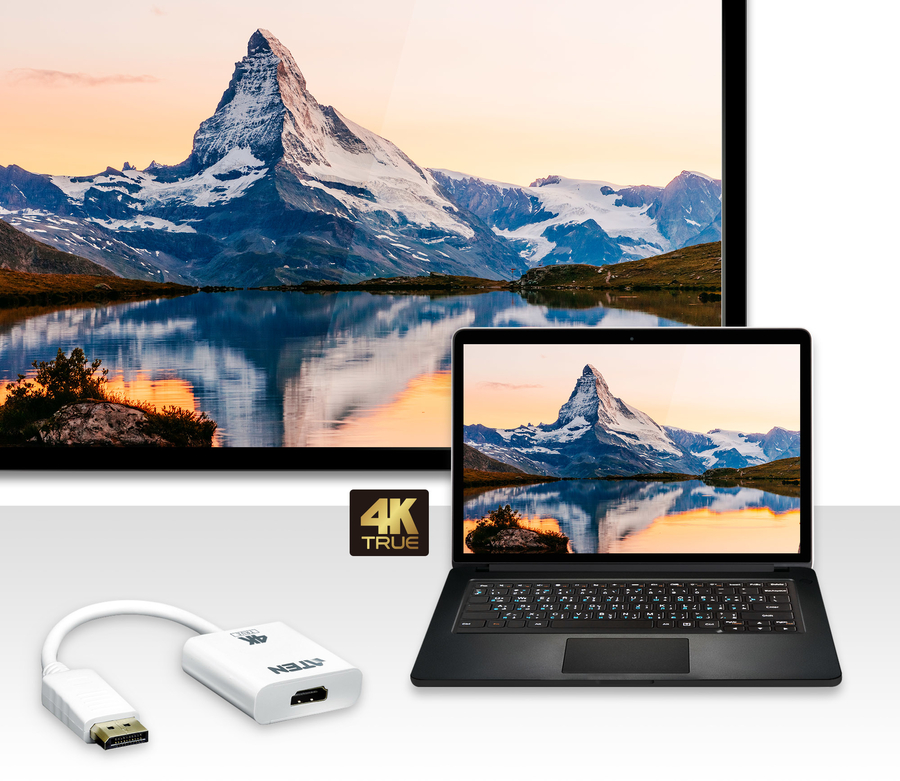

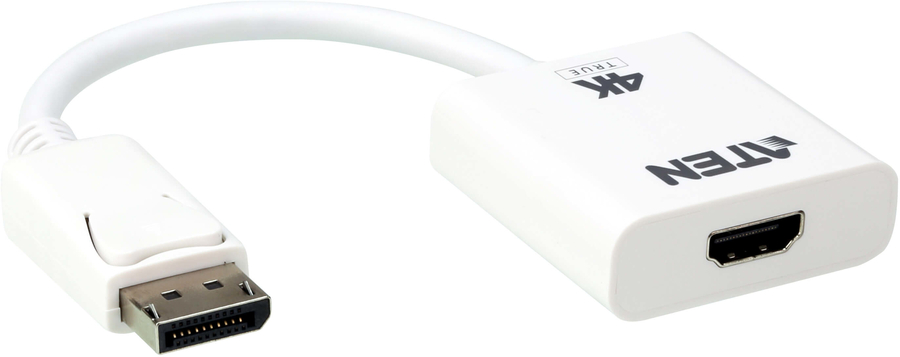

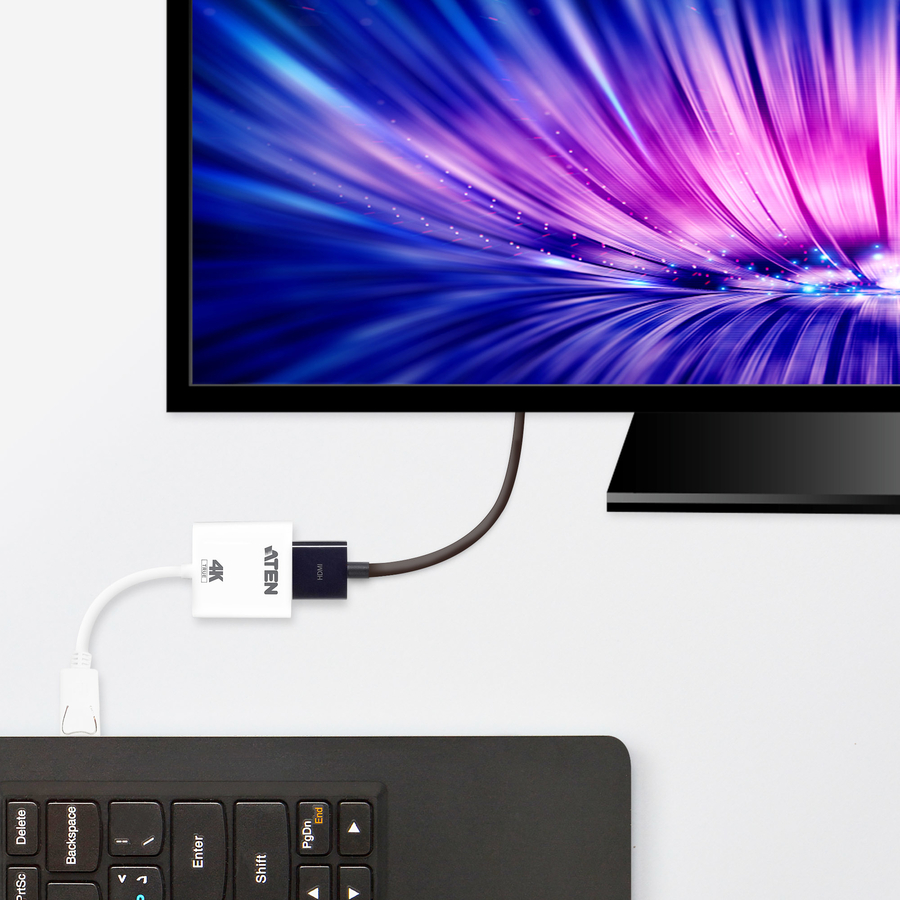

The VC986B is an active DisplayPort to HDMI adapter that allows you to connect your DisplayPort output device to the HDMI input of a True 4K TV or any other display.

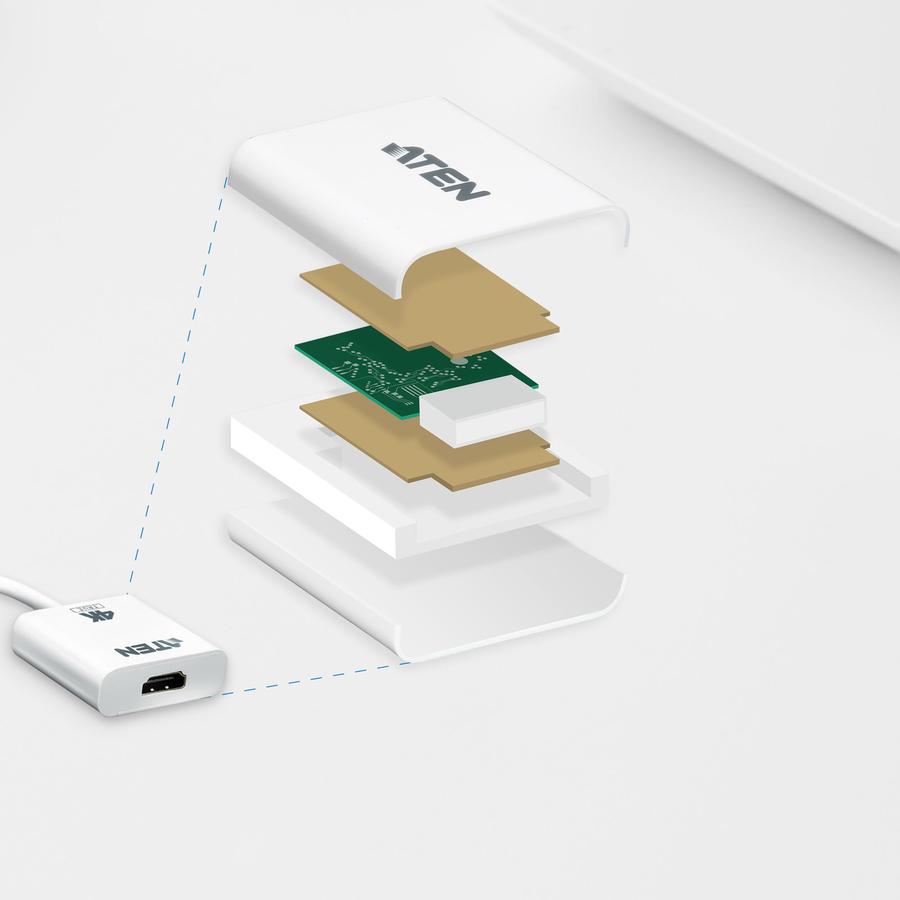

The ATEN VC986B is an active adapter, featuring an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++).* Moreover, support for resolutions up to True 4K makes this adapter ideal for users who require a high performance signal conversion solution.
*Dual-Mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals. |
|
Features |
|
Connector 1 |
DisplayPort |
|
Connector 2 |
HDMI |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
HDMI version |
2.0 |
|
HDCP |
Yes |
|
HDCP version |
2.2 |
|
DisplayPort version |
1.2a |
|
Maximum resolution |
4096 x 2160 pixels |
|
Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
|
Data transfer rate |
18 Gbit/s |
|
Bandwidth |
600 MHz |
|
Maximum refresh rate |
60 Hz |
|
Refresh rate at maximum resolution |
60 Hz |
|
3D |
Yes |
|
Product colour |
White |
|
Cable type |
Round cable |
|
Connector housing material |
Plastic |
|
Plug and Play |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Weight |
40 g |
|
Width |
45 mm |
|
Depth |
180 mm |
|
Height |
15 mm |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
