General Information |
|
Summary |

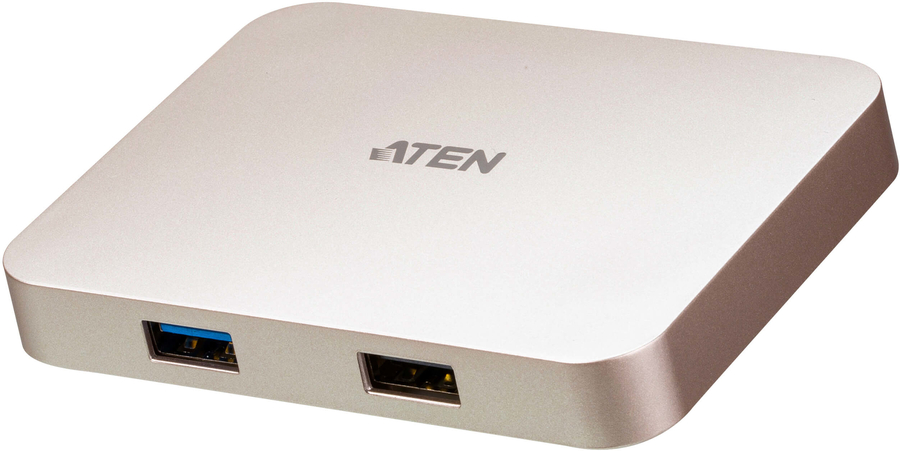

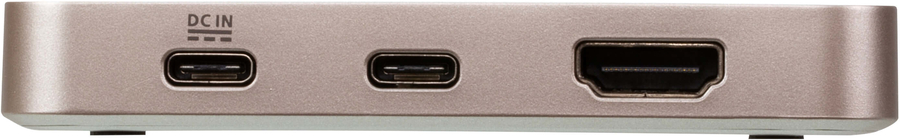

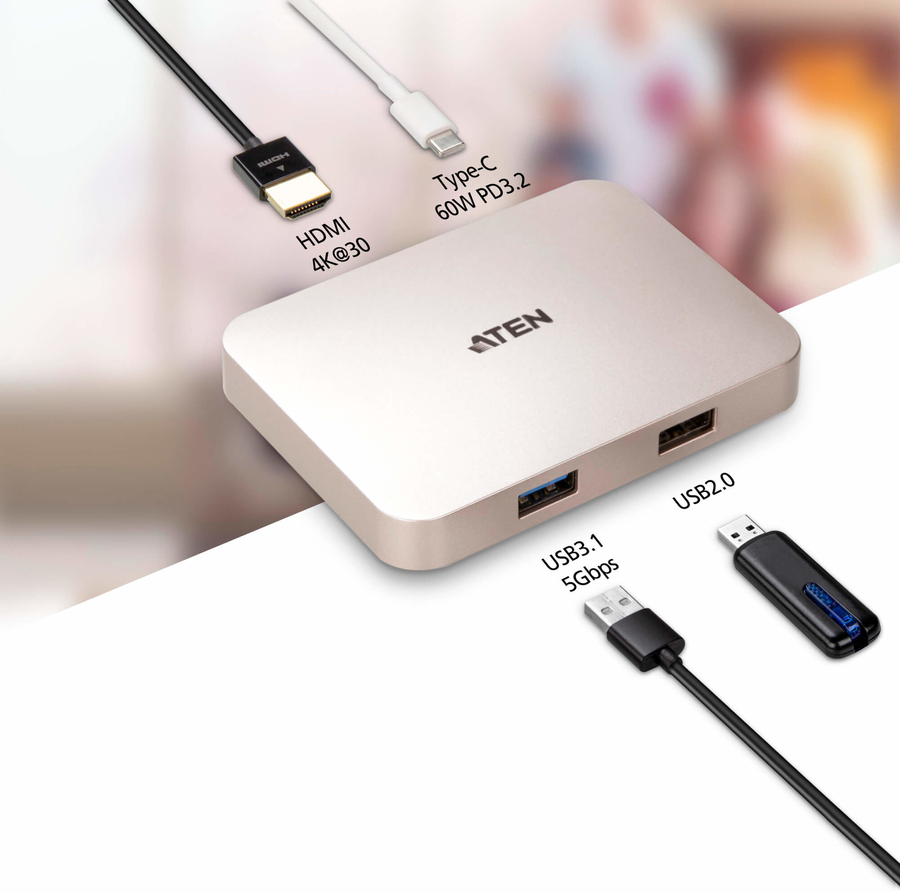

The UH3235 is a 4-in-1 multifunctional USB-C mini dock that features a USB 2.0 Type-A, USB 3.1 Gen 1 Type-A, HDMI and a USB-C DC-in port. With its wide range of compatibility, the UH3235 can support different operation systems such as PC, Mac, iPad Pro, Android Smartphone, and USB-C game console.
The HDMI supports up to 4K (3840 x 2160 @ 30 Hz) crystal clear video output that will bring users a higher level of enjoyment from watching videos, playing video games, or working from home. The UH3235 also supports USB-C Power Delivery Pass-Through up to 60W, which means it can provide power to your device via a USB-C PD power adapter with the PD profile specifications of 5V, 9V, 15V, 20V.
In addition, the integrated USB 3.1 Gen 1 Type-A port supports data transfer rate up to 5Gbps, giving seamless access to USB flash drive. The USB 2.0 Type-A port is for keyboard/mouse connection and can also avoid signal interference.
With highly portable and lightweight design, users can bring UH3235 anywhere and maintain necessary connection capability with just one cable. This is a perfect solution to maximize the functionality for your smart device. |
|
Ports & interfaces |
|
Host interface |
USB 2.0 Type-C |
|
USB 2.0 ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
HDMI ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
USB Power Delivery |
Yes |
|
USB Power Delivery revision |
2.0 |
|
USB Power Delivery up to |
60 W |
|
Performance |
|
Product colour |
Rose gold |
|
Hub interfaces |
HDMI, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|
Housing material |
Plastic |
|
Certification |
RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Weight |
82 g |
|
Packaging data |
|
Package width |
35 mm |
|
Package depth |
125 mm |
|
Package height |
180 mm |
|
Package weight |
155 g |
|
Logistics data |
|
Products per master (outer) case |
20 pc(s) |
|
Master (outer) case width |
262 mm |
|
Master (outer) case length |
375 mm |
|
Master (outer) case height |
203 mm |
|
Master (outer) case gross weight |
3.62 kg |
|
Master (outer) case net weight |
1.64 kg |
|
Harmonized System (HS) code |
84719000 |
|
Other features |
|
Cable length |
0.5 m |
