General Information |
|
Summary |
Create dazzling, widescreen displays with this premium classroom projector.

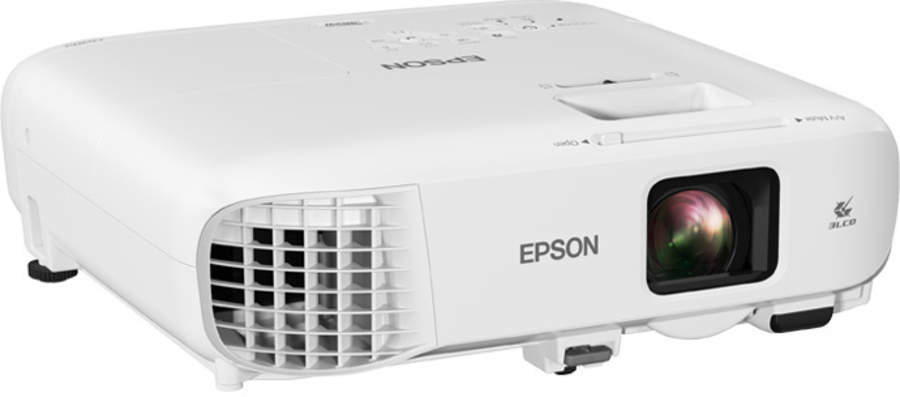

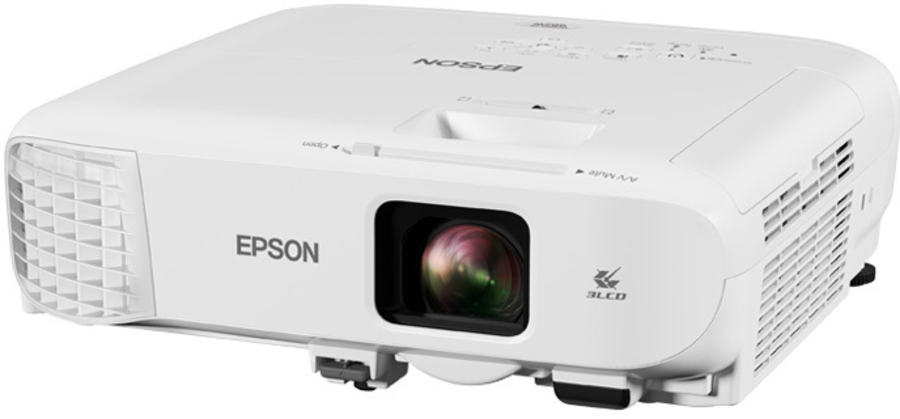

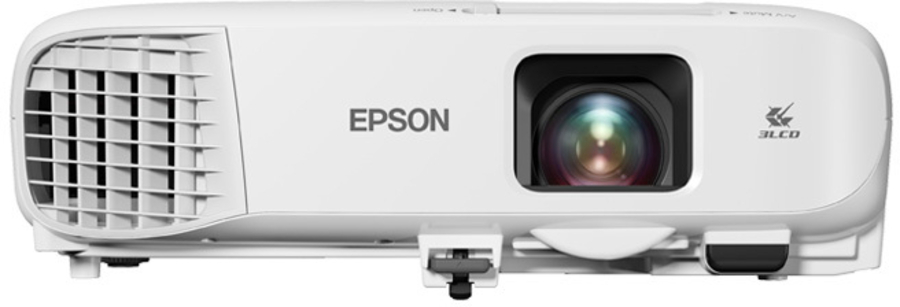

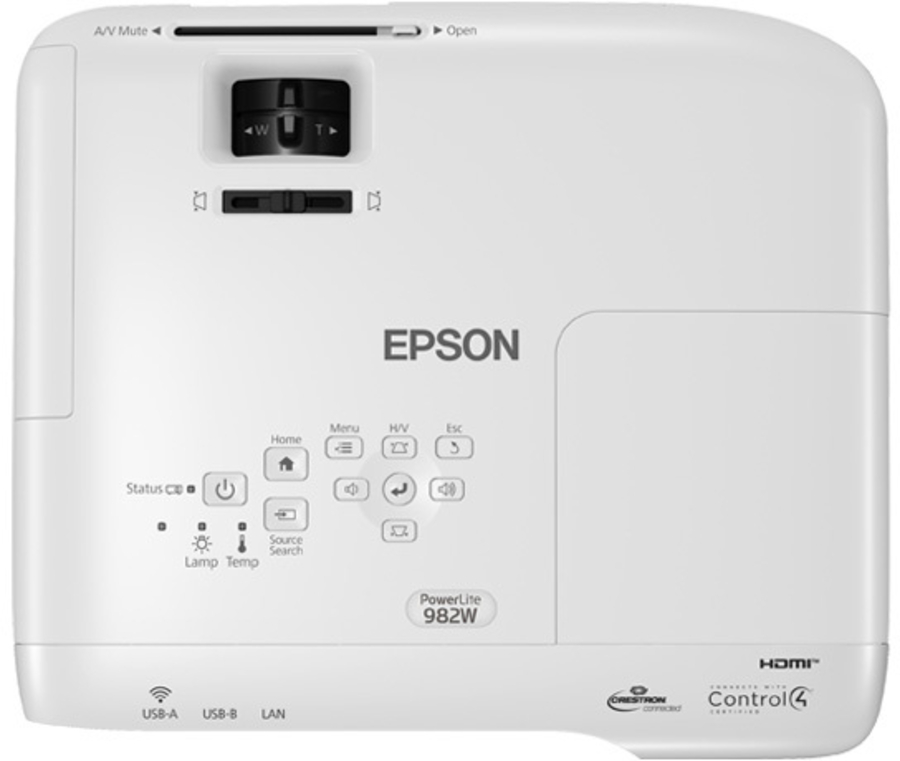

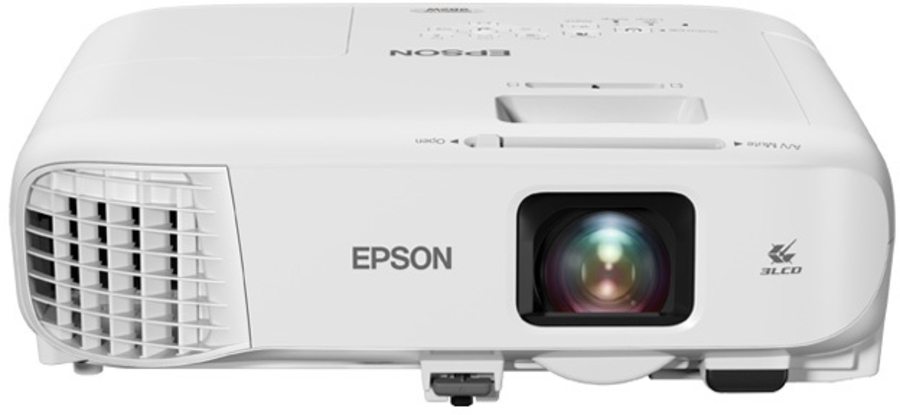

Bring powerful projection to your classroom with the advanced PowerLite 982W projector. The perfect addition to any learning environment, this ultra bright, 4,200-lumen projector enhances lesson plans and promotes collaboration with vibrant, widescreen displays. Featuring an integrated Moderator function, the PowerLite 982W allows up to 50 users to connect and share content from laptops or mobile devices. Designed with durability in mind, this premium projector provides a long lamp life up to 17,000 hours in ECO Mode. Plus, with a 1.6 optical zoom, a 16 W speaker, a microphone input, and dual HDMI ports, creating dynamic, high-definition displays has never been easier. |
|
Projector |
|
Projector brightness |
4200 ANSI lumens |
|
Projection technology |
3LCD |
|
Projector native resolution |
WXGA (1280x800) |
|
Native aspect ratio |
16:10 |
|
Screen size compatibility |
736.6 - 7112 mm (29 - 280") |
|
Projection distance |
1.38 - 2.24 m |
|
Projection distance (wide) |
0.85 - 8.4 m |
|
Contrast ratio (dynamic) |
16000:1 |
|
Number of colours |
1.07 billion colours |
|
Keystone correction, horizontal |
30° |
|
Keystone correction, vertical |
30° |
|
Matrix type |
3-panel (p-Si TFT active) |
|
White light output |
4200 ANSI lumens |
|
Colour light output |
4200 ANSI lumens |
|
Light source |
|
Light source type |
Lamp |
|
Service life of light source |
6500 h |
|
Service life of light source (economic mode) |
17000 h |
|
Lamp type |
UHE |
|
Lamp power |
230 W |
|
Lens system |
|
Focus |
Manual |
|
Focal length range |
18.2 – 29.2 |
|
Aperture range (F-F) |
1.51 - 1.99 |
|
Zoom type |
Auto |
|
Zoom ratio |
1.16:1 |
|
Throw ratio |
1.38 - 2.24 |
|
Video |
|
Analog signal format system |
NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
|
Full HD |
No |
|
3D |
No |
|
Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+) |
|

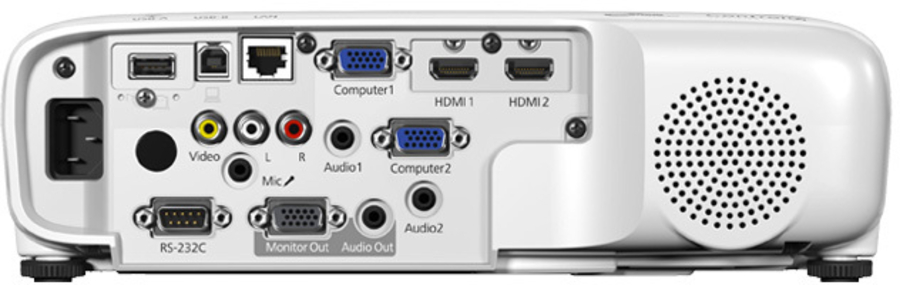

Ports & interfaces |
|
VGA (D-Sub) ports quantity |
2 |
|
HDMI ports quantity |
2 |
|
Composite video in |
1 |
|
DVI port |
No |
|
USB 2.0 ports quantity |
2 |
|
Audio (L/R) in |
1 |
|
Serial interface type |
RS-232C |
|
HDMI connector type |
Full-size |
|
USB 2.0 Type-A ports quantity |
1 |
|
USB 2.0 Type-B ports quantity |
1 |
|
Microphone in |
Yes |
|
PC in (D-Sub) |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Features |
|
Noise level |
37 dB |
|
Interactive |
No |
|
Noise level (economic mode) |
28 dB |
|
Projection modes |
Ceiling, Front, Rear |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
RMS rated power |
16 W |
|
Number of built-in speakers |
1 |
|
Design |
|
Market positioning |
Education |
|
Product colour |
White |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Power |
|
Power source |
AC |
|
Power consumption (typical) |
354 W |
|
Power consumption (standby) |
2 W |
|
Power consumption (economy mode) |
235 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 35 °C |
|
Weight & dimensions |
|
Weight |
3.1 kg |
|
Width |
307.3 mm |
|
Depth |
292.1 mm |
|
Height |
104.1 mm |
|
Packaging content |
|
Remote control included |
Yes |
|
Batteries included |
Yes |
|
Cables included |
VGA |
|
Manual |
Yes |
|
AC adapter included |
Yes |
