General Information |
|
Summary |
High Dynamic Range | Aluminum | 6" (15.24 cm) Built-In Cable

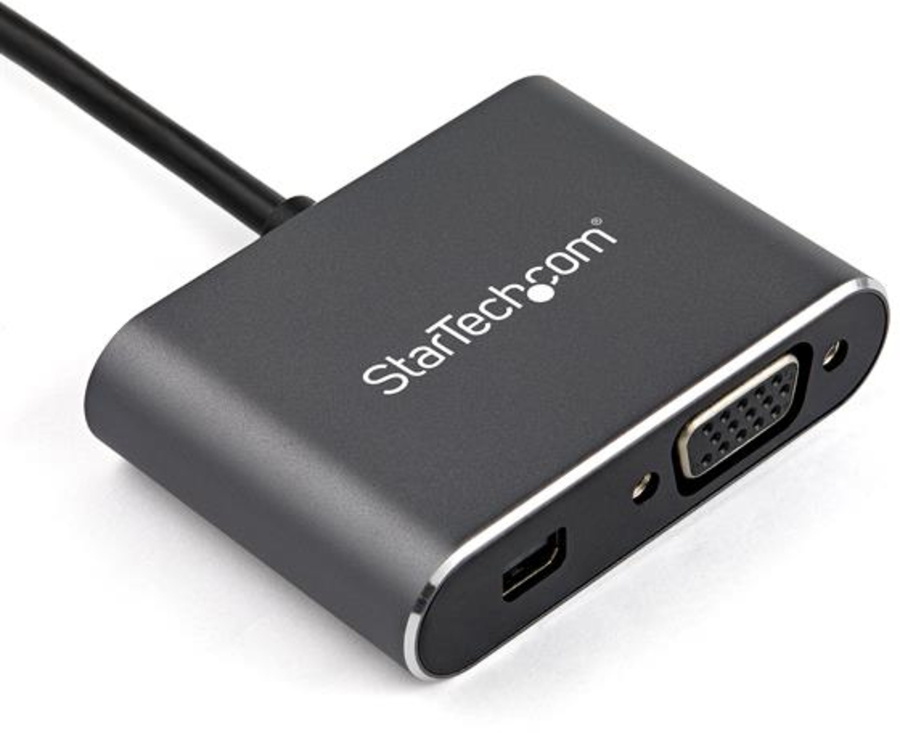

This USB-C multiport video adapter offers a portable solution for connecting your USB Type-C laptop to a Mini DisplayPort or VGA display. The adapter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.
Two-in-One Video Connectivity with Travel in Mind

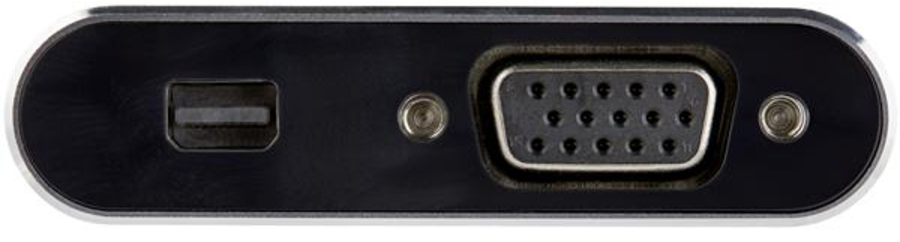

Avoid the hassle of carrying different adapters, with a 2-in-1 USB-C monitor adapter. The multiport adapter features both Mini DP and VGA outputs, you can conveniently connect your laptop to any mDP or VGA-equipped display.
The adapter features a durable aluminum enclosure and can withstand being carried in your travel bag.
Astonishing 4K Picture Quality and HDR
The Mini DisplayPort output on this USB-C video adapter lets you harness the audio and video capabilities that are built into your computer's USB-C connection; delivering the astonishing quality of UHD to your 4K 60Hz display. Plus, the VGA output supports HD resolutions up to 1920 x 1080, ensuring you won’t have to sacrifice picture quality when connected to a VGA monitor or projector.
With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.
Stylish Connectivity for Your MacBook, MacBook Pro, or Any Laptop

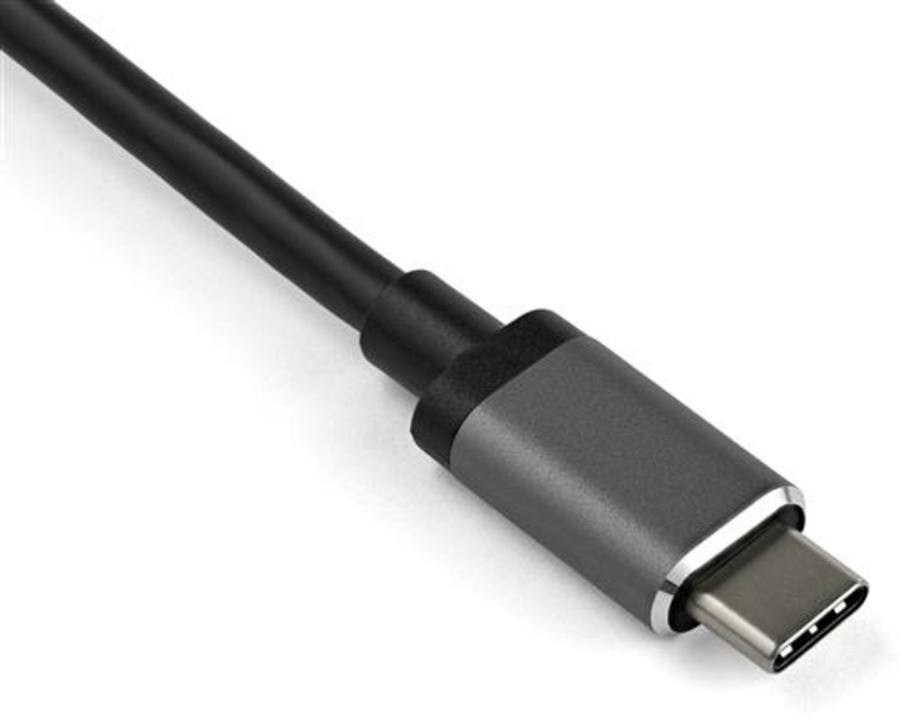

The USB-C display adapter has a Space Gray housing and built-in USB-C cable designed to match your Space Gray MacBook or MacBook Pro. The adapter is compatible with USB-C DP Alt Mode devices.
CDP2MDPVGA is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note: This adapter only supports a single display - you are not able to output Mini DisplayPort and VGA video simultaneously.
The StarTech.com Advantage
|
|
Performance |
|
DVI output |
No |
|
HDMI output |
No |
|
DisplayPort output |
No |
|
Number of displays supported |
2 |
|
USB connector type |
USB Type-C |
|
USB connector gender |
Male |
|
Mini DisplayPorts quantity |
1 |
|
VGA (D-Sub) output |
Yes |
|
DisplayPort version |
1.2 |
|
Maximum resolution |
3840 x 2160 pixels |
|
Refresh rate at maximum resolution |
60 Hz |
|
Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2160 |
|
Chipset |
Realtek RTD2142S-CG |
|
Certification |
CE, FCC, REACH |
|
Design |
|
Product colour |
Grey |
|
Housing material |
Aluminium |
|
Integrated USB cable |
Yes |
|
Weight & dimensions |
|
Width |
44 mm |
|
Depth |
62 mm |
|
Height |
15 mm |
|
Weight |
51 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Storage temperature (T-T) |
-10 - 55 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Packaging data |
|
Package width |
80 mm |
|
Package depth |
150 mm |
|
Package height |
20 mm |
|
Package weight |
73 g |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Products per master (outer) case |
200 pc(s) |
|
Master (outer) case width |
331 mm |
|
Master (outer) case length |
473 mm |
|
Master (outer) case height |
440 mm |
|
Harmonized System (HS) code |
84733020 |
