General Information |
|
Summary |

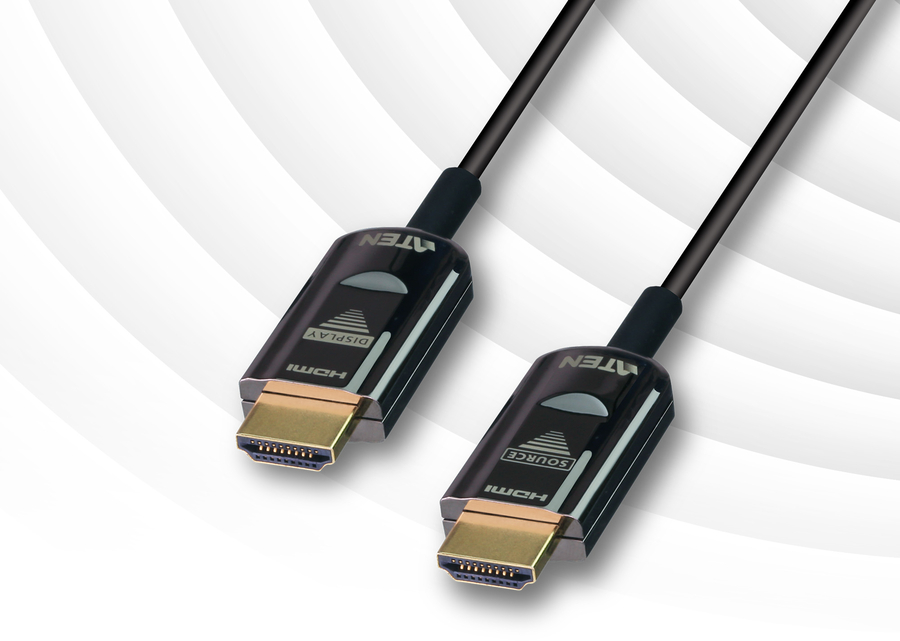

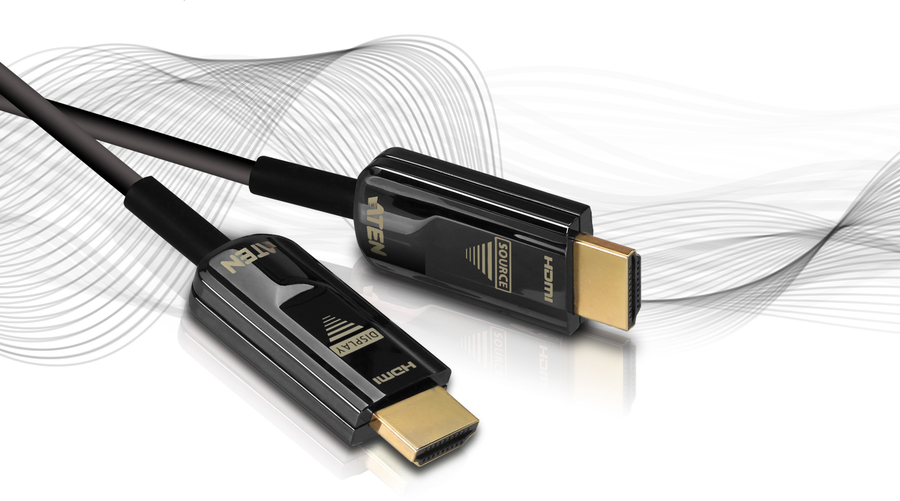

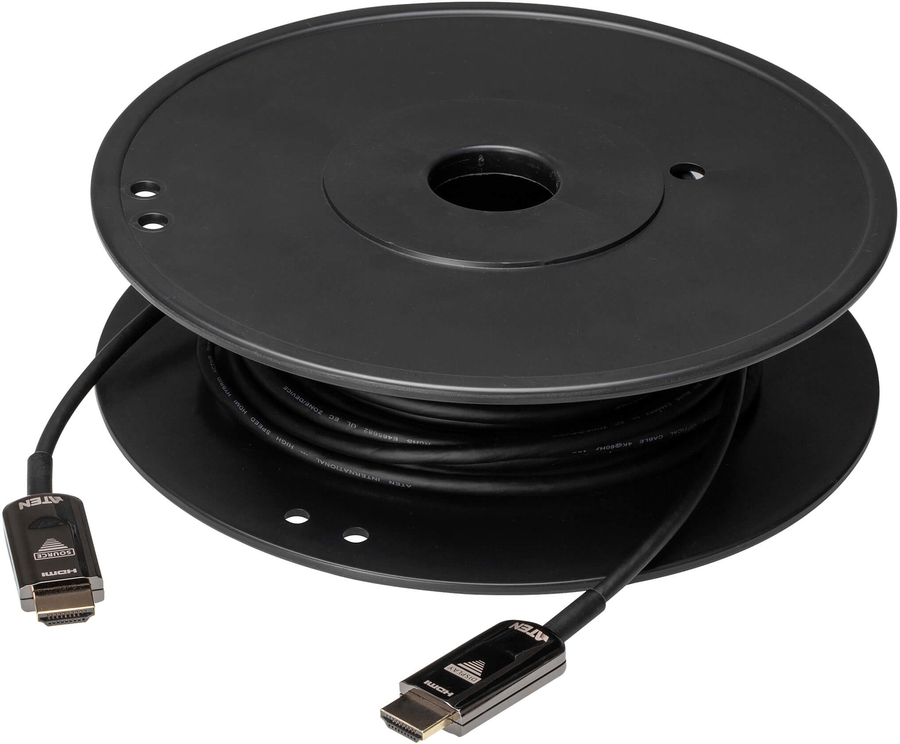

ATEN VE781010 True 4K HDMI Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 10m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781010 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities. |
|
Features |
|
Cable length |
10 m |
|
Connector 1 |
HDMI Type A (Standard) |
|
Connector 2 |
HDMI Type A (Standard) |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Product colour |
Black |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
HDMI version |
2.0 |
|
3D |
Yes |
|
Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
|
Dolby technologies |
DTS-HD Master Audio, Dolby TrueHD |
|
Audio Return Channel (ARC) |
Yes |
|
HDCP |
Yes |
|
HDCP version |
2.2 |
|
Data transfer rate |
18 Gbit/s |
|
High Dynamic Range (HDR) supported |
Yes |
|
Supported digital audio channels (uncompressed) |
8 |
|
Bandwidth |
600 MHz |
|
Cable material |
Copper |
|
Cable type |
Round cable |
|
Cable jacket material |
Polyvinyl chloride (PVC) |
|
Plug and Play |
Yes |
|
Colour sampling |
4:4:4, 4:2:0, 4:2:2 |
|
Extended display identification data (EDID) |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 85% |
|
Certificates |
|
Certification |
CE / FCC / RoHS / REACH / UL VW-1 / EMC Class-A / Class-B |
|
Weight & dimensions |
|
Cable diameter |
4.5 mm |
|
Weight |
350 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
