General Information |
|
Summary |

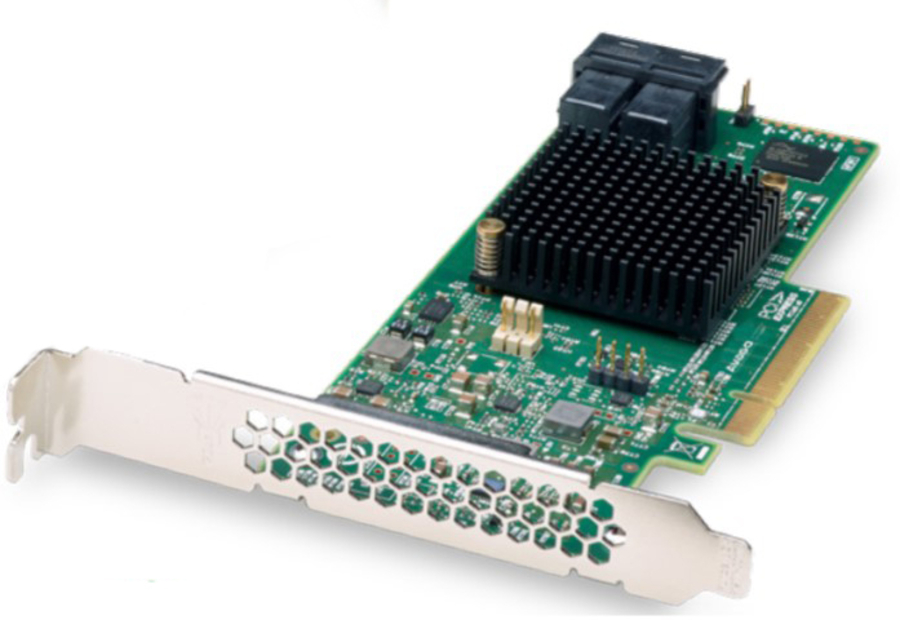

The high-port 9500-16i Tri-Mode, PCIe Gen 4.0 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-16i adapter delivers the performance and scalability needed by critical applications. |
|
Ports & interfaces |
|
Host interface |
PCIe |
|
Output interface |
SAS |
|
Expansion card form factor |
Low-profile |
|
Internal mini-SAS ports |
2 |
|
Design |
|
Internal |
No |
|
Product colour |
Black, Grey |
|
Mean time between failures (MTBF) |
5000000 h |
|
Certification |
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
|
Features |
|
Full duplex |
Yes |
|
Plug and Play |
Yes |
|
Power |
|
Power consumption (typical) |
8.9 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Storage temperature (T-T) |
-45 - 105 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Weight & dimensions |
|
Width |
155.6 mm |
|
Depth |
68.9 mm |
|
Packaging data |
|
Quantity |
1 |
|
Manual |
Yes |
|
User guide |
Yes |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
Other features |
|
Quantity per box |
1 pc(s) |
