General Information |
|
Summary |

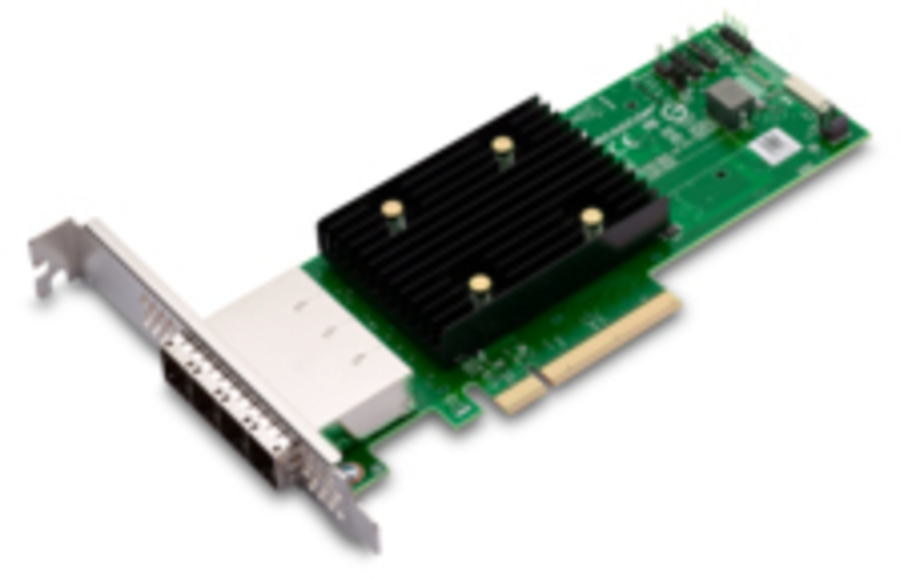

The 9500-16e Tri-Mode, PCIe Gen 4.0 HBA with 16 external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance over previous generations, the 9500-16e adapter delivers the performance and scalability needed by critical applications. |
|
Ports & interfaces |
|
Host interface |
PCIe |
|
Output interface |
SAS |
|
Expansion card form factor |
Full-height / Low-profile |
|
NVMe |
Yes |
|
External mini-SAS HD ports |
4 |
|
Design |
|
Product colour |
Black, Green, Metallic |
|
Mean time between failures (MTBF) |
5000000 h |
|
Certification |
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
|
Features |
|
Plug and Play |
Yes |
|
Power |
|
Power consumption (typical) |
8.74 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Storage temperature (T-T) |
-45 - 105 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Weight & dimensions |
|
Width |
167.6 mm |
|
Depth |
68.9 mm |
|
Packaging data |
|
Quantity |
1 |
|
Manual |
Yes |
|
User guide |
Yes |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
