General Information |
|
Summary |
PCIe Gen 4.0 HBA enables customers to integrate into U.3 backplanes utilizing UBM for maximum flexibility and configuration options.

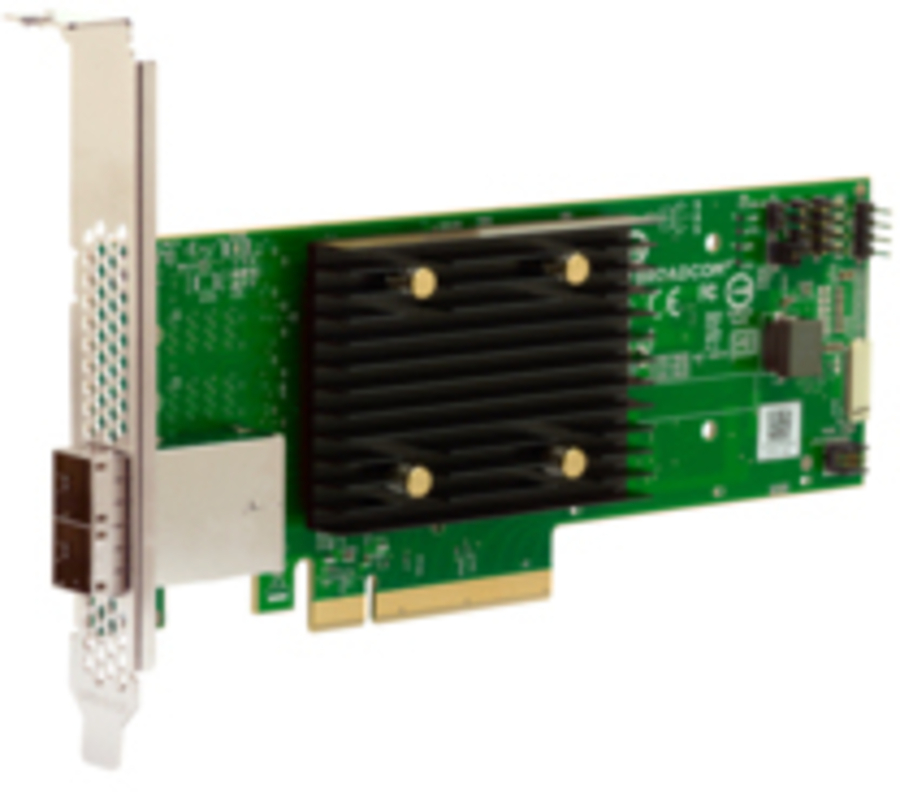

The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility. The HBA features the SAS3808 x8, Gen 4.0 I/O Controller (IOC), making it part of the industry's first HBA family to offer both PCIe Gen 4.0 host and storage interfaces.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-8e adapter delivers the performance and scalability needed by critical applications. |
|
Ports & interfaces |
|
Host interface |
PCIe |
|
Output interface |
SAS |
|
Expansion card form factor |
Full-height / Low-profile |
|
NVMe |
Yes |
|
External mini-SAS HD ports |
2 |
|
Design |
|
Internal |
Yes |
|
Product colour |
Green, Grey |
|
Mean time between failures (MTBF) |
5000000 h |
|
Certification |
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
|
Power |
|
Power consumption (typical) |
6.12 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Weight & dimensions |
|
Width |
167.6 mm |
|
Depth |
68.9 mm |
|
Packaging data |
|
Quantity |
1 |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
