PCIe 4.0 RAID controller increases performance and maximizes design flexibility with Tri-Mode connectivity and NVMe devices

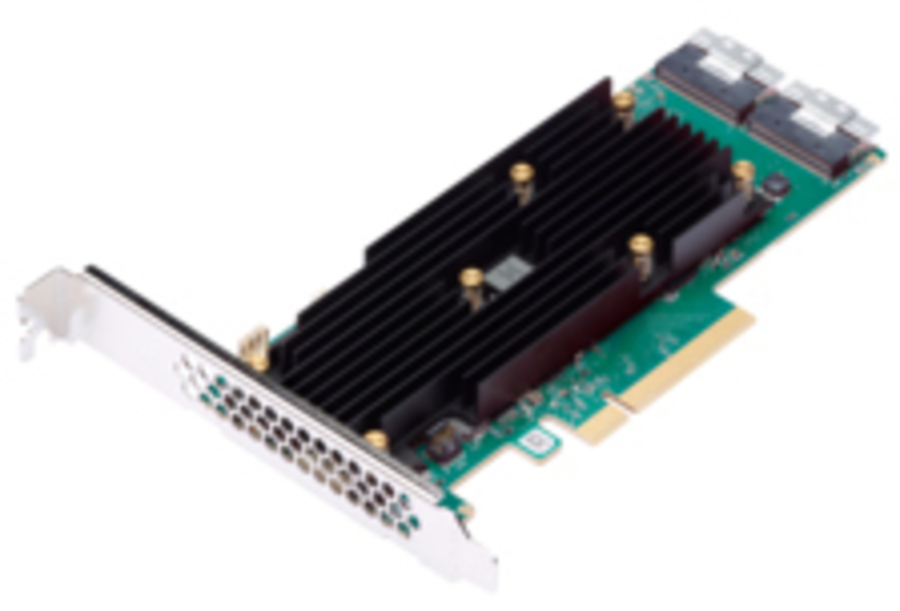

The MegaRAID 9500 series is the industry’s first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-16i adapter, based on the SAS3916 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations.
The 9560-16i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today’s ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-16i is instrumental in getting the most performance and flexibility out of U.3 backplanes:
- SFF-TA-10001 Specification (U.3), which defines a common bay type for SAS, SATA and NVMe
- Universal Backplane Management (UBM), which defines a common backplane control and management framework
With Tri-Mode SerDes technology, the adapter negotiates between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure. |
|
Ports & interfaces |
|
Supported storage drive interfaces |
PCI Express, SAS, Serial ATA III |
|
Host interface |
PCI Express x8 |
|
PCI Express slots version |
4.0 |
|
Performance |
|
RAID levels |
0, 1, 5, 6, 10, 50, 60, JBOD |
|
RAID Level Migration |
Yes |
|
Data transfer rate |
12 Gbit/s |
|
SSD support |
Yes |
|
Internal memory |
8192 MB |
|
Internal memory type |
DDR3 |
|
Memory clock speed |
1866 MHz |
|
S.M.A.R.T. support |
Yes |
|
Number of devices supported |
240 |
|
Online Capacity Expansion |
Yes |
|
Certification |
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for
MIC; BSMI; C-tick |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
10 - 55 °C |
|
Storage temperature (T-T) |
-45 - 105 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
