General Information |
|
Summary |

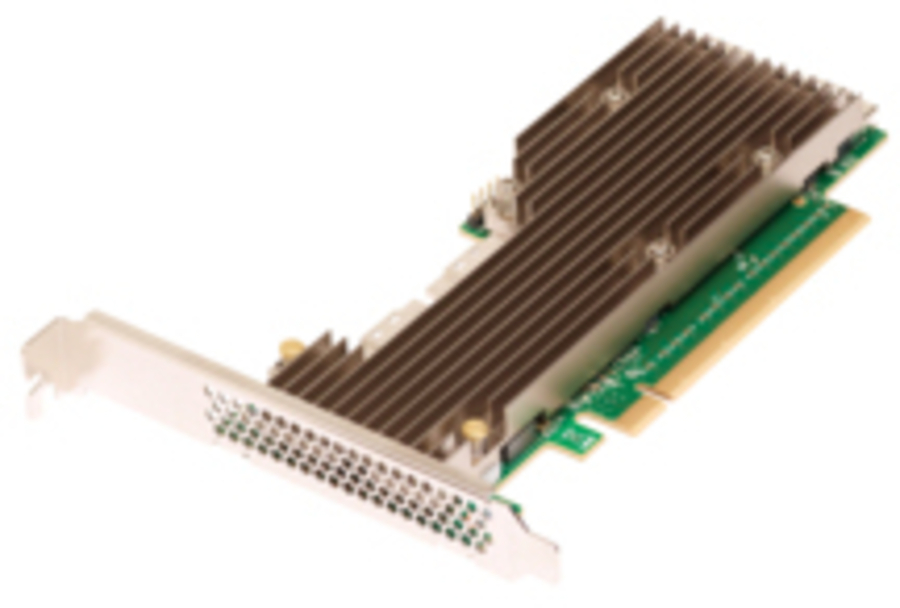

The P411W-32P adapter leverages Broadcom’s world-class board design, PEX88048 PCIe Gen 4.0 switch chip, and solid firmware expertise, to provide advanced features not available using traditional NVMe drive attach methods. Similar to Broadcom MegaRAID adapters and HBAs, the P411W-32P adapter is supplied with fully validated and supported firmware and standards based out of band manageability features. |
|
Ports & interfaces |
|
Host interface |
PCIe |
|
Output interface |
SFF-8654 |
|
Expansion card form factor |
Low-profile |
|
Design |
|
Internal |
Yes |
|
Product colour |
Grey |
|
Mean time between failures (MTBF) |
50000 h |
|
Certification |
FCC 47 CFR 15 B, B; CES -003, B; CNS 13438;
VCCI V-3; AS/NZS CISPR 22; RRA no 2013-24 & 25;
EN55022/EN55024; EN/IEC/UL 60950; RoHS; WEEE. |
|
Power |
|
Power consumption (typical) |
21 W |
|
Output voltage |
12 V |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Storage temperature (T-T) |
-45 - 105 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Weight & dimensions |
|
Width |
68.9 mm |
|
Depth |
155.9 mm |
|
Packaging data |
|
Quantity |
1 |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
