MSI B550M PRO-VDH WiFi AM4 mATX Mainboard
|
Regularly: $159.00
On Sale: $149.46
Sale Ends:
December 8th, 2024
Manufacturer:
MSI
AMD B550, AM4, 4x DDR4, HDMI, DP, VGA, SATA III, M.2, USB 3.2, 1G LAN, Micro-ATX, 244x244 mm
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
Product # |
Manufacturer # |
UPC # |
Status |
55408594
|
B550MPVDHWIFI
|
824142219393 |
Active
|
Details
General Information |
Summary |
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
USER FRIENDLY DESIGN MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
M.2 SHIELD FROZR World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
OPTIMIZED FOR WATER COOLING Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
EASY BIOS RECOVERY WITH FLASH BIOS BUTTON Run into trouble when updating your BIOS? Simply flash the old BIOS version back and continue working within minutes with Flash BIOS Button. Flash BIOS Button even works without a CPU, memory or graphics card installed!
EZ DEBUG LED Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.
XL CLIP The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
ULTIMATE MOTHERBOARD PROTECTION Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
CONNECTIVITY The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
NEXT-GEN INTEL WI-FI AC & BLUETOOTH This next-generation Intel Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation.
FAST AND FUTURE-READY STORAGE MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
LIGHTNING GEN 4 M.2 Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
USB FRONT TYPE-C MSI motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
EXTEND YOUR RGB EXPERIENCE WITH EASE Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
EXPERIENCE MORE MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
PCB WITH 2OZ THICKENED COPPER An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.
A HUGE STEP OF DDR PERFORMANCE MSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
DEDICATED HIGH DEFINITION AUDIO PROCESSOR Make sure you enjoy the purest sound quality in both stereo and surround sound.
HIGH QUALITY AUDIO CAPACITORS A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
HD AUDIO CONNECTORS Keep you sound perfect by transmit your aduio with pure digital signal.
ISOLATED AUDIO DESIGN Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.
SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.
DRAGON CENTER MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
CLICK BIOS 5 Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
CREATOR GENIE Quickly overclock your CPU with a single button for more performance.
A-XMP Choose from a preset A-XMP profile and automatically overclock compatible DDR memory.
M-FLASH Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
HARDWARE MONITOR Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
MEMORY TRY IT Get extreme speed out of your system memory and get more performance.
SEARCH & FAVORITES A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly. |
Processor |
Processor manufacturer |
AMD |
Processor socket |
Socket AM4 |
Compatible processor series |
AMD Ryzen 3000 Series |
Maximum number of SMP processors |
1 |
Supported processor sockets |
Socket AM4 |
Memory |
Supported memory types |
DDR4-SDRAM |
Number of memory slots |
4 |
Maximum internal memory |
128 GB |
Memory slots type |
DIMM |
Memory channels |
Dual-channel |
ECC сompatibility |
ECC & Non-ECC |
Supported memory clock speeds |
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz |
Unbuffered memory |
Yes |
Storage controllers |
Supported storage drive interfaces |
SATA III |
Supported storage drive types |
HDD & SSD |
RAID support |
Yes |
RAID levels |
0, 1, 10 |
Graphics |
Parallel processing technology support |
Not supported |
Maximum graphics card memory |
16000 MB |
Maximum resolution |
4096 x 2160 pixels |
Internal I/O |
USB 2.0 connectors |
2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
Number of SATA III connectors |
4 |
Number of SATA II connectors |
0 |
Number of SATA connectors |
0 |
Total number of SATA connectors |
0 |
Number of Parallel ATA connectors |
0 |
ATX Power connector (24-pin) |
Yes |
CPU fan connector |
Yes |
Number of chassis fan connectors |
3 |
Serial port headers |
1 |
12V power connector |
Yes |
RGB LED pin header |
Yes |

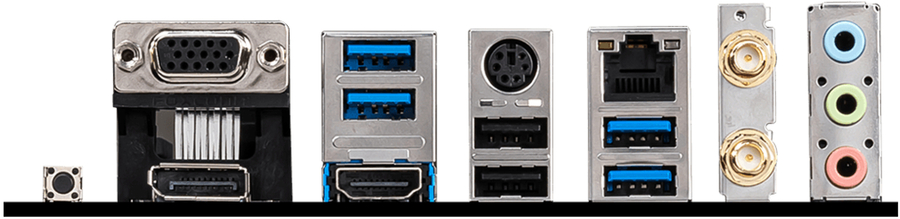

Rear panel I/O ports |
USB 2.0 ports quantity |
2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
Ethernet LAN (RJ-45) ports |
1 |
VGA (D-Sub) ports quantity |
1 |
HDMI ports quantity |
1 |
DVI-D ports quantity |
0 |
eSATA ports quantity |
0 |
PS/2 ports quantity |
1 |
Firewire (IEEE 1394) ports |
0 |
DisplayPorts quantity |
1 |
WiFi-AP antenna jack |
2 |
Network |
Wi-Fi |
Yes |
Ethernet LAN |
Yes |
Ethernet interface type |
Gigabit Ethernet |
LAN controller |
Realtek 8111HN |
Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Bluetooth |
Yes |
Bluetooth version |
4.2 |
Features |
Component for |
PC |
Motherboard form factor |
micro ATX |
Motherboard chipset family |
AMD |
Motherboard chipset |
AMD B550 |
Audio output channels |
7.1 channels |
Audio chip |
Realtek ALC892 |
Product colour |
Black |
Number of mounting holes |
8 |
Expansion slots |
PCI Express x1 (Gen 3.x) slots |
2 |
PCI Express x16 (Gen 4.x) slots |
1 |
Number of M.2 (M) slots |
2 |
BIOS |
Clear CMOS jumper |
Yes |
Logistics data |
Harmonized System (HS) code |
84733020 |
Weight & dimensions |
Width |
244 mm |
Depth |
244 mm |
Height |
65 mm |
Packaging content |
Cables included |
SATA |
Drivers included |
Yes |
Other features |
Weight |
1 kg |
|
