General Information |
|
Summary |
IDEAL FOR COUNTLESS APPLICATIONS

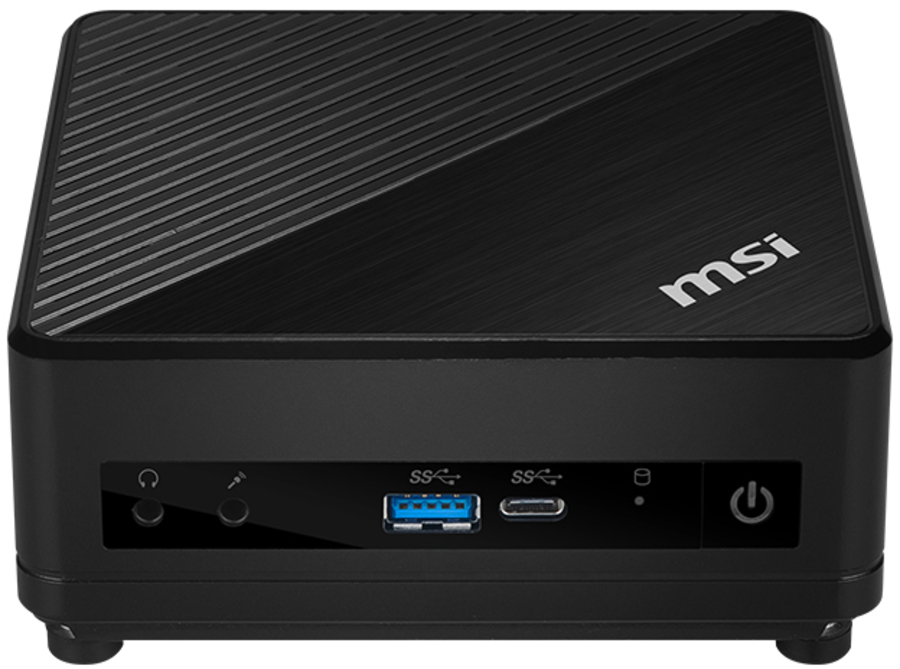

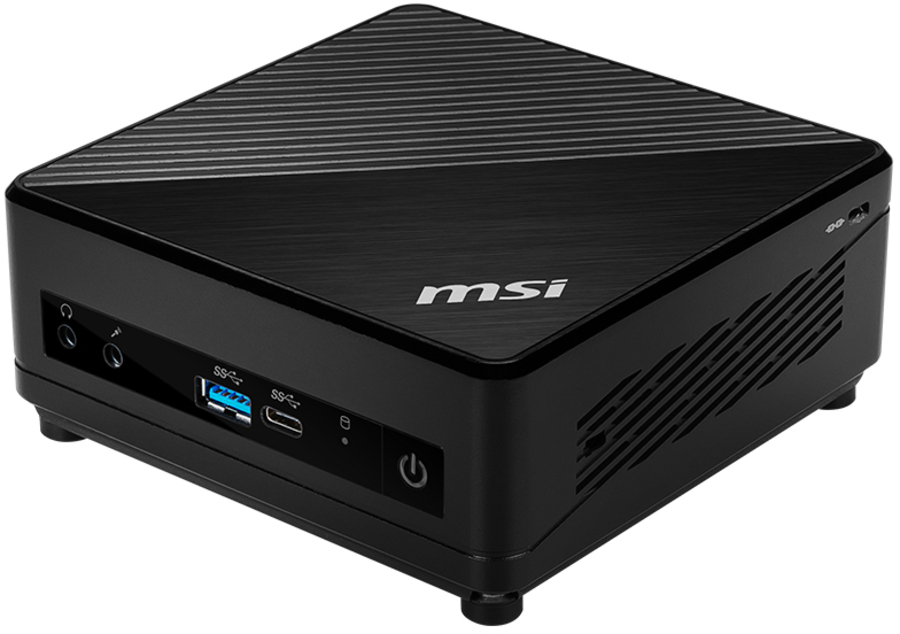

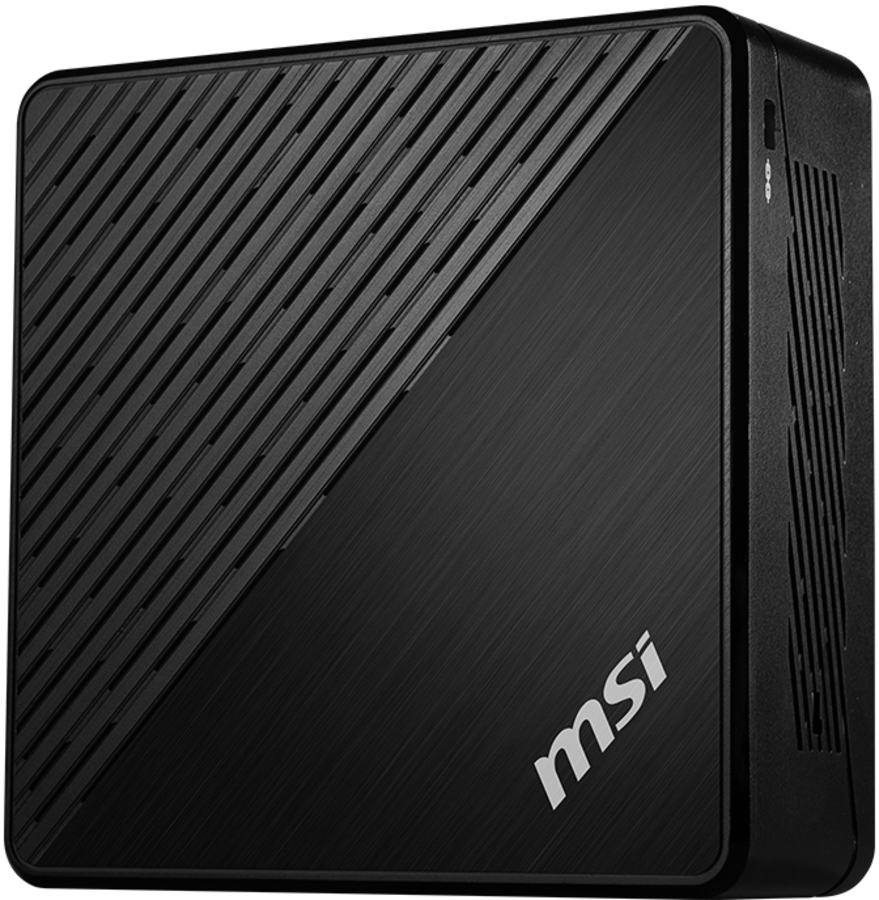

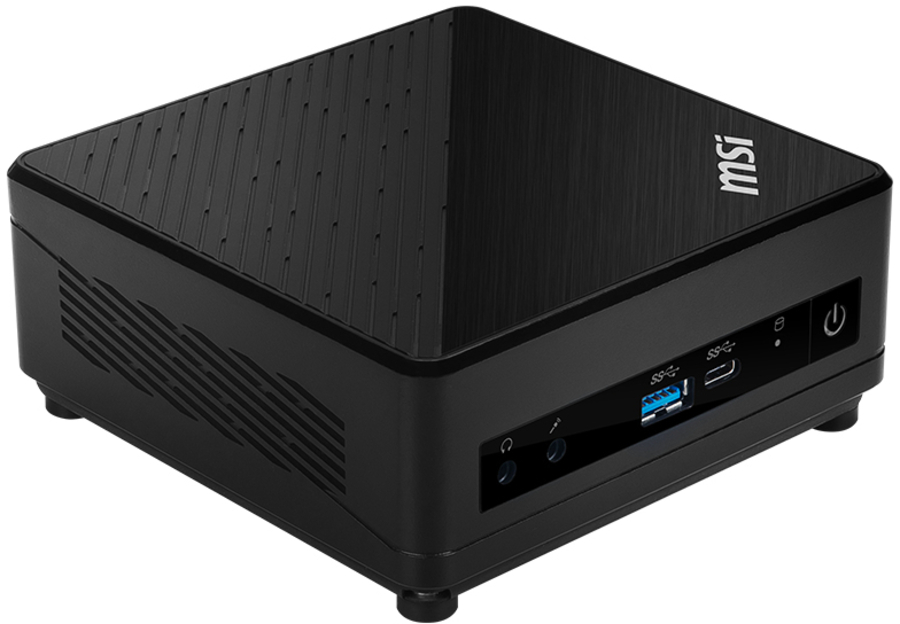

The MSI Cubi 5 is a small and powerful mini-desktop. It is suited to serve as HTPC at home, all-around media PC at home, at the office or for any commercial project.
FREE FROM LIMITATIONS
Intel® Core™ i7 processor (Comet Lake), delivering computing capability which will keep you in the flow, wherever you go.
HAND PALM-SIZED PC
MSI Cubi 5 is the smallest mini PC in its kind. With a 0.66 liter case that still provides all the elements of a desktop-worthy PC.
MOUNTABLE TO A MONITOR
Cubi 5 is designed with a mini size and supports standard VESA-mount. Mount the Cubi 5 to the back of a monitor and make the PC completely invisible.
SUPPORT EXTERNAL POWER SWITCH
Making Power Computer much easier. Cubi 5 is designed to support external power switch.
Located computer in a hard to reach area , this is a convenient switch on the desk and hitting it rather than bend down to turn the computer on.
EASY TO UPGRADE
Only remove 4 screws at the bottom cover to gain access and replace the M.2 SSD, memory modules and 2.5” HDD/SSD storage slots. It’s just that simple.
QUIET, ENERGY-EFFICIENT DESIGN
MSI Cubi 5 has an excellent thermal design and low noise fan, resulting in a low noise level of only 23.6 dB of idle mode.
USB 3.2 GEN 1 TYPE-C WITH REVERSIBLE DESIGN
Get all the performance benefits from USB 3.2 Gen1 combined with the convenience of the USB Type-C connector. This reversible connector allows for effortless connecting of USB devices.
DO MORE WORK SIMULTANEOUSLY

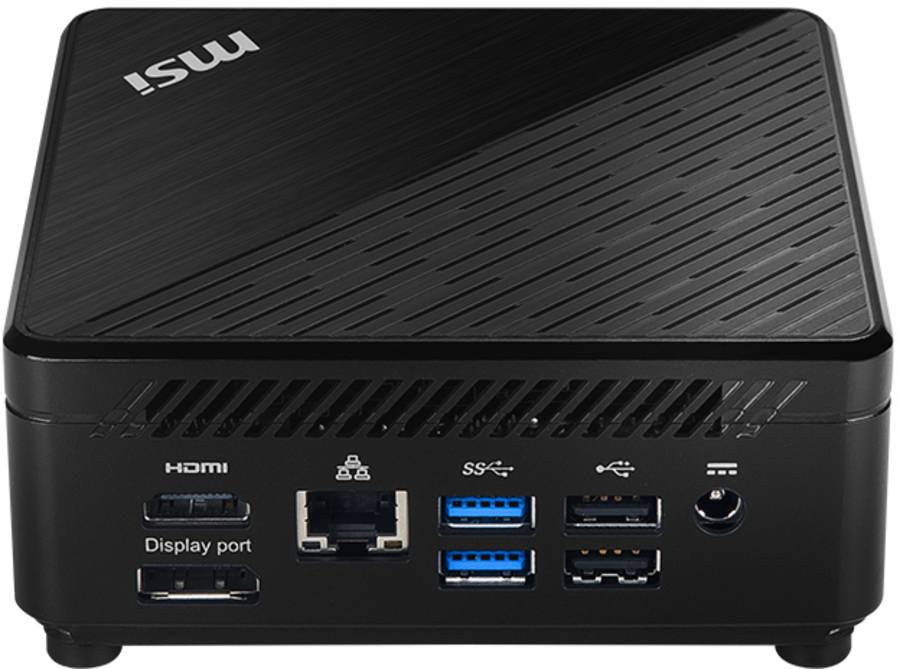

Are you watching a lot of webpages and applications on a small monitor? With the HDMI and DP ports,MSI Cubi 5 can support dual monitors, you can do and view more. |
|
Processor |
|
Processor family |
Intel® Core™ i3 |
|
Processor manufacturer |
Intel |
|
Processor model |
i3-10110U |
|
Processor frequency |
2.1 GHz |
|
Processor generation |
10th gen Intel® Core™ i3 |
|
Processor cores |
2 |
|
Processor threads |
4 |
|
Processor boost frequency |
4.1 GHz |
|
Processor socket |
BGA 1528 |
|
Processor cache |
4 MB |
|
System bus rate |
4 GT/s |
|
Processor lithography |
14 nm |
|
Processor operating modes |
64-bit |
|
Processor codename |
Comet Lake |
|
Thermal Design Power (TDP) |
15 W |
|
Configurable TDP-up frequency |
2.6 GHz |
|
Configurable TDP-up |
25 W |
|
Configurable TDP-down |
10 W |
|
Configurable TDP-down frequency |
0.8 GHz |
|
Tjunction |
100 °C |
|
PCI Express slots version |
3.0 |
|
Maximum number of PCI Express lanes |
16 |
|
PCI Express configurations |
1x4, 2x2, 1x2+2x1, 4x1 |
|
Maximum internal memory supported by processor |
64 GB |
|
Memory types supported by processor |
DDR4-SDRAM, LPDDR3-SDRAM |
|
Memory clock speeds supported by processor |
2666,2133 MHz |
|
Memory bandwidth supported by processor (max) |
41.66 GB/s |
|
Memory |
|
Internal memory |
8 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
DDR4-SDRAM |
|
Memory slots |
2x SO-DIMM |
|
Storage |
|
Total storage capacity |
256 GB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Total SSDs capacity |
256 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
256 GB |
|
Card reader integrated |
No |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel® UHD Graphics |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card base frequency |
300 MHz |
|
On-board graphics card dynamic frequency (max) |
1000 MHz |
|
Maximum on-board graphics card memory |
32 GB |
|
Number of displays supported (on-board graphics) |
3 |
|
On-board graphics card DirectX version |
12.0 |
|
On-board graphics card OpenGL version |
4.5 |
|
On-board graphics card ID |
0x9B41 |
|
Number of execution units |
23 |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.0 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
DVI port |
No |
|
HDMI version |
1.4 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.2 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Microphone in |
Yes |
|
Headphone outputs |
1 |
|
DC-in jack |
Yes |
|
Design |
|
Chassis type |
Mini PC |
|
Product colour |
Black |
|
Placement supported |
Horizontal |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Performance |
|
Product type |
Mini PC |
|
Audio chip |
Realtek ALC887 |
|
Audio output channels |
2.1 channels |
|
Software |
|
Operating system installed |
Windows 10 Home |
|
Operating system architecture |
64-bit |
|
Processor special features |
|
Intel 64 |
Yes |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Embedded options available |
No |
|
Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
|
Intel Clear Video Technology |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel TSX-NI |
No |
|
Idle States |
Yes |
|
Thermal Monitoring Technologies |
Yes |
|
Intel Stable Image Platform Program (SIPP) |
No |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Intel® Secure Key |
Yes |
|
Intel® OS Guard |
Yes |
|
Intel Trusted Execution Technology |
No |
|
Execute Disable Bit |
Yes |
|
Intel Flex Memory Access |
Yes |
|
Intel Software Guard Extensions (Intel SGX) |
Yes |
|
Processor package size |
46 x 24 mm |
|
Supported instruction sets |
SSE4.1, SSE4.2, AVX 2.0 |
|
CPU configuration (max) |
1 |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Processor ARK ID |
196451 |
|
Intel® Turbo Boost Technology |
2.0 |
|
Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
|
Intel® Quick Sync Video Technology |
Yes |
|
Intel® My WiFi Technology (Intel® MWT) |
Yes |
|
Intel® Identity Protection Technology (Intel® IPT) |
Yes |
|
Power |
|
Power supply |
65 W |
|
Operational conditions |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 85% |
|
Weight & dimensions |
|
Width |
124 mm |
|
Depth |
124 mm |
|
Height |
53.7 mm |
|
Weight |
550 g |
|
Package weight |
1.4 kg |
|
Display |
|
Display included |
No |
