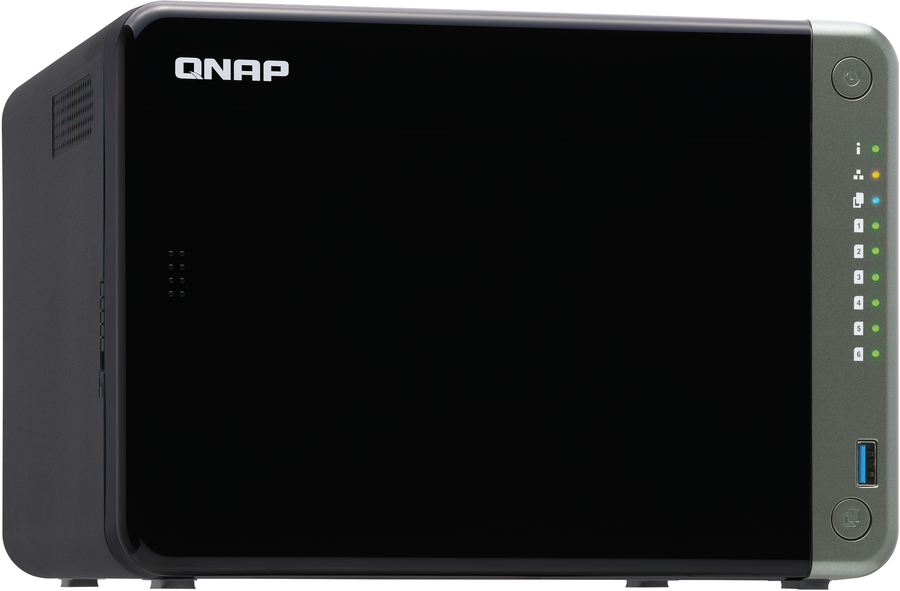

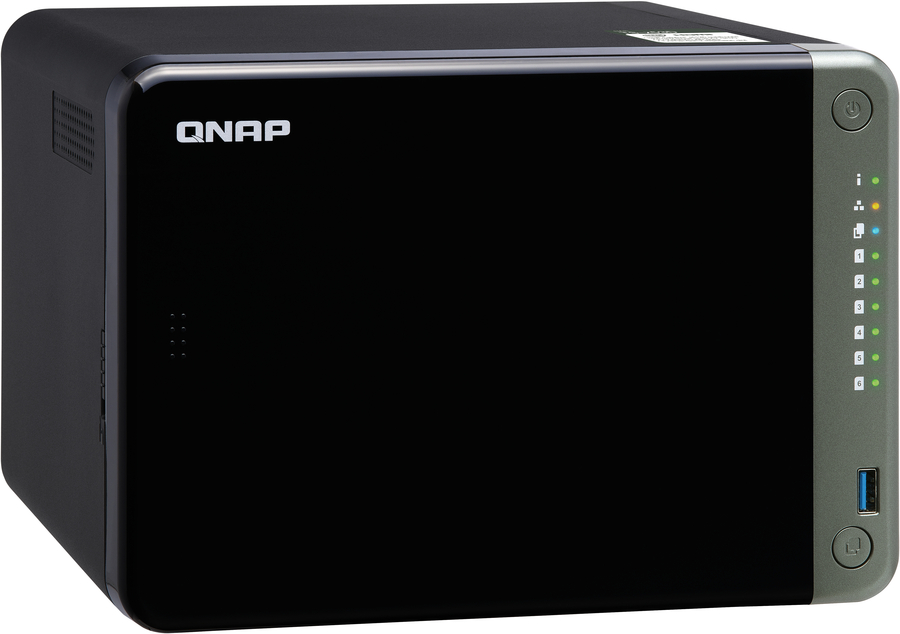

QNAP TS-653D 6-Bay Desktop NAS

Home :: Storage Devices :: NAS Devices ::


Regularly: $940.00
On Sale: $902.40    Sale Ends: April 12th, 2024

Manufacturer: QNAP

Intel Celeron J4125 (2/2.7GHz), 4GB DDR4 (2400MHz), Gigabit LAN

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
55502009 TS-653D-4G-US - Active

Details

General Information
Summary The new-gen Wi-Fi 6 (802.11ax) trend has driven higher bandwidth demands for wired and wireless network connections. By integrating Intel® Celeron® J4125 quad-core 2.0 GHz processor and 2.5GbE connectivity, the TS-653D not only provides modern businesses an excellent NAS solution to upgrade to 2.5GbE environments for productive daily backup/restore tasks, but also provides gamers with ample storage for their vast game collections. Up to 5 Gbps transfer speeds can be made by setting port trunking with the two built-in 2.5GbE ports. The TS-653D also supports PCIe expansion, multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.

Upgrade your NAS to 2.5GbE networks
The TS-653D comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps! By using QNAP’s N-BASET/Multi-Gig USB 3.2 Gen 1 to 5GbE adapter (Model name QNA-UC5G1T) or 5GbE PCIe expansion card (Model name QXG-5G1T-111C), your laptop or desktop computer can easily connect to 2.5GbE networks with the TS-653D to benefit from higher network speeds.

Virtualization
Satisfies bandwidth-demanding applications such as virtual machines and containers.

Video Streaming
Boosts transfer speeds to improve smooth 4K video streaming and display.

Gaming Storage
Mount an iSCSI LUN from the TS-653D to your computer to store your vast game collections.

Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. The QSW-1105-5T is an unmanaged switch with five 2.5GbE ports (backwards compatible with 1G/100M) and supports CAT5e cables to connect multiple computers and NAS. The QSW-1105-5T is energy-saving, low-noise, plug-and-use, and supports loop detection and blocking to provide a simple and effective high-speed network environment.

Quad-core 2.0 GHz (burst up to 2.7 GHz) with up to 8 GB memory
The TS-653D is powered by an Intel® Celeron® J4125 quad-core 2.0 GHz processor (bursts up to 2.7 GHz), features up to 8 GB DDR4 memory, and supports SATA 6 Gb/s drives. The support of Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of your NAS data. You can flexibly install SSDs for cache acceleration to maximize network and storage performance for data-intensive applications.

A secure data center for backing up device data with snapshot protection

Windows® and Mac® backup
Use the license-free QNAP NetBak Replicator utility to back up and restore files from Windows® computers. Apple’s Time Machine® is supported for backing up Mac® computers.

Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and their block-level feature makes it a dependable data protection method in the face of growing ransomware threats. The TS-653D supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.

Increase HBS backup efficiency with 2.5GbE connectivity
Hybrid Backup Sync (HBS) consolidates backup, restoration and synchronization functions (using RTRR, Rsync, FTP, CIFS/SMB) for easily transferring data in the TS-653D to local, remote and cloud storage spaces (including Microsoft One Drive®, Google Drive™, Dropbox®, and more) as a comprehensive data storage and disaster recovery plan. Supporting QuDedup technology that eliminates duplicated data at the source, HBS reduces backup data size and speeds up future backup tasks. This is also beneficial for accelerating multi-version backups for greater protection against data loss

Abundant I/O capability with PCIe expansion
The TS-653D features one PCIe 2.0 slot that allows for various expansion cards for expanding application potential.

SSD caching and auto-tiering enable 24/7 optimized storage efficiency
While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-653D supports numerous SSD-aware features that significantly maximize NAS performance with high cost-effectiveness.

Ultimate visual experience with 4K HDMI display and real-time video transcoding
The TS-653D has an HDMI 2.0 port that supports 4K (4096 x 2160) 60Hz output, allowing you to directly view multimedia content saved on the NAS on a bigger screen. The support of high-quality 4K video transcoding enables the NAS to convert videos to universal file formats that can be smoothly played on multiple devices. The TS-653D also can stream videos through DLNA®, Chromecast™, and more to satisfy versatile multimedia application needs. The QNAP RM-IR004 remote control (sold separately) can be configured using QButton to customize individual button actions, providing a more user-friendly NAS experience.

Build a Plex Media Server
By installing Plex® Media Server from App Center, setting up the Plex® Media Server on your NAS is only a few minutes away. You can stream media files stored on the TS-653D to mobiles and media streaming devices (including DLNA®, Roku®, Amazon Fire TV® and Google Chromecast™).

Move business data to the cloud flexibly and economically
The TS-653D perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

HybridMount file-based cloud gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.

All-in-one server to host virtual machines and containers
Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. You can use Network & Virtual Switch to allocate adequate physical network resources to virtual machines, containers, and the NAS to simplify network deployment.

Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.

Optimized collaboration with seamless file sharing and sync
The TS-653D centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with the Qsync utility, any file uploaded to the TS-653D will be made available for all linked devices (such as computers, laptops and mobiles). You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. With the myQNAPcloud service, you can easily and securely connect to the TS-653D via the Internet for accessing, managing, and sharing NAS files. The Windows AD® and LDAP services enable system administrators to configure user permissions by using an existing Windows AD® server, LDAP server, or the TS-653D’s built-in LDAP service.

Secure your premises with integrated surveillance solutions
QVR Pro allows you to arrange a dedicated, independent storage space for surveillance data on the TS-653D and leverage the advantages of scalable NAS storage. It greatly simplifies camera management, storage space allocation, camera live view, and playback. Supporting over 5,000 IP cameras (including all standard fisheye cameras available on the market), QVR Pro provides 8 license-free channels for surveillance monitoring and the optional QVR Pro Camera Channel Extension License for more extensive security deployment. You can also use QVR Pro Client’s mobile app to monitor anytime, or use a USB webcam as an ONVIF® network camera with the QUSBCam2 app.

More productivity applications

Notification Center
Consolidates all QTS system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

Security Counselor
A security portal for checking weaknesses and providing recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Qsirch
QNAP’s powerful, Google-like search tool for quickly finding specific images, music, videos, documents, and emails by keywords, color, and more search conditions.

Boxafe
Allows you to backup or sync files, emails, calendars and contacts from Google™ G Suite and Microsoft® Office 365® into the NAS to safeguard enterprise cloud data.

QuMagie
An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tool for ultimate photo management and sharing solution.

Qmiix
An Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity.

Expand your Storage with USB 3.2 Gen 2 (10 Gbps) - Better than eSATA!
Flexibly expand the storage capacity of the TS-653D via USB or multi-lane SATA interfaces. You can choose a high-speed USB 3.2 Gen 2 (10 Gbps) TL series JBOD, USB 3.2 Gen 1 (5 Gbps) TR series RAID expansion enclosures, or SATA 6Gbps TL series JBOD. They provide economical, flexible, high-performance and high-capacity storage expansion solutions for NAS, PC and servers.

Flexible and economical storage expansion
QNAP provides easy storage capacity expansion solutions. Here are several ways to expand your TS-653D storage as needed to accommodate data and business growth.

Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

Attach Expansion Enclosures
Connect two TR-004 RAID expansion enclosures, or one 8-bay TL-D800C USB 3.2 Gen 2 JBOD, or one 16-bay TL-D1600S SATA 6 Gb/s JBOD, and use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.

Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Storage
Storage drives installed No
Number of storage drives supported 6
Supported storage drive types HDD & SSD
RAID support Yes
Supported storage drive interfaces Serial ATA II, Serial ATA III
Storage drive sizes supported 2.5,3.5"
RAID levels 0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration Yes
Online RAID expansion Yes
RAID rebuild Yes
Hot-swap drive bays Yes
Supported file systems FAT32, HFS+, NTFS, exFAT, ext3, ext4
Bad block scan Yes
Disk roaming Yes
Processor
Processor family Intel® Celeron®
Processor manufacturer Intel
Processor model J4125
Processor frequency 2 GHz
Processor boost frequency 2.7 GHz
Processor cores 4
Processor threads 4
Processor cache 4 MB
CPU configuration (max) 1
PCI Express configurations 1x4+1x2, 4x1, 2x1+1x2+1x2
PCI Express slots version 2.0
Processor codename Gemini Lake Refresh
Processor lithography 14 nm
Processor operating modes 64-bit
Processor package size 25 x 24 mm
Processor socket BGA 1090
Tjunction 105 °C
Thermal Design Power (TDP) 10 W
On-board graphics card model Intel® UHD Graphics 600
Maximum internal memory supported by processor 8 GB
Memory
Internal memory 4 GB
Internal memory type DDR4
Memory clock speed 2400 MHz
Maximum RAM supported 8 GB
Memory slots 2
Memory form factor SO-DIMM
Flash memory 4096 MB
Network
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
DHCP client Yes
DHCP server Yes
Jumbo frames support Yes
iSCSI support Yes
Wake-on-LAN ready Yes
Link aggregation Yes
Load balancing system Yes
Dynamic DNS (DDNS) Yes
WLAN adapter supported Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
USB port Yes
USB 2.0 ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
HDMI ports quantity 1
HDMI version 2.0
Graphics
On-board graphics card base frequency 250 MHz
On-board graphics card burst frequency 750 MHz
On-board graphics card dynamic frequency (max) 750 MHz
On-board graphics card DirectX version 12.0
On-board graphics card OpenGL version 4.4
On-board graphics card ID 0x3185
Maximum on-board graphics card memory 8 GB
Number of displays supported (on-board graphics) 3
Design
Chassis type Tower
Cooling type Active
Product colour Black
Number of fans 2 fan(s)
Fan diameter 9 cm
LED indicators HDD, LAN, Power, Status, USB
Cable lock slot Yes
Cable lock slot type Kensington
Performance
Type NAS
Device class Small & Medium Business
Backup function Yes
Backup features Cloud, USB drive, iSCSI LUN
Buzzer Yes
Noise level 21.3 dB
Third-party support Yes
Snapshot Yes
Management protocols SNMP
Web-based management Yes
Share folder access right management Yes
Security algorithms 256-bit AES, FIPS 140-2, HTTPS
Access Control List (ACL) Yes
Reset button Yes
On/off switch Yes
Built-in BitTorrent client Yes
Built-in FTP server Yes
System log Yes
Hot spare Yes
S.M.A.R.T. support Yes
Backup button Yes
Universal Plug and Play (UPnP) Yes
USB copy function Yes
Software
Operating system installed QNAP Turbo System
Operating system version 4.4.2
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported Yes
Mac operating systems supported Yes
Server operating systems supported Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power
Power supply location External
Power supply unit (PSU) capacity 120 W
Power consumption (typical) 35.437 W
Power consumption (sleep) 18.634 W
AC input voltage 100 - 240 V
Fan voltage 12 V
Weight & dimensions
Width 235 mm
Depth 226 mm
Height 168 mm
Weight 2.87 kg
Package weight 4.56 kg
Packaging content
External power adapter Yes
Cables included AC, LAN (RJ-45)
Processor special features
Embedded options available No
Enhanced Intel SpeedStep Technology Yes
Execute Disable Bit Yes
Idle States Yes
Intel 64 Yes
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel® AES New Instructions (Intel® AES-NI) Yes
Intel® Anti-Theft Technology (Intel® AT) No
Intel® Hyper Threading Technology (Intel® HT Technology) No
Intel® Identity Protection Technology (Intel® IPT) Yes
Intel® OS Guard Yes
Intel® Quick Sync Video Technology Yes
Intel® Secure Key Yes
Intel® Smart Response Technology No
Intel® Turbo Boost Technology No
Maximum number of PCI Express lanes 6
Number of execution units 12
Thermal Monitoring Technologies Yes
UART Yes
Memory types supported by processor DDR4-SDRAM, LPDDR4-SDRAM
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Other features
Processor ARK ID 197305

Multimedia
