General Information |
|
Summary |
Fast and scalable all-flash NAS

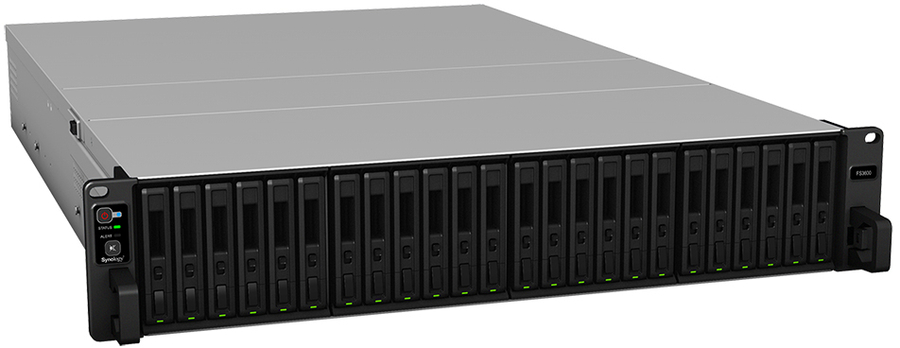

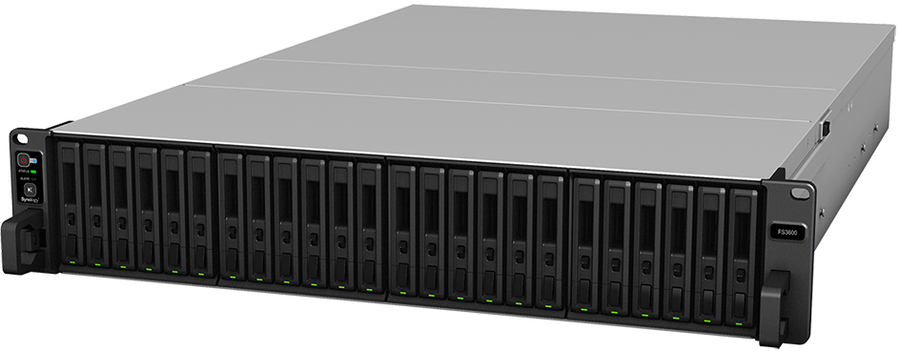

FS3600 is a 24-bay all-flash Synology NAS for enterprise use that boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP). Featuring a 12-core CPU and high-speed network connection, FS3600 delivers over 195,000 iSCSI 4K random write IOPS1 to satisfy enterprise demand for high-speed infrastructure.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Real-time collaboration on your private cloud
Synology Office is a collaboration package combining the convenience and usability of the public cloud with private cloud privacy and security. It enables seamless collaboration on documents and spreadsheets in a protected environment.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
- Automatic file self-healing detects and recovers corrupted files without user intervention |
|
Storage |
|
Storage drives installed |
No |
|
Total installed storage capacity |
0 TB |
|
Number of storage drives installed |
0 |
|
Number of storage drives supported |
24 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
Storage drive capacity |
0 GB |
|
RAID support |
Yes |
|
Supported storage drive interfaces |
Serial ATA III, Serial Attached SCSI (SAS) |
|
Hot-swap drive bays |
Yes |
|
Supported file systems |
BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4 |
|
Processor |
|
Processor family |
Intel® Xeon® D |
|
Processor manufacturer |
Intel |
|
Processor model |
D-1567 |
|
Processor frequency |
2.1 GHz |
|
Processor boost frequency |
2.7 GHz |
|
Processor cores |
12 |
|
Processor threads |
24 |
|
Processor cache |
18 MB |
|
L3 cache |
18 MB |
|
CPU configuration (max) |
1 |
|
PCI Express configurations |
1x16, 1x4, 1x8 |
|
PCI Express slots version |
2.0, 3.0 |
|
Processor cache type |
L3 |
|
Processor code |
SR2M3 |
|
Processor codename |
Broadwell |
|
Processor lithography |
14 nm |
|
Processor operating modes |
64-bit |
|
Processor package size |
37.5 x 37.5 mm |
|
Processor series |
Intel Xeon D-1500 |
|
Processor socket |
BGA 1667 |
|
Scalability |
1S |
|
Stepping |
Y0 |
|
Thermal Design Power (TDP) |
65 W |
|
Maximum internal memory supported by processor |
128 GB |
|
Conflict-Free processor |
Yes |
|
Memory |
|
Internal memory |
16 GB |
|
Internal memory type |
DDR4 |
|
Maximum RAM supported |
128 GB |
|
Memory slots |
4 |
|
Memory form factor |
DIMM |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000,10000 Mbit/s |
|
iSCSI support |
Yes |
|
Supported network protocols |
SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP) |
|
Dynamic DNS (DDNS) |
Yes |
|
Ports & interfaces |
|

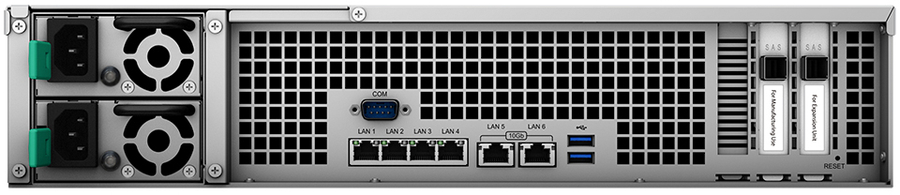

Ethernet LAN (RJ-45) ports |
6 |
|
USB port |
Yes |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Fiber ports quantity |
0 |
|
Design |
|
Chassis type |
Rack (2U) |
|
Cooling type |
Active |
|
Product colour |
Black |
|
Number of fans |
4 fan(s) |
|
Fan diameter |
8 cm |
|
Performance |
|
Type |
NAS |
|
Device class |
Small & Medium Business |
|
Backup function |
Yes |
|
Backup features |
Cloud, USB drive |
|
Noise level |
57 dB |
|
Power |
|
Power supply location |
Built-in |
|
Power supply unit (PSU) capacity |
500 W |
|
Number of power supply units |
1 |
|
Redundant power supply (RPS) support |
Yes |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width |
482 mm |
|
Depth |
724 mm |
|
Height |
88 mm |
|
Weight |
14.9 kg |
|
Processor special features |
|
Embedded options available |
Yes |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Execute Disable Bit |
Yes |
|
Idle States |
Yes |
|
Intel 64 |
Yes |
|
Intel Enhanced Halt State |
Yes |
|
Intel Secure Key Technology version |
1.00 |
|
Intel Trusted Execution Technology |
Yes |
|
Intel TSX-NI |
Yes |
|
Intel TSX-NI version |
1.00 |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
|
Intel® OS Guard |
Yes |
|
Intel® Secure Key |
Yes |
|
Intel® Turbo Boost Technology |
2.0 |
|
Maximum number of PCI Express lanes |
32 |
|
Thermal Monitoring Technologies |
Yes |
|
UART |
Yes |
|
Memory types supported by processor |
DDR3-SDRAM, DDR4-SDRAM |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Logistics data |
|
Harmonized System (HS) code |
84714100 |
|
Other features |
|
Compliance certificates |
RoHS |
|
Processor ARK ID |
93356 |
