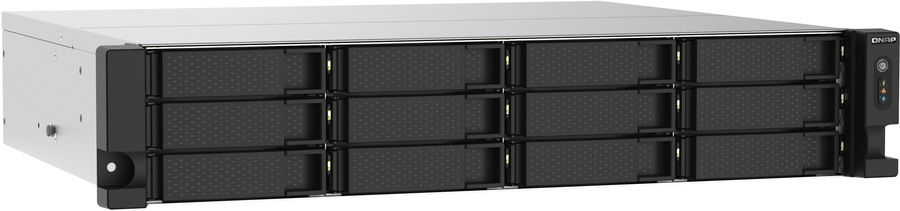

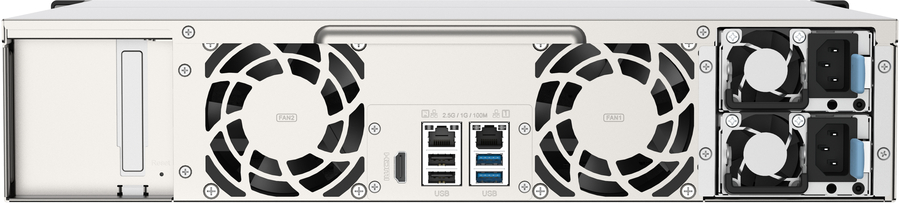

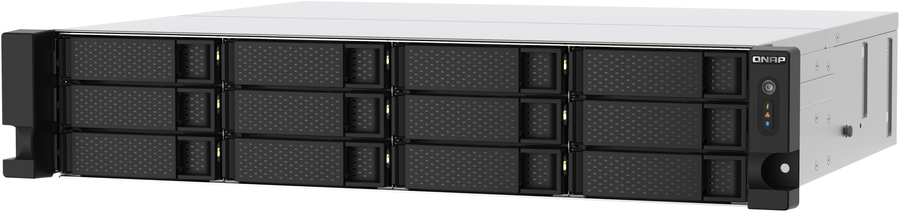

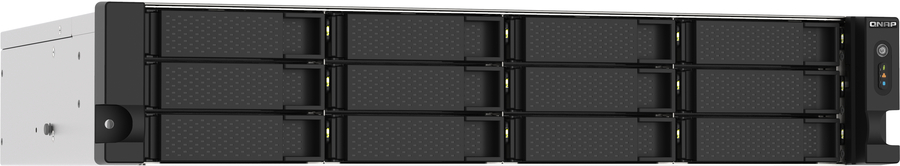

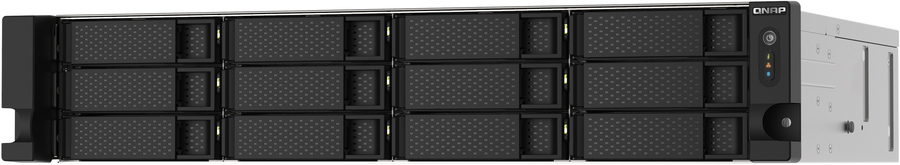

QNAP TS-1253DU-RP-4G 12-Bay NAS

Home :: Storage Devices (HDDs) :: NAS Devices ::


Price: $2688.00

Manufacturer: QNAP

Intel Celeron J4125 (2/2.7GHz), 4GB DDR4, Gigabit LAN

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
55562103 TS-1253DU-RP-4G-US - Active

Details

General Information
Summary Powered by an Intel® Celeron® J4125, quad-core 2.0 GHz processor, the TS-1253DU-RP features two 2.5GbE RJ45 ports, providing up to 2.5 times the speed of Gigabit Ethernet and enabling smoother multimedia playback and everyday usage. With a PCIe Gen 2.0 x 2 slot, the TS-1253DU-RP provides flexibility in extending NAS functionality, allowing you to install various cards for extra network ports, M.2 SSD caching/tiering, or Wi-Fi connectivity. The TS-1253DU-RP ensures data security with AES 256-bit encryption, boosting system performance while ensuring the safety of sensitive business data stored.

Build a Faster Network with QNAP
Powered by an Intel® Celeron® J4125 quad-core 2.0 GHz processor (burst up to 2.70 GHz), DDR4 dual-channel RAM (up to 8GB), two 2.5GbE Gigabit LAN ports, the TS-1253DU-RP provides smoother multimedia playback and everyday NAS usage. Additional high-speed network options from QNAP include USB 3.2 Gen 1 to 2.5GbE/5GbE adapters (supports N-BASET/Multi-Gig), QXG 5GbE/10GbE PCIe cards, and QNAP QSW 10GbE switches. All these options allow users to revolutionize their home network at a cost-effective price.

Extend NAS Functionality with a PCIe Card
With a PCIe Gen 2.0 x 2 slot, the TS-1253DU-RP provides flexibility in extending NAS functionality and potential applications. To optimize system performance, install a QNAP QM2 card to add M.2 SATA or NVMe SSD caching/10GbE connectivity and use with Qtier tiered storage for optimal system performance. Wireless connectivity can be added by installing a QNAP QWA-AC2600. A QXG-10GbE/5GbE network card adds extra high-speed network ports. Alternatively, you can add an affordable QNAP QNA-UC5G1T USB 3.2 Gen 1 to 5GbE adapter to enjoy higher network speeds or boost the USB connectivity by installing a USB 3.2 Gen 2 (10Gbps) card.

SSD Caching and Auto Tiering for Optimized Storage Efficiency
The TS-1253DU-RP supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-1253DU-RP with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Easy and Secure File Management
File Station centralizes files stored on your TS-1253DU-RP and in the cloud. You can easily upload files from your computer, drag and drop files between folders, rename files, delete files, and configure file and folder permissions to prevent unauthorized access. With Microsoft Office Online you can directly open and modify Microsoft Office documents stored on the TS-1253DU-RP without having to download them to your local device. When sharing sensitive/confidential files on the TS-1253DU-RP, use File Station to encrypt files into .qenc files, set a password, and use QENC Decrypter to decrypt the file.

Multi-Point File Backup, Access, and Sync
The TS-1253DU-RP supports common file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows®, Mac®, and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-1253DU-RP becomes available for all linked devices, such as computers, laptops, and mobile devices. Hybrid Backup Sync helps you easily backup or synchronize data on the TS-1253DU-RP to another QNAP NAS, remote server, or cloud storage for disaster recovery. Additionally, QuDedup technology greatly improves the efficiency and storage utilization of multi-version backup by deduplicating the backup data. You can install the QuDedup Extract Tool on your computer and restore deduplicated files to their normal status.

Protect Important Data with Snapshots
Snapshots fully record the NAS system state and metadata and can be used to quickly restore files to previously-recorded states if they are accidentally deleted/modified or if the system is compromised by ransomware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data.

Stay Notified of System Status and Security
Notification Center consolidates all QTS system events and alerts, providing you with a single-app solution for notifications. Security Counselor evaluates and recommends settings to improve NAS security.

Low-latency Access to Cloud-based Data
The TS-1253DU-RP can be integrated with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TS-1253DU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud solution.

HybridMount File-based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit cloud-based files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud Block-based Cloud Gateway
Mount object cloud storage as a block-based volume or LUN on a NAS. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes (such as addition, modification, or deletion) will be transmitted. This is ideal for enterprise-level applications with large file transfer requirements (such as databases, VM volumes, and videos).

Next-generation Surveillance Solution
QVR Pro allows you to establish dedicated, independent storage space for surveillance data on a TS-1253DU-RP and leverage the advantages of scalability and storage manageability of QTS. With QVR Pro, camera management, storage space allocation, camera live view and playback is greatly simplified, and the QVR Pro Client mobile app allows for universal monitoring of surveillance feeds.

NAS as a Multi-OS Platform
Virtualization Station and Container Station provide comprehensive solutions for creating virtualized environments to improve business IT infrastructure, workflows, and productivity.

Virtualization Station
Virtualization Station allows you to run multiple Windows®, Linux®, UNIX® and Android™ virtual machines on the TS-1253DU-RP. You can use Virtual Network Computing (VNC) through a browser to operate virtual machines. Virtualization Station is ideal for organizations to run multiple applications on a single NAS.

Container Station
Container Station integrates LXC and Docker® lightweight virtualization technologies. Download apps from the built-in Docker Hub® to easily import/export container apps and manage access controls to enjoy the benefits of easy installation, transferability and high-efficiency.

High-speed 2.5GbE VM Backup Solution
With Hyper Data Protector, the TS-1253DU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. With 2.5GbE connectivity, backup and restoration times are greatly reduced, providing a cost-effective solution for disaster recovery.

Flexible and economical storage expansion
QNAP provides easy storage capacity expansion solutions. Here are several ways to expand the TS-1253DU-RP storage to accommodate data growth:

Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-1253DU-RP.

Attach Expansion Enclosures
Connect two expansion enclosures (TR-004U) or one USB 3.2 Gen 2 JBOD (TL-R1200C-RP) and use the Storage & Snapshots Manager to handle NAS capacity expansion.

Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Multiply Your Productivity
The app-driven QTS operating system provides solutions for simplifying file backup, management, search, and more.

QmailAgent
Centrally manage and switch between different email accounts, back up emails to the TS-1253DU-RP, and safeguard email security and personal privacy.

Notes Station 3
Notes Station 3 provides the advantages of collaborative note-taking with improved productivity to provide higher efficiency for your workgroup.

Smart Filing
Qfiling automates file organization. Files are automatically archived into folders based on your settings.

Full-Text Search
Qsirch quickly finds images, music, videos, documents, emails, and other files.
Storage
Storage drives installed N
Number of storage drives supported 12
Supported storage drive types HDD & SSD
RAID support Y
Hot-swap drive bays Y
Supported storage drive interfaces Serial ATA II, Serial ATA III
Storage drive sizes supported 2.5,3.5"
RAID levels 0,1,5,6,10,50,60,JBOD
Online RAID migration Y
Online RAID expansion Y
RAID rebuild Y
Supported file systems FAT32,HFS+,NTFS,exFAT,ext3,ext4
Bad block scan Y
Disk roaming Y
Processor
Processor family Intel® Celeron®
Processor manufacturer Intel
Processor model J4125
Processor frequency 2 GHz
Processor boost frequency 2.7 GHz
Processor cores 4
Processor threads 4
Processor cache 4 MB
CPU configuration (max) 1
PCI Express configurations 1x4+1x2,4x1,2x1+1x2+1x2
PCI Express slots version 2.0
Processor codename Gemini Lake Refresh
Processor lithography 14 nm
Processor operating modes 64-bit
Processor package size 25 x 24 mm
Processor socket BGA 1090
Tjunction 105 °C
Thermal Design Power (TDP) 10 W
On-board graphics adapter model Intel® UHD Graphics 600
Maximum internal memory supported by processor 8 GB
Memory
Internal memory 4 GB
Internal memory type DDR4
Maximum RAM supported 8 GB
Memory slots 2
Memory form factor SO-DIMM
Flash memory 4096 MB
Network
Ethernet LAN Y
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
DHCP client Y
DHCP server Y
Jumbo frames support Y
iSCSI support Y
Wake-on-LAN ready Y
Link aggregation Y
Load balancing system Y
Dynamic DNS (DDNS) Y
WLAN adapter supported Y
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
USB port Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
HDMI ports quantity 1
HDMI version 1.4b
Graphics
On-board graphics adapter base frequency 250 MHz
On-board graphics adapter burst frequency 750 MHz
On-board graphics adapter dynamic frequency (max) 750 MHz
On-board graphics adapter DirectX version 12.0
On-board graphics adapter OpenGL version 4.4
On-board graphics adapter ID 0x3185
Maximum on-board graphics adapter memory 8 GB
Number of displays supported (on-board graphics) 3
Design
Chassis type Rack (2U)
Cooling type Active
Product colour Aluminium, Black
Number of fans 2 fan(s)
Fan diameter 8 cm
LED indicators HDD, LAN, Power, Status
Performance
Type NAS
Device class Small & Medium Business
Backup function Y
Backup features Cloud, iSCSI LUN
Buzzer Y
Noise level 24.6 dB
Third-party support Y
Snapshot Y
Management protocols SNMP
Web-based management Y
Share folder access right management Y
Security algorithms 256-bit AES,FIPS 140-2,HTTPS,SNMP
Access Control List (ACL) Y
Reset button Y
On/off switch Y
Built-in FTP server Y
Browser supported Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox
System log Y
Hot spare Y
S.M.A.R.T. support Y
Universal Plug and Play (UPnP) Y
Software
Operating system installed QNAP Turbo System
Operating system version 4.4.2
Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Linux operating systems supported Y
Mac operating systems supported Y
Server operating systems supported Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Power
Power supply location Built-in
Power supply unit (PSU) capacity 300 W
Number of power supply units 2
Redundant power supply (RPS) support Y
Power consumption (typical) 71.195 W
Power consumption (sleep) 36.233 W
AC input voltage 100 - 240 V
Fan voltage 12 V
Weight & dimensions
Width 482.2 mm
Depth 423.8 mm
Height 88.7 mm
Weight 9.43 kg
Package weight 14.1 kg
Packaging content
Cables included AC, LAN (RJ-45)
Processor special features
Embedded options available N
Enhanced Intel SpeedStep Technology Y
Execute Disable Bit Y
Idle States Y
Intel 64 Y
Intel Virtualization Technology (VT-x) Y
Intel Virtualization Technology for Directed I/O (VT-d) Y
Intel VT-x with Extended Page Tables (EPT) Y
Intel® AES New Instructions (Intel® AES-NI) Y
Intel® Anti-Theft Technology (Intel® AT) N
Intel® Hyper Threading Technology (Intel® HT Technology) N
Intel® Identity Protection Technology (Intel® IPT) Y
Intel® OS Guard Y
Intel® Quick Sync Video Technology Y
Intel® Secure Key Y
Intel® Smart Response Technology N
Intel® Turbo Boost Technology N
Maximum number of PCI Express lanes 6
Number of execution units 12
Thermal Monitoring Technologies Y
UART Y
Memory types supported by processor DDR4-SDRAM,LPDDR4-SDRAM
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Other features
Processor ARK ID 197305

Multimedia
