ALOGIC Thunderbolt 3.0 / USB-C TURBO Docking Station Dual Display 4K@60Hz
|
|
Regularly: $311.00
On Sale: $298.56
Sale Ends:
April 26th, 2024
Manufacturer:
ALOGIC
USB-C 3.1 Gen 2, USB-A 3.1 Gen 2, USB-A 3.1 Gen 1, RJ-45, DisplayPort, 3.5 mm, 3840 x 2160px max, Space Grey
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
55837724
|
TB3DTRG2
|
9350784019257 |
Active
|
Details
|
General Information |
|
Summary |
ALOGIC Thunderbolt 3.0 TURBO Docking Station with USB-C support is one of its kind next generation Thunderbolt 3 dock with cross compatibility across both Thunderbolt 3 and USB-C laptops. It uses full 40Gbps bandwidth when connected to a Thunderbolt 3 laptop to support dual 4K@60H monitors (DisplayPort), 2 x USB-C (10G), 1 x USB-A (10G), 2 x USB-A (5G), Gigabit Ethernet and Combo headphone and mic jack, while charging your laptop with 60W of power. The same dock when connected to a USB-C laptop will also support dual 1080P monitors along with all the other downstream ports and charge the laptop with 60W of power.
Truly Universal
The dock provides universal compatibility across both Mac and Windows for dual monitor support over all laptops with Thunderbolt 3 or USB-C ports. This enables IT professionals to deploy the TURBO dock as a single dock solution across all users, in turn enabling hot desk setups at workplaces with cross platform laptops enabled with either Thunderbolt 3 or USB-C outputs.
High-Definition Dual Display

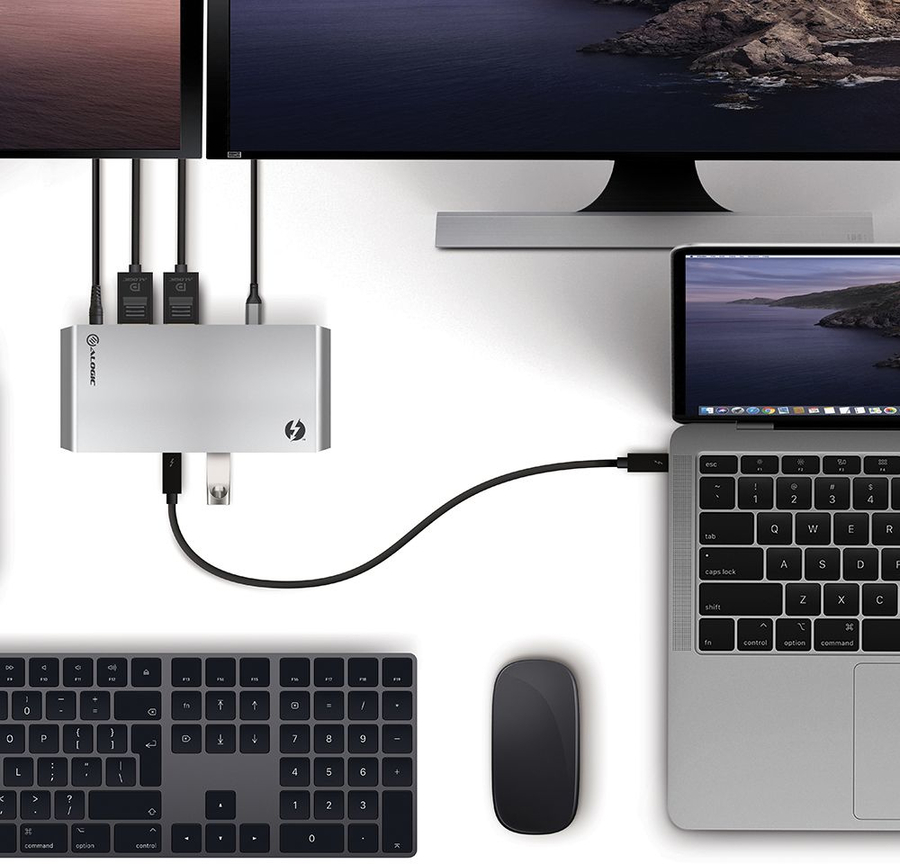

The TURBO dock supports dual monitors with 4K@60Hz via the twin DisplayPort outputs when connected to a Thunderbolt 3 enabled laptop. It will also support dual monitor with 1080p resolution or a single 4K@30Hz monitor when connected to a USB-C enabled laptop.
Complete Connectivity

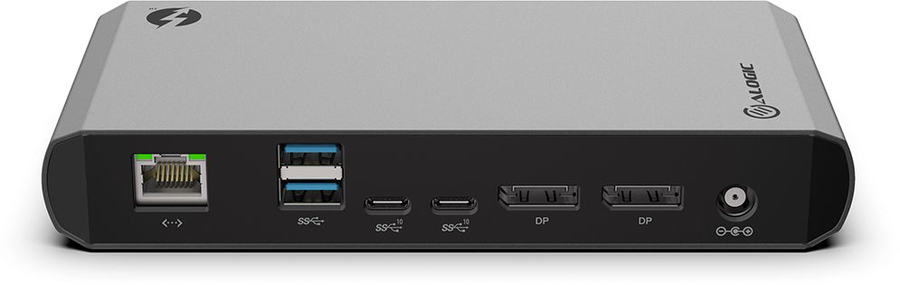

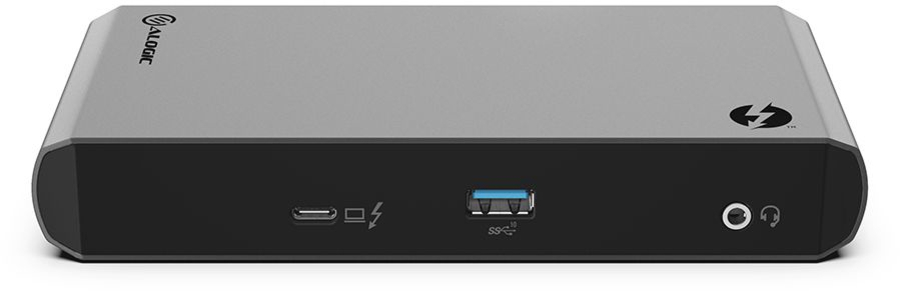

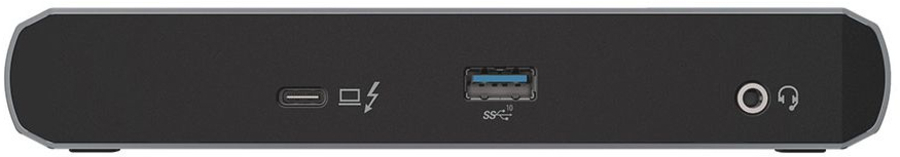

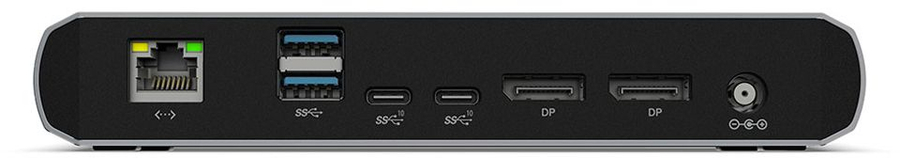

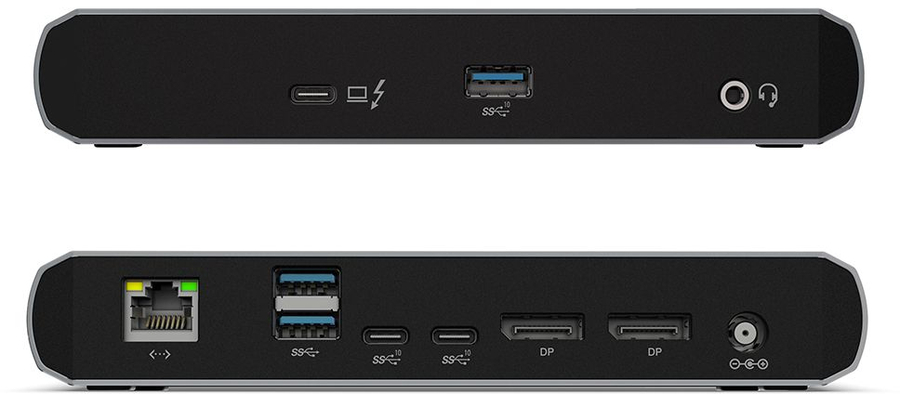

The ALOGIC TURBO dock features 2 x DisplayPort, 2 x USB-C (10G), 1 x USB-A (10G), 2 x USB-A (5G), Gigabit Ethernet and Combo headphone and mic jack to cover all the connectivity requirements. |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Headphone outputs |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
|
USB Power Delivery |
Yes |
|
USB Power Delivery up to |
60 W |
|
DisplayPorts quantity |
2 |
|
Combo headphone/mic port |
Yes |
|
Headphone connectivity |
3.5 mm |
|
DC-in jack |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Performance |
|
Product colour |
Black, Grey |
|
Card reader integrated |
No |
|
Data transfer rate |
10 Gbit/s |
|
HD type |
4K Ultra HD |
|
Maximum digital resolution |
3840 x 2160 pixels |
|
Cable lock slot |
Yes |
|
Software |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
|
Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
|
Weight & dimensions |
|
Width |
80 mm |
|
Depth |
170 mm |
|
Height |
27 mm |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Packaging content |
|
AC adapter included |
Yes |
|
Manual |
Yes |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
