General Information |
|
Summary |
Create a one-of-a-kind experience with this powerful, ultra short-throw projector.
Captivate your audience with vibrant, incredible signage displays using the PowerLite 805F ultra short-throw laser projector. Offering 5,000 lumens of brightness and Full HD 1080p technology, the PowerLite 805F transforms a variety of spaces with vibrant, true-to-life images up to 130" diagonal. Ideal for in-store displays, gallery walls, restaurant décor and more, this versatile ultra short-throw digital signage projector easily delivers sharp, colorful images, even in small spaces, and includes comprehensive content management software for customizing displays with unique creative effects. Plus, with a virtually maintenance-free, 20,000-hour optical laser light source engine with no lamps to replace, projecting eye-catching signage has never been more convenient. |
|
Projector |
|
Projector brightness |
5000 ANSI lumens |
|
Projection technology |
3-Chip DLP |
|
Projector native resolution |
WXGA (1366x768) |
|
Native aspect ratio |
16:9 |
|
Screen size compatibility |
1651 - 3302 mm (65 - 130") |
|
Supported aspect ratios |
4:3, 16:10, 16:6, 21:9 |
|
Projection distance |
0.27 - 0.37 m |
|
Contrast ratio (dynamic) |
2500000:1 |
|
Number of colours |
1.07 billion colours |
|
Keystone correction, horizontal |
3° |
|
Keystone correction, vertical |
3° |
|
Matrix type |
3-panel (p-Si TFT active) |
|
White light output |
5000 ANSI lumens |
|
Colour light output |
5000 ANSI lumens |
|
Light source |
|
Light source type |
Laser |
|
Service life of light source |
20000 h |
|
Lens system |
|
Focus |
Manual |
|
Fixed focal length |
3.9 mm |
|
Zoom capability |
Yes |
|
Zoom type |
Auto |
|
Zoom ratio |
1.35:1 |
|
Throw ratio |
0.27 - 0.37 |
|
Video |
|
Full HD |
Yes |
|
3D |
No |
|
Supported graphics resolutions |
1366 x 768 |
|
Supported video modes |
1080p |
|

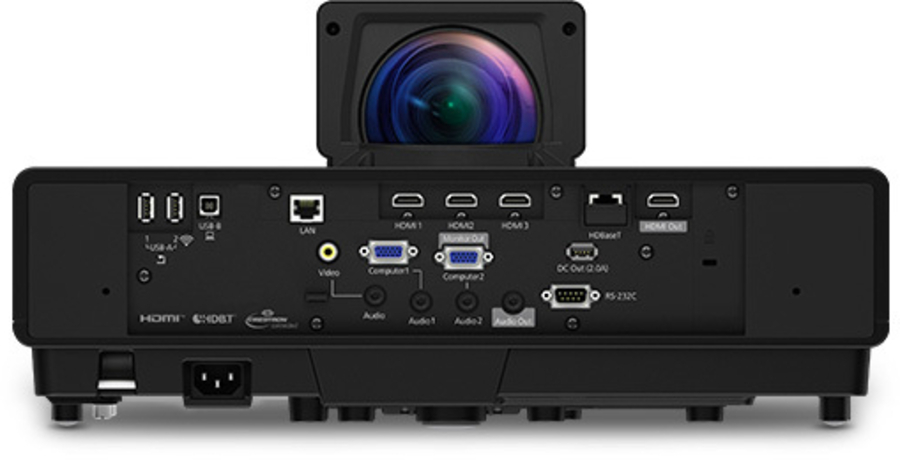

Ports & interfaces |
|
VGA (D-Sub) ports quantity |
2 |
|
HDMI ports quantity |
4 |
|
Composite video in |
1 |
|
DVI port |
No |
|
USB 2.0 ports quantity |
3 |
|
Serial interface type |
RS-232C |
|
HDMI connector type |
Full-size |
|
HDBaseT port |
Yes |
|
USB 2.0 Type-A ports quantity |
2 |
|
USB 2.0 Type-B ports quantity |
1 |
|
PC in (D-Sub) |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
|
Features |
|
Noise level |
36 dB |
|
Interactive |
No |
|
Country of origin |
China |
|
Design |
|
Product type |
Ultra short throw projector |
|
Market positioning |
Education |
|
Product colour |
Black |
|
Power |
|
Power source |
AC |
|
Power consumption (typical) |
381 W |
|
Power consumption (standby) |
2 W |
|
Power consumption (PowerSave) |
0.5 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Supplier features |
|
Battery type |
AA |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Weight & dimensions |
|
Weight |
9.71 kg |
|
Width |
459.7 mm |
|
Depth |
449.6 mm |
|
Height |
228.6 mm |
|
Packaging content |
|
Remote control included |
Yes |
|
Batteries included |
Yes |
|
Manual |
Yes |
