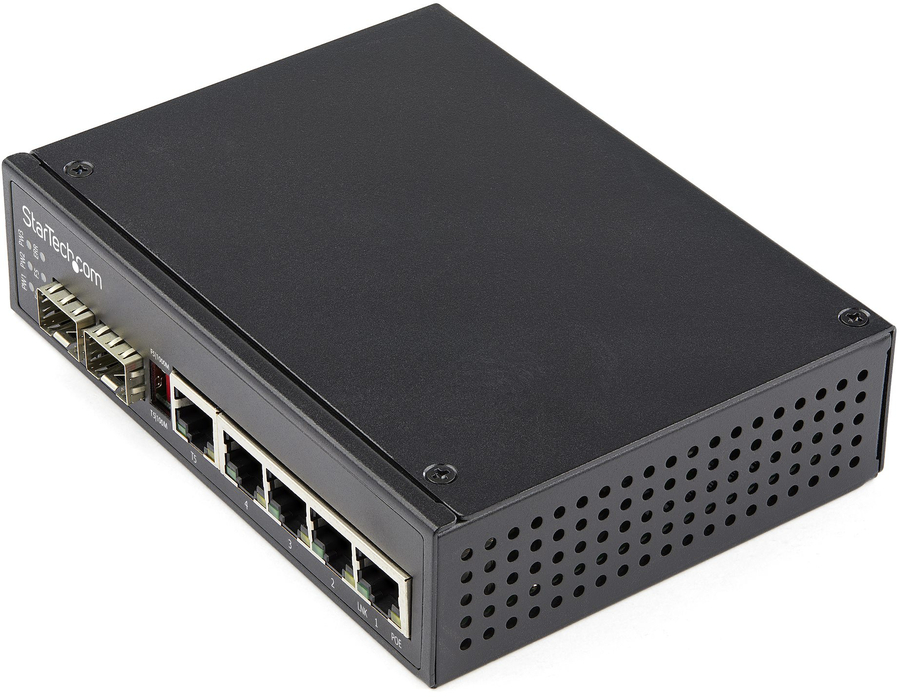

Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 48V DC | DIN Rail Mountable

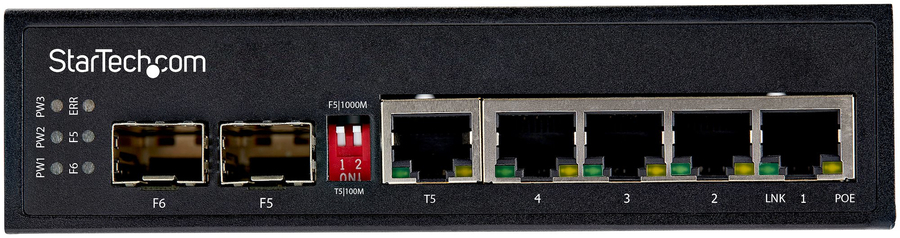

Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
Power Over Ethernet & 48V Voltage
With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
• Cameras
• Sensors
• Wi-Fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

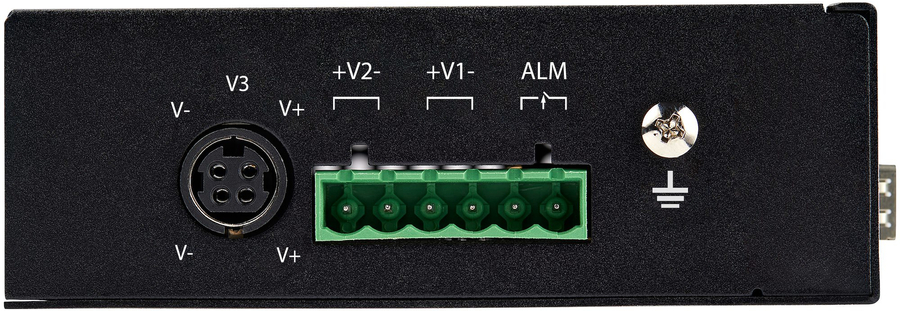

Dual Power Inputs

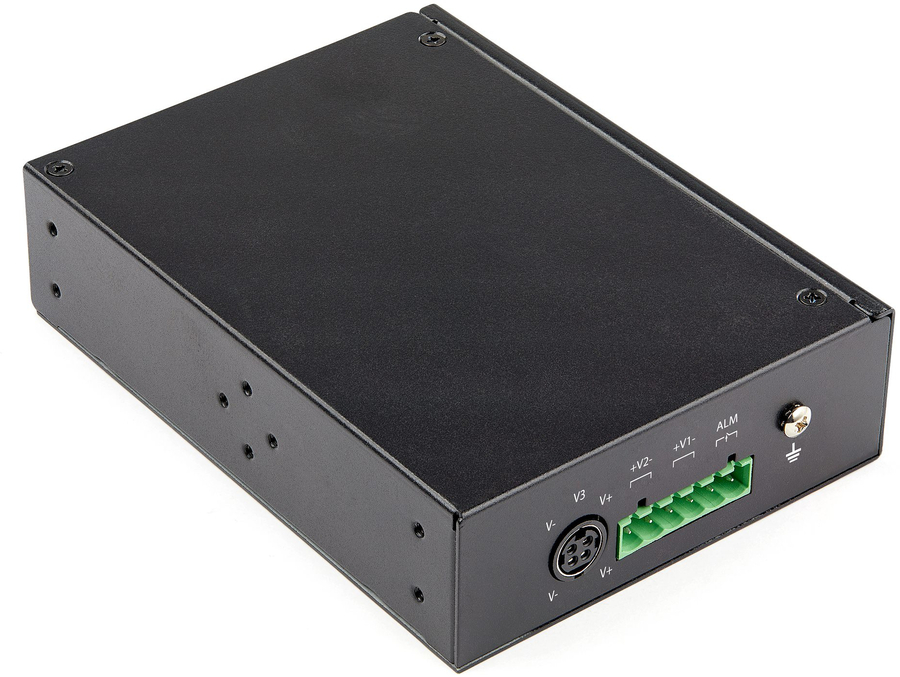

Dual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
|
|
Management features |
|
Switch type |
Unmanaged |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
5 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
SFP module slots quantity |
2 |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
10G support |
No |
|
Copper ethernet cabling technology |
10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Auto-negotiation |
Yes |
|
Data transmission |
|
Switching capacity |
12 Gbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Packet buffer memory |
1 MB |
|
Protocols |
|
Supported network protocols |
CSMA/CD |
|
Design |
|
Rack mounting |
No |
|
Product colour |
Black |
|
Housing material |
Steel |
|
LED indicators |
Link, PoE, Power |
|
International Protection (IP) code |
IP30 |
|
Wall mountable |
Yes |
|
DIN rail mounting |
Yes |
|
Safety |
EN60950-1, MET (UL) 60950-1 |
|
Performance |
|
Mean time between failures (MTBF) |
525058 h |
|
Power |
|
DC input voltage |
48 - 56 V |
|
Power consumption (max) |
126 W |
|
Surge protection |
Yes |
|
Surge protection voltage |
2 kV |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet plus (PoE+) ports quantity |
4 |
|
Power over Ethernet (PoE) power per port |
30 W |
|
Total Power over Ethernet (PoE) budget |
120 W |
|
Other features |
|
Terminal block port |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
105 mm |
|
Depth |
142 mm |
|
Height |
36.2 mm |
|
Weight |
492 g |
|

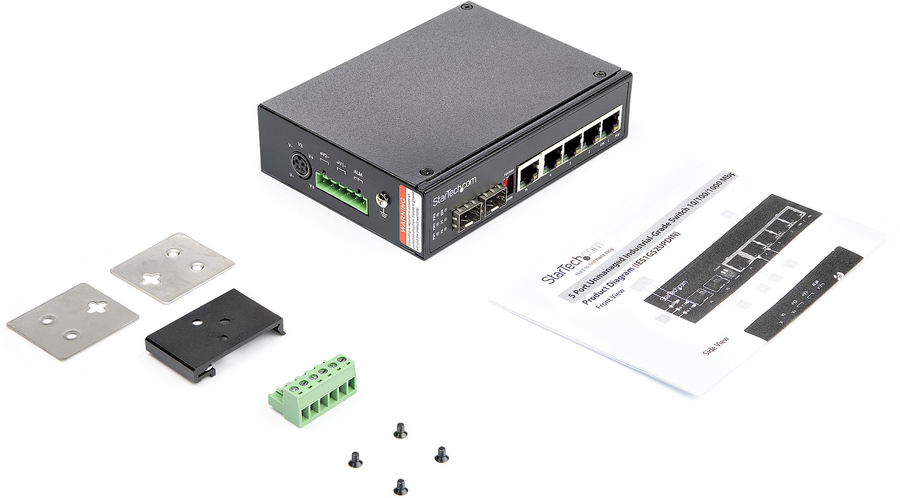

Packaging content |
|
Quick start guide |
Yes |
|
Packaging data |
|
Terminal block included |
Yes |
|
Package width |
211 mm |
|
Package depth |
162 mm |
|
Package height |
64 mm |
|
Package weight |
737 g |
|
Certificates |
|
Certification |
CE, RoHS, FCC, UL |
|
Logistics data |
|
Master (outer) case width |
355 mm |
|
Master (outer) case length |
345 mm |
|
Master (outer) case height |
225 mm |
|
Harmonized System (HS) code |
85176990 |
|
Products per master (outer) case |
10 pc(s) |
