General Information |
|
Summary |
Gigabit Media Converter | SFP to RJ45 (Cat6) | MTBF: 500,000+hrs @ 50°C | 12V-56VDC | Works with 100 Mbps SFPs
An industrial media converter that converts fiber to copper at a network endpoint.
A Flexible Solution Covering Different Requirements

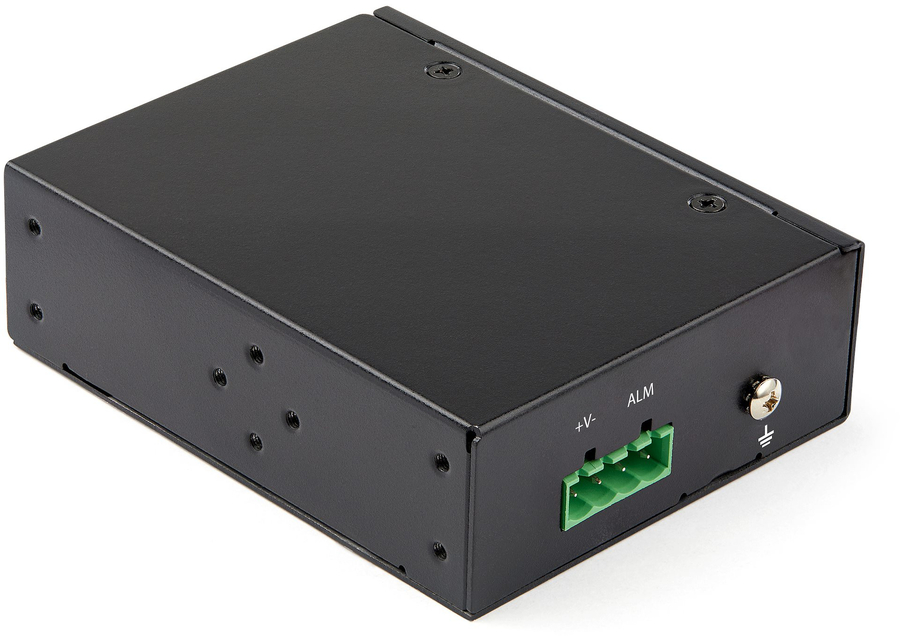

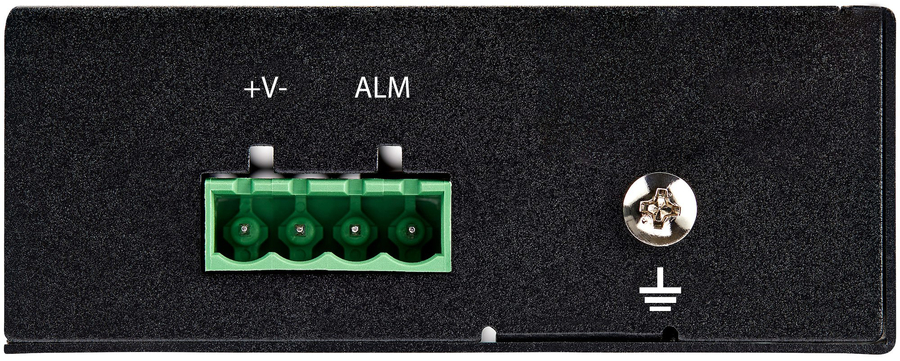

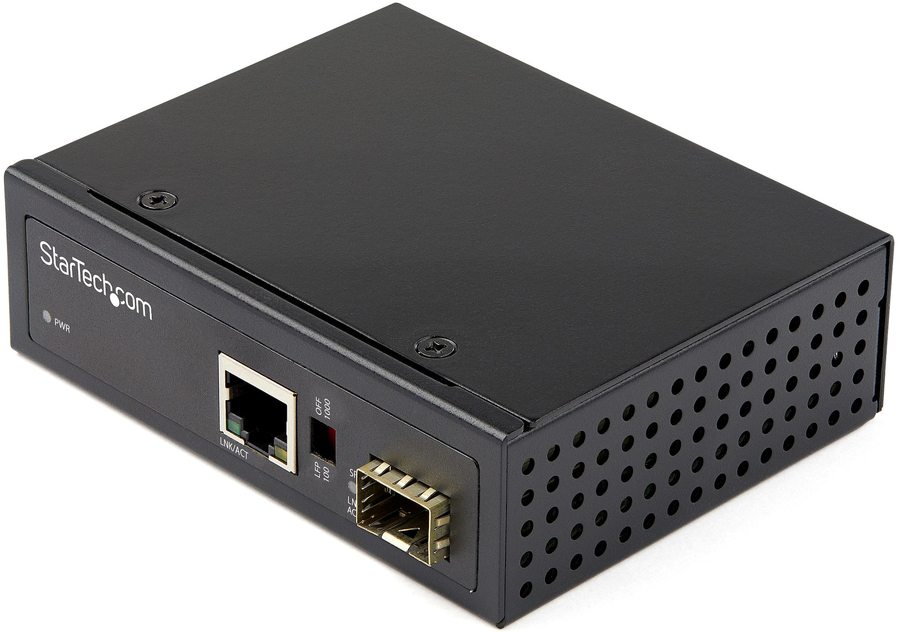

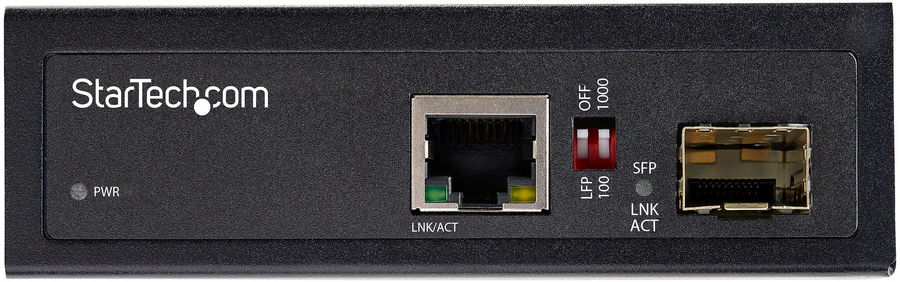

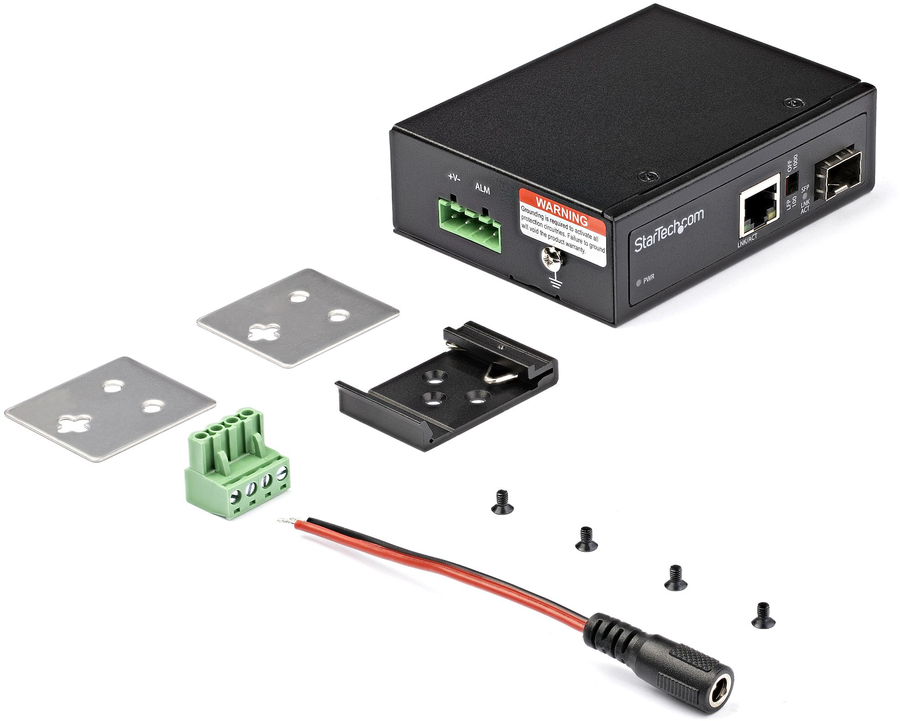

This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting.
For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500;000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32
The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
|
|
Network |
|
Maximum data transfer rate |
1000 Mbit/s |
|
Networking standards |
IEEE 802.3, IEEE 802.3x |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Auto MDI/MDI-X |
Yes |
|
Duplex system |
Full |
|
Cable types supported |
Cat6 |
|
Performance |
|
Fiber mode structure |
Multi-mode, Single-mode |
|
Mean time between failures (MTBF) |
569265 h |
|
Features |
|
Internal |
No |
|
LED indicators |
Yes |
|
Product colour |
Black |
|
Housing material |
Aluminium |
|
International Protection (IP) code |
IP30 |
|
DIN rail mounting |
Yes |
|
Ports & interfaces |
|
Fiber optic connector |
SFP |
|
Connectivity technology |
Wired |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Fiber ports quantity |
1 |
|
Power |
|
Input voltage |
12 - 56 V |
|
Power over Ethernet (PoE) |
No |
|
Power plug type |
Type N |
|
Weight & dimensions |
|
Width |
81.5 mm |
|
Depth |
104 mm |
|
Height |
32 mm |
|
Weight |
144 g |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Packaging content |
|
User guide |
Yes |
|
Packaging data |
|
Package width |
211 mm |
|
Package depth |
162 mm |
|
Package height |
64 mm |
|
Package weight |
386 g |
|
Certificates |
|
Compliance certificates |
CE, RoHS |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
Master (outer) case width |
355 mm |
|
Master (outer) case length |
345 mm |
|
Master (outer) case height |
225 mm |
|
Products per master (outer) case |
10 pc(s) |
