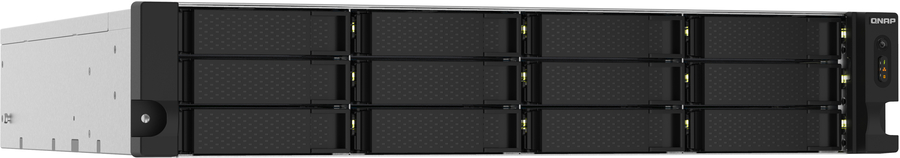

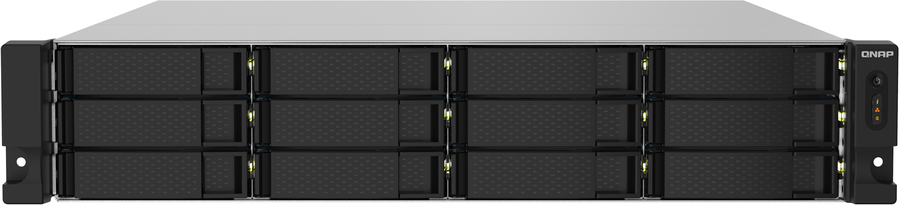

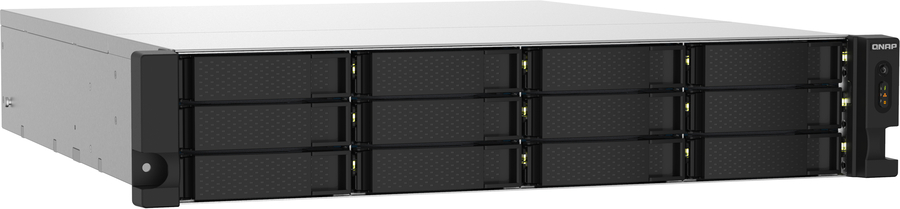

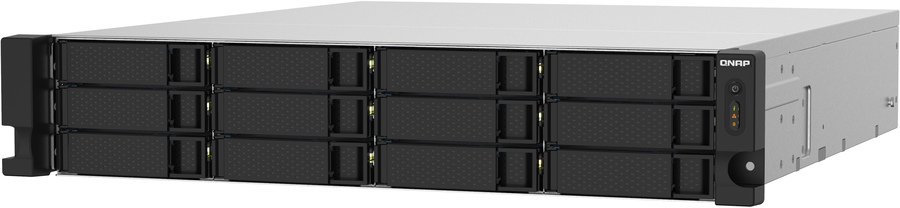

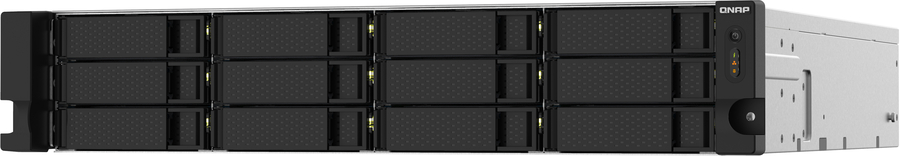

QNAP AL324 2U 12-Bay Arm-Based 2.5G 10G Rackmount NAS

Home :: Storage Devices :: NAS Devices ::

Regularly: $2157.00
On Sale: $2070.72    Sale Ends: May 26th, 2024

Manufacturer: QNAP

2U, AnnapurnaLabs Alpine AL324 (4x 1.7 GHz), 4 GB DDR4, 512 MB Flash, 12x 2.5"/3.5 SATA, 2x RJ-45, 2x SFP+, 4x USB 3.2 Gen1

Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
55899346 TS-1232PXU-RP-4G-US 885022020140 Active


General Information
Summary With 10GbE SFP+ and 2.5GbE network ports, the TS-1232PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-1232PXU-RP supports file backup and synchronization, secure snapshot protection, and Google G Suite and Microsoft 365 enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a new hybrid cloud storage solution has never been easier. The TS-1232PXU-RP also features a redundant power supply to ensure uninterrupted operation of mission-critical applications.

Higher performance x faster throughput
The TS-1232PXU-RP is powered by an Annapurna Labs Alpine AL-324 ARM Cortex-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-1232PXU-RP provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.

Upgrade your network to increase team efficiency
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows / Linux devices, allowing all of your workstations to take advantage of high-speed networks.

Boost NAS performance with SSDs
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-1232PXU-RP supports SSD cache technology, Qtier auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.

Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-1232PXU-RP into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-1232PXU-RP will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.

Easily find and automatically organize files and photos
The TS-1232PXU-RP provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.

Secure Google G Suite and Microsoft 365 backup
The convenience of Software as a Service (SaaS) solutions such as Google G Suite and Microsoft 365 has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-1232PXU-RP includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google G Suite and Microsoft 365 to provide an extra layer of data protection for business cloud data.

Low Latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-1232PXU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

Flexibly expand storage capacity whenever needed
The storage capacity of the TS-1232PXU-RP can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-1232PXU-RP can also be used to expand the storage space of other QNAP NAS.

PCIe expandability for greater application potential
The TS-1232PXU-RP includes a PCIe Gen 2 x2 slot, enabling you to expand its application potential by installing a compatible PCIe card.

Redundant power for dependable services
The TS-1232PXU-RP is equipped with a redundant power supply to ensure maximum service uptime. Combined with dual 10GbE SFP+ and dual 2.5GbE ports, your businesses can easily maintain 24/7 operations, guaranteeing a cost-effective and reliable storage solution.
Storage drives installed No
Number of storage drives supported 12
Installed storage drive type No
Supported storage drive types HDD & SSD
RAID support Yes
Supported storage drive interfaces Serial ATA II, Serial ATA III
Storage drive sizes supported 2.5,3.5"
RAID levels 0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration Yes
Online RAID expansion Yes
RAID rebuild Yes
Hot-swap drive bays Yes
Supported file systems FAT32, HFS+, NTFS, exFAT, ext3, ext4
Bad block scan Yes
Disk roaming Yes
Processor family Annapurna Labs
Processor manufacturer Annapurna Labs
Processor model Alpine AL-324
Processor frequency 1.7 GHz
Processor cores 4
Internal memory 4 GB
Internal memory type DDR4
Maximum RAM supported 16 GB
Memory slots 1
Memory form factor UDIMM
Flash memory 512 MB
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000,2500,10000 Mbit/s
Ethernet LAN data rate supported (max) 10000 Mbit/s
DHCP client Yes
DHCP server Yes
Jumbo frames support Yes
iSCSI support Yes
Wake-on-LAN ready Yes
Link aggregation Yes
Load balancing system Yes
Dynamic DNS (DDNS) Yes
WLAN adapter supported Yes

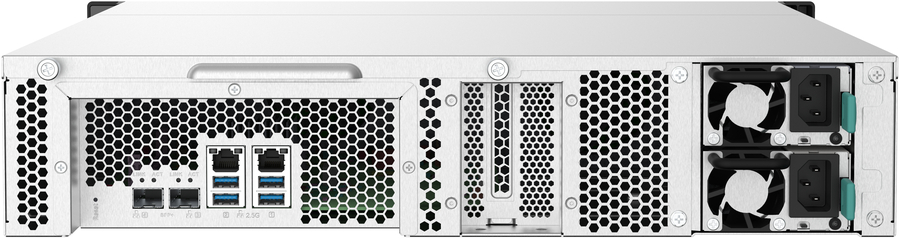

Ports & interfaces
Ethernet LAN (RJ-45) ports 2
USB port Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Fiber ports quantity 2
Fiber optic connector SFP+
Concurrent connections 700
Chassis type Rack (2U)
Cooling type Active
Product colour Black
Number of fans 2 fan(s)
Fan diameter 7 cm
LED indicators HDD, LAN, Status
Type NAS
Device class Small & Medium Business
Backup function Yes
Backup features Cloud, iSCSI LUN
Buzzer Yes
Multilingual support Yes
Snapshot Yes
Management protocols SNMP V2, V3
Web-based management Yes
Share folder access right management Yes
Security algorithms 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Access Control List (ACL) Yes
Reset button Yes
On/off switch Yes
Built-in FTP server Yes
Browser supported Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
System log Yes
Hot spare Yes
Password authentication Yes
Disk scan Yes
S.M.A.R.T. support Yes
Share folder CIFS/SMB
USB copy function Yes
Operating system installed QNAP Turbo System
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Server operating systems supported Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power supply location Built-in
Power supply unit (PSU) capacity 250 W
Number of power supply units 2
Redundant power supply (RPS) support Yes
Power consumption (typical) 83.57 W
AC input voltage 100 - 240 V
AC input frequency 50-60 Hz
Fan voltage 12 V
Weight & dimensions
Width 482 mm
Depth 534 mm
Height 89 mm
Weight 11.3 kg
Package weight 17.3 kg
Packaging content
Cables included AC, LAN (RJ-45)
Power cables quantity 2
Number of screws 84
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -20 - 70 °C
Storage relative humidity (H-H) 5 - 95%
