General Information |
|
Summary |
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology. |
|
Processor |
|
Processor manufacturer |
AMD |
|
Processor socket |
Socket AM4 |
|
Compatible processor series |
AMD Ryzen 3000 Series |
|
Maximum number of SMP processors |
1 |
|
Supported processor sockets |
Socket AM4 |
|
Maximum internal memory supported by processor |
64 GB |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Number of memory slots |
2 |
|
Maximum internal memory |
64 GB |
|
Memory slots type |
DIMM |
|
Memory channels |
Dual-channel |
|
ECC сompatibility |
ECC & Non-ECC |
|
Supported memory clock speeds |
2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, PCI Express 3.0, SATA |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 10 |
|
Graphics |
|
On-board graphics card |
No |
|
HDCP |
Yes |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
|
Number of SATA III connectors |
4 |
|
Number of SATA II connectors |
0 |
|
Number of SATA connectors |
0 |
|
ATX Power connector (24-pin) |
Yes |
|
Power fan connector |
Yes |
|
CPU fan connector |
Yes |
|
Number of chassis fan connectors |
2 |
|
RGB LED pin header |
Yes |
|

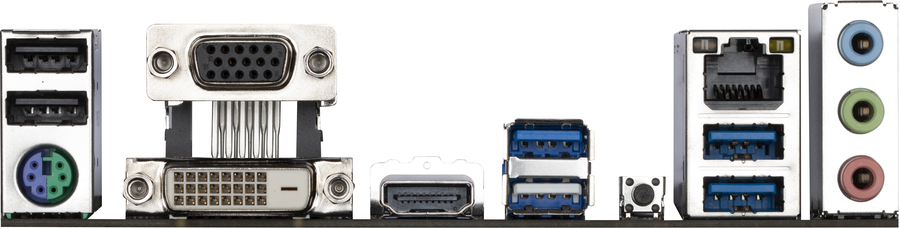

Rear panel I/O ports |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
VGA (D-Sub) ports quantity |
1 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
1 |
|
PS/2 ports quantity |
1 |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
AMD |
|
Motherboard chipset |
AMD A520 |
|
Audio output channels |
7.1 channels |
|
Product colour |
Black |
|
Expansion slots |
|
PCI Express x1 (Gen 3.x) slots |
2 |
|
PCI Express x16 (Gen 3.x) slots |
1 |
|
Number of M.2 (M) slots |
1 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
128 Mbit |
|
ACPI version |
5.0 |
|
Clear CMOS jumper |
Yes |
|
Clear CMOS button |
Yes |
|
Desktop Management Interface (DMI) version |
2.7 |
|
System Management BIOS (SMBIOS) version |
2.7 |
|
Logistics data |
|
Country of origin |
China |
|
Products per shipping (inner) case |
1 pc(s) |
|
Harmonized System (HS) code |
84733020 |
|
Battery |
|
Battery weight |
3 g |
|
Lithium weight per battery |
0.07 g |
|
Number of battery cells |
1 |
|
Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
|
Battery type |
CR2032 |
|
Packaging data |
|
Package width |
265 mm |
|
Package depth |
235 mm |
|
Package height |
52 mm |
|
Package weight |
740 g |
|
Weight & dimensions |
|
Width |
244 mm |
|
Depth |
205 mm |
|
Height |
35 mm |
|
Packaging content |
|
Batteries included |
Yes |
|
Other features |
|
mSATA ports quantity |
0 |
|
Technical details |
|
Warranty period |
3 year(s) |
