General Information |
|
Summary |

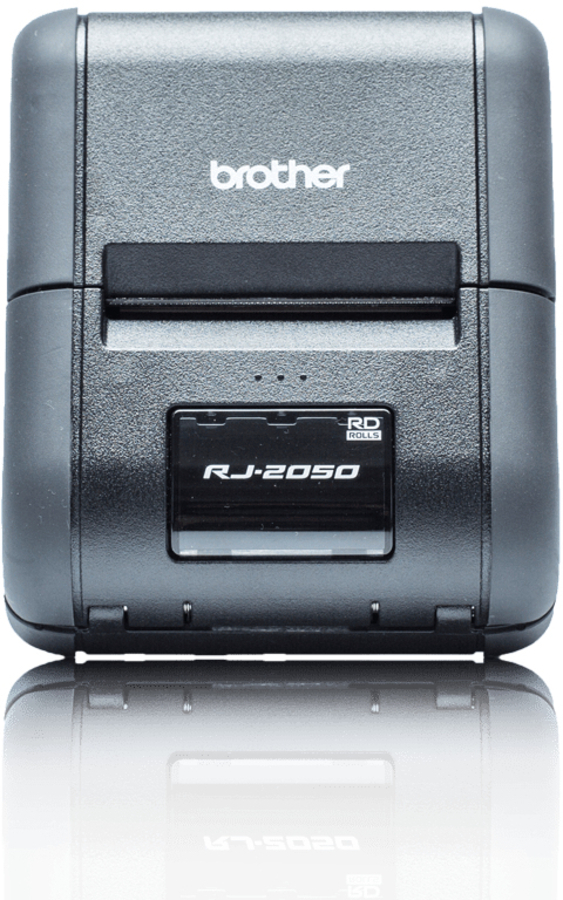

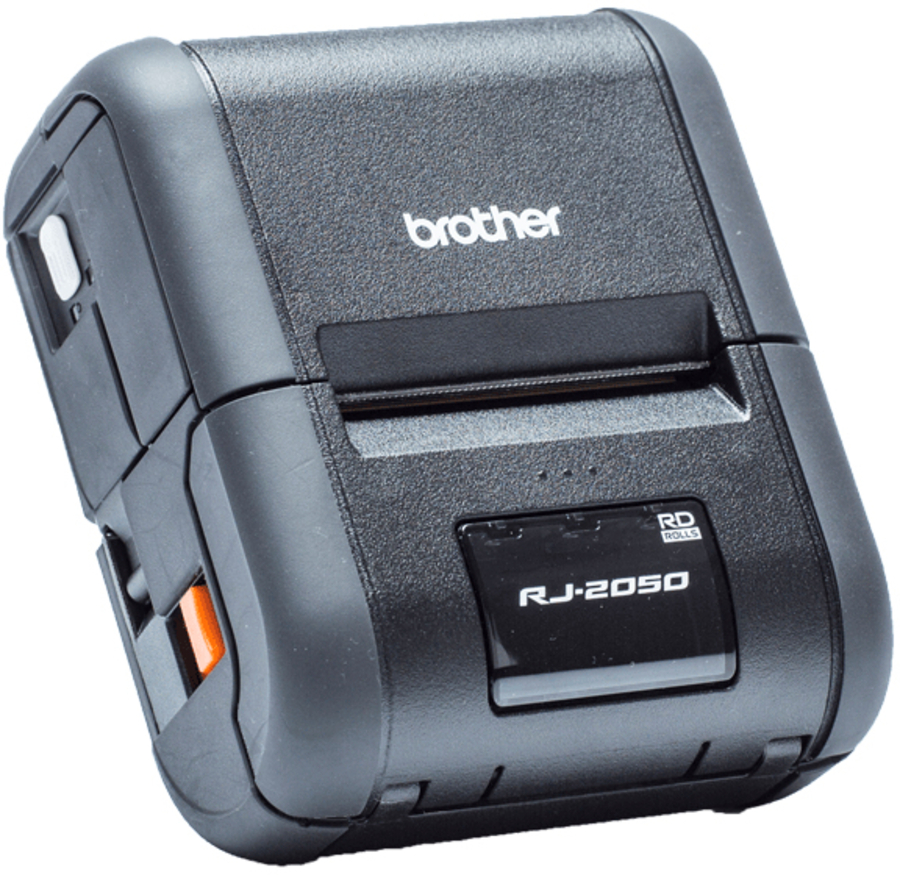

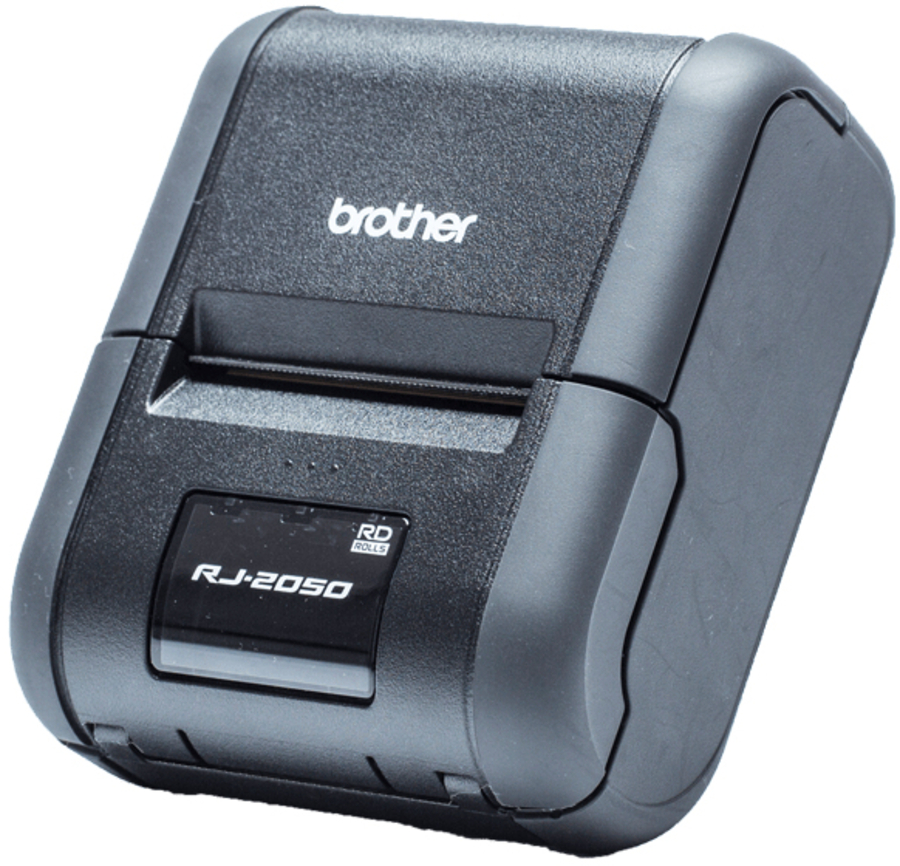

The Brother RJ-2050 with its advanced connectivity options is the ideal mobile printer for printing receipts, tickets and other documentation, wherever and whenever required. Integrates into your existing system thanks to Wi-Fi, Bluetooth and USB connectivity. Free SDK's for iOS, Android and Windows are available, along with built-in support for ZPL II, CPCL and Brother ESC/P emulations. |
|
Printing |
|
Print technology |
Direct thermal |
|
Type |
Mobile printer |
|
Maximum resolution |
203 x 203 DPI |
|
Print speed |
152 mm/sec |
|
Paper handling |
|
Maximum roll diameter |
4 cm |
|
Supported paper width |
58 mm |
|
Maximum printing width |
5.4 cm |
|
Maximum media length |
100 cm |
|
Media thickness |
0.058 - 0.09 mm |
|
Ports & interfaces |
|
Connectivity technology |
Wired & Wireless |
|
USB port |
Yes |
|
USB 2.0 ports quantity |
1 |
|
USB connector |
Mini-USB Type-B |
|
Bluetooth |
Yes |
|
Bluetooth version |
2.1+EDR |
|
Bluetooth profiles |
BIP, HCRP, OPP, SPP |
|
Standard interfaces |
Bluetooth, USB 2.0, Wireless LAN |
|
Network |
|
Ethernet LAN |
No |
|
Wi-Fi |
Yes |
|
Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
|
Security algorithms |
64-bit WEP, 128-bit WEP, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, WEP, WPA, WPA2-PSK |
|
Features |
|
Built-in barcodes |
AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, ITF, MaxiCode, Micro QR Code, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
|
Page description languages |
CPCL-native, ESC P, ZPL II |
|
Flash memory |
32 MB |
|
RAM capacity |
0.032 GB |
|
Country of origin |
China |
|
Design |
|
Product colour |
Black |
|
Built-in display |
Yes |
|
Display |
LCD |
|
Display diagonal |
6.1 cm (2.4") |
|
Power |
|
Battery voltage |
7.2 V |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
System requirements |
|
Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64 |
|
Mobile operating systems supported |
Android 4.0, Android 4.1, Android 4.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, iOS 6.0, iOS 6.1, iOS 7.0, iOS 7.1, iOS 7.2, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3 |
|
Weight & dimensions |
|
Width |
125 mm |
|
Depth |
186 mm |
|
Height |
230 mm |
|
Weight |
875 g |
|
Packaging data |
|
Package weight |
1.38 kg |
|
Packaging content |
|
Quick start guide |
Yes |
|
Batteries included |
Yes |
|
Battery |
|
Battery technology |
Lithium-Ion (Li-Ion) |
|
Logistics data |
|
Harmonized System (HS) code |
84433210 |
|
Products per pallet |
150 pc(s) |
|
Pallet gross height |
14 cm |
|
Pallet gross weight |
225.4 kg |
|
Master (outer) cases per pallet |
50 pc(s) |
|
Layers per pallet |
5 pc(s) |
|
Technical details |
|
Master (outer) cases per pallet layer |
10 pc(s) |
|
Pallet type |
800 x 1200 mm |
|
Other features |
|
International Protection (IP) code |
IP54 |
|
Rechargeable |
Yes |
|
Wi-Fi Direct |
Yes |
|
Mobile printing technologies |
Apple AirPrint |
|
