General Information |
|
Summary |

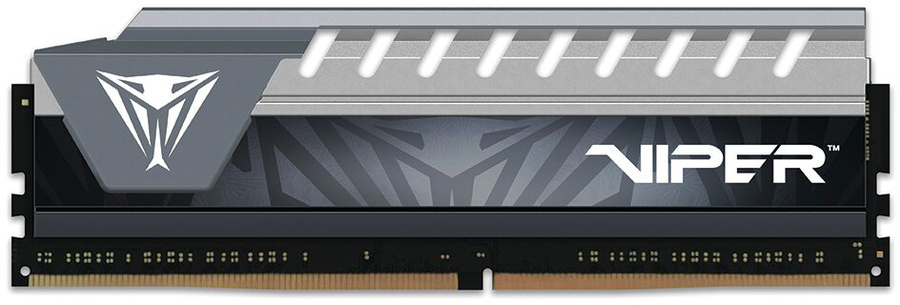

Patriot’s Viper Elite memory modules are designed with true performance in mind. Built for the latest Intel® platforms, the Viper Elite series provides the best performance and stability for the most demanding computer environments.
The Viper Elite series utilizes a custom designed high performance heat shield for superior heat dissipation to ensure rock solid performance even when using the most taxing applications. Built from the highest quality Build of Materials, Patriot’s Viper Elite series memory modules are hand tested and validated for system compatibility.
Patriot’s Viper Elite series will be offered in dual channel kits, 8GB, 16GB and 32GB, at speeds from 2400MHz up to 3200MHz in red, blue and grey heat shields. They will also be offered in a quad channel kit, 64GB, at speeds up to 2800MHz in a gray heat shield. Hand tested for quality assurance the Viper Elite series is backed by a lifetime warranty. |
|
Features |
|
Internal memory |
8 GB |
|
Memory layout (modules x size) |
1 x 8 GB |
|
Internal memory type |
DDR4 |
|
Component for |
PC/Server |
|
Memory form factor |
288-pin DIMM |
|
ECC |
No |
|
Buffered memory type |
Unregistered (unbuffered) |
|
Memory clock speed |
2666 MHz |
|
Memory voltage |
1.2 V |
|
Intel Extreme Memory Profile (XMP) |
Yes |
|
Intel Extreme Memory Profile (XMP) version |
2.0 |
|
Product colour |
Black, Grey |
|
Cooling type |
Heatsink |
|
Windows operating systems supported |
Yes |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Weight & dimensions |
|
Width |
133 mm |
|
Depth |
6.8 mm |
|
Height |
43 mm |
|
Weight |
31.5 g |
|
Packaging data |
|
Package width |
122.4 mm |
|
Package depth |
13.7 mm |
|
Package height |
177.8 mm |
|
Package weight |
79.5 g |
|
Package type |
Retail pack |
|
Logistics data |
|
Master (outer) case width |
320 mm |
|
Master (outer) case length |
430 mm |
|
Master (outer) case height |
405 mm |
|
Master (outer) case gross weight |
11.5 kg |
|
Products per master (outer) case |
120 pc(s) |
