General Information |
|
Summary |

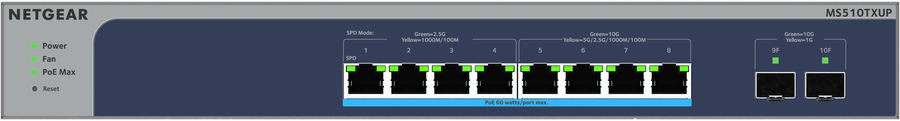

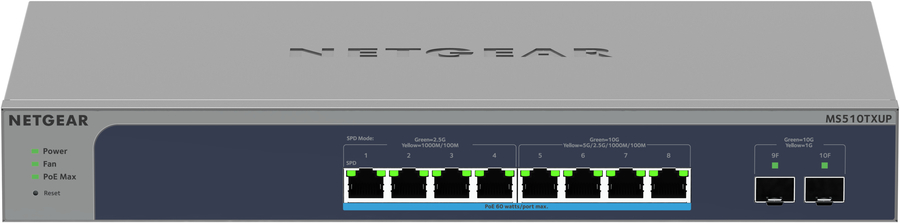

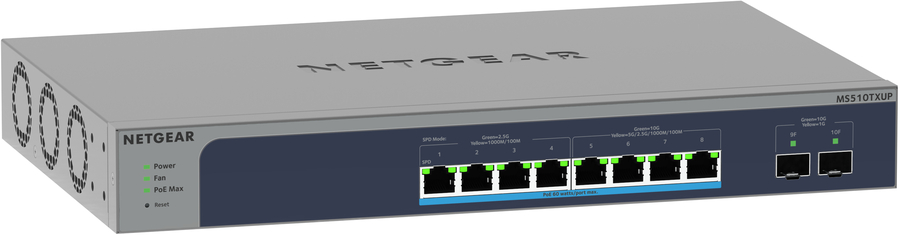

The NETGEAR MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch offers 295W PoE budget, 4 ports 1G/2.5G and 4 ports multi-Gig/10G and 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXUP can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2+ |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Cloud-managed |
Yes |
|
System event log |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
|
SFP+ module slots quantity |
2 |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
|
10G support |
Yes |
|
Port mirroring |
Yes |
|
Broadcast storm control |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
256 |
|
Data transmission |
|
MAC address table |
32000 entries |
|
Switching capacity |
140 Gbit/s |
|
Number of queues |
8 |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
10000 |
|
Packet buffer memory |
2 MB |
|
Security |
|
DHCP features |
DHCPv6 snooping |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
Password protection |
Yes |
|
Queue scheduling algorithms |
WRR+SP |
|
Multicast features |
|
Multicast support |
Yes |
|
Number of multicast groups filtered |
256 |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Grey |
|
LED indicators |
Activity, Fan fail, Link, PoE, Power, Speed |
|
Number of fans |
3 fan(s) |
|
Performance |
|
Built-in processor |
Yes |
|
Processor frequency |
1000 MHz |
|
Internal memory |
256 MB |
|
Flash memory |
64 MB |
|
Noise level |
33 dB |
|
Firmware upgradeable |
Yes |
|
Mean time between failures (MTBF) |
1059519 h |
|
Power |
|
Power supply included |
Yes |
|
Power consumption (max) |
380 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Total Power over Ethernet (PoE) budget |
295 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 3000 m |
|
Heat dissipation |
1294.5888 BTU/h |
|
Weight & dimensions |
|
Width |
320 mm |
|
Depth |
206 mm |
|
Height |
43 mm |
|
Weight |
2.51 kg |
|
Packaging content |
|
Cables included |
AC |
|
Quick start guide |
Yes |
|
User guide |
Yes |
|
Manual |
Yes |
|
Packaging data |
|
Rack rails |
Yes |
|
Certificates |
|
Certification |
CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
