General Information |
|
Summary |

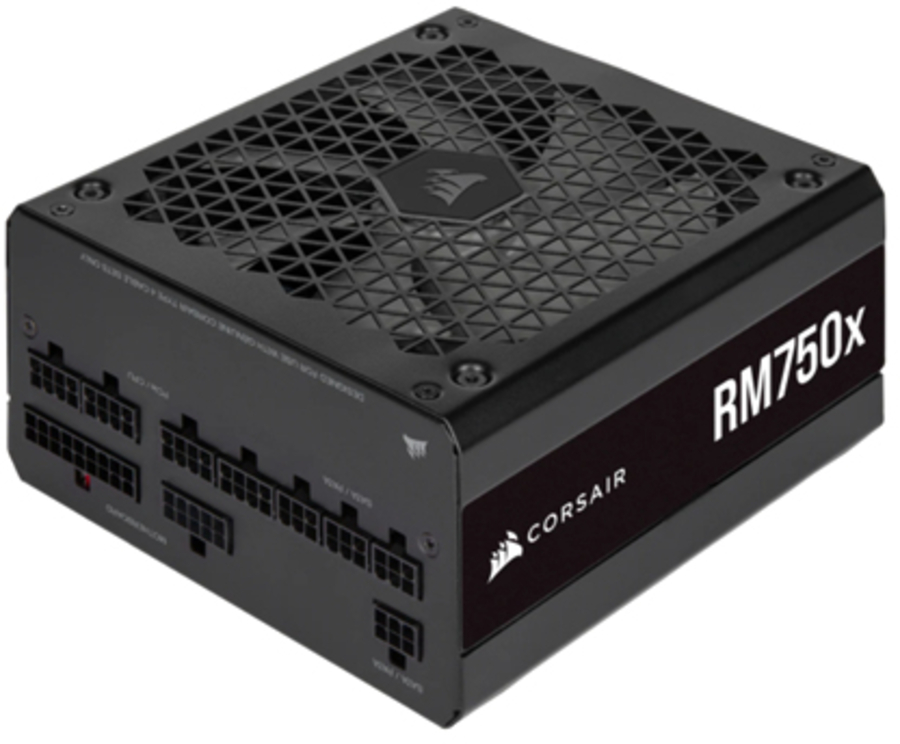

CORSAIR RM750x Series fully modular power supplies with EPS12V connectors are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC. RM750x PSUs use only Japanese 105 C capacitors, for long life and reliability backed by a ten-year warranty. A 135mm magnetic levitation bearing fan ensures high performance coupled with low noise. |
|
Power |
|
Total power |
750 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
47 - 63 Hz |
|
Input current |
10-5 A |
|
Combined power (+3.3V) |
150 W |
|
Combined power (+12V) |
750 W |
|
Combined power (+5V) |
150 W |
|
Combined power (-12V) |
3.6 W |
|
Combined power (+5Vsb) |
15 W |
|
Max output current (+3.3V) |
20 A |
|
Max output current (+12V) |
62.5 A |
|
Max output current (+5V) |
20 A |
|
Max output current (-12V) |
0.3 A |
|
Max output current (+5Vsb) |
3 A |
|
Ports & interfaces |
|
Motherboard power connector |
24-pin ATX |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Gold |
|
Mean time between failures (MTBF) |
100000 h |
|
Design |
|
Product colour |
Black |
|
Cooling type |
Active |
|
Fan diameter |
13.5 cm |
|
Weight & dimensions |
|
Weight |
1.7 kg |
