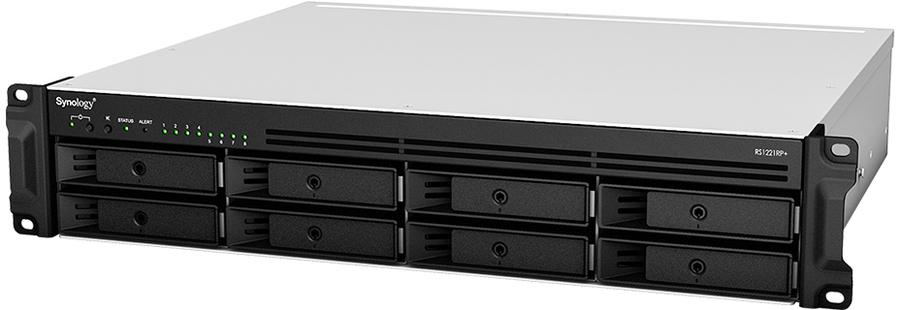

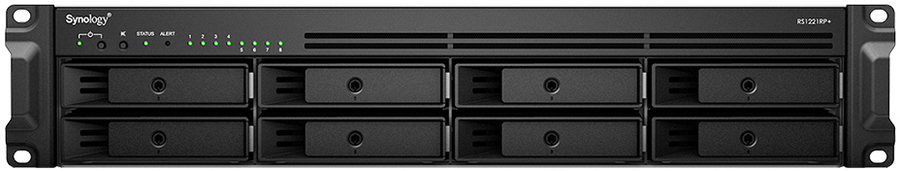

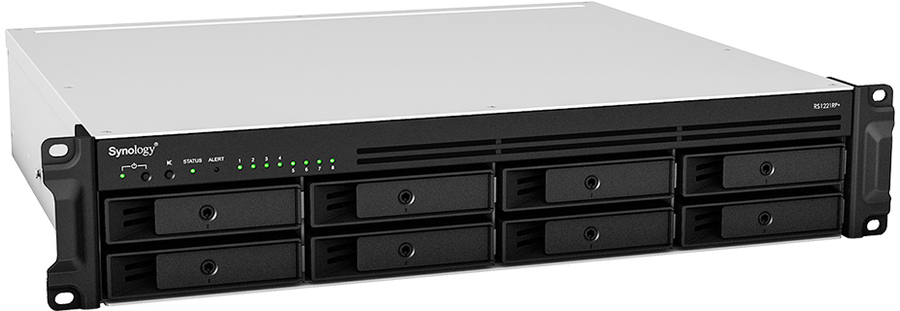

Synology RS1221RP+ 8-Bay Rackmount NAS

Home :: Storage Devices :: NAS Devices ::


Regularly: $2474.00
On Sale: $2375.04    Sale Ends: April 12th, 2024

Manufacturer: Synology

2U, AMD Ryzen V1500B (4x 2.2GHz), 4GB DDR4, 8x 2.5"/3.5" SATA, 4x RJ-45, 2x USB 3.2 Gen 1, 1x eSATA, 350W

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
56381027 RS1221RP+ 4711174723690 Active

Details

General Information
Summary Compact and reliable
The RS1221+/RS1221RP+, at only 30 to 38 centimeters deep, is built for space-sensitive deployments. Boasting over 100K 4K random read IOPS and 2,315 MB/s sequential read, the RS1221+/RS1221RP+ is equipped to handle heavy workloads in data-intensive environments. The RS1221RP+ additionally features an extra level of protection with redundant power supplies.

A compact design for space efficiency
The RS1221+ and its RX418 expansion units are designed to help you save space in compact deployments. At only 30 centimeters, half the length of a typical 2U unit, it fits perfectly snug onto 2-post or shallow rackmount enclosures. The RS1221RP+ with dual power supplies comes in at 38 cm, also fitting most shallow depth enclosures.
- Fits into shallow rackmount enclosures
- Easy-to-install on 2-post racks

Built for reliability
Redundant power
Reduce the chance that power disruptions on a single distribution channel or PDU causes data and service availability degradation.

Maximize service availability
When paired with another identical unit, Synology High Availability enables automatic minute-level failover between two clustered servers in the event of a server failure to minimize service downtime.

Data integrity and protection
ECC memory and the Btrfs file system bring higher reliability and snapshot capabilities to help prevent data corruption and simplify data protection.

High performance storage for anything
Up to 2,315/1,147 MB/s sequential read and write throughput and over 100K/54K random read/write IOPS ensures ample performance for demanding workloads.

With room to grow with you
Easily upgrade the RS1221+/RS1221RP+ to match your usage environment, whether it’s for performance, faster networking, or higher storage capacity.
SSD cache
Boost read/write IOPS over HDD-only arrays by 16X or more with NVMe or SATA SSD Cache
10GbE ready
Improve I/O with faster SFP+ or RJ-45 networking
Storage expansion
Expand to 12 drive bays with a RX418 expansion unit

Data protection solutions, built-in

Hyper Backup
A comprehensive backup and recovery solution for added data protection. Create backup destinations locally, on another Synology device, rsync servers, or cloud-based destinations, such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2 Storage, a dedicated backup destination for Synology devices. Deduplication, integrity checks, and incremental transfer technology reduce bandwidth and storage use.

Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.

Protect your entire office with Active Backup
The Active Backup suite enables administrators to easily secure their entire IT infrastructure by backing up mission-critical data to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Benefit from deduplication, multiversioning to quickly jump back in time, and additional data efficiency optimizations for reduced bandwidth and storage use.

Fully certified storage virtualization solutions
Synology iSCSI storage fully supports mainstream virtualization solutions to enhance work efficiency with an easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments.

Works best with Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.

Powered by Synology DiskStation Manager

Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.
Synology Drive
Instantly access your NAS files across multiple devices whenever you want, wherever you are.
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Surveillance Station
Complete surveillance solution for recording, monitoring, and management.
Collaboration Suite
Satisfy all team collaboration needs behind the safety of your own private cloud with Synology Office, Calendar, and Chat.
Storage
Storage drives installed No
Number of storage drives supported 8
Installed storage drive type No
Supported storage drive types HDD & SSD
RAID support Yes
Supported storage drive interfaces Serial ATA II, Serial ATA III
Storage drive sizes supported 2.5,3.5"
RAID levels 0, 1, 5, 6, 10, JBOD
Online RAID migration Yes
Online RAID expansion Yes
Hot-swap drive bays Yes
Supported file systems BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
Processor
Processor family Ryzen Embedded
Processor manufacturer AMD
Processor model V1500B
Processor frequency 2.2 GHz
Processor cores 4
On-board graphics card model Not available
Memory
Internal memory 4 GB
Internal memory type DDR4
Maximum RAM supported 32 GB
Memory slots 2
Memory form factor SO-DIMM
ECC Yes
Network
Ethernet LAN Yes
Ethernet LAN data rates 1000 Mbit/s
iSCSI support Yes
Wake-on-LAN ready Yes
Supported network protocols SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN
Link aggregation Yes
Load balancing system Yes

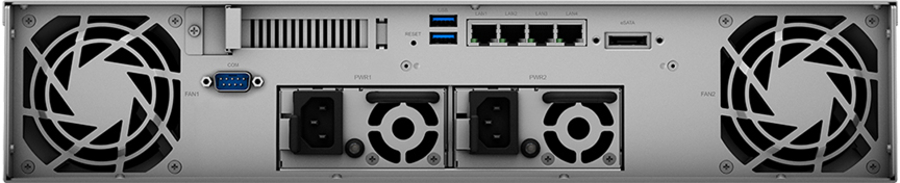

Ports & interfaces
Ethernet LAN (RJ-45) ports 4
USB port Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
eSATA ports quantity 1
PCI Express x8 (Gen 3.x) slots 1
Design
Chassis type Rack (2U)
Cooling type Active
Product colour Black
Number of fans 2 fan(s)
Fan diameter 8 cm
Drive bay locking Yes
LED indicators HDD, Power, Status
Performance
Type NAS
Device class Small & Medium Business
Backup function Yes
Backup features Cloud, iSCSI LUN
Multilingual support Yes
Noise level 40 dB
Snapshot Yes
Management protocols SNMP
Web-based management Yes
Security algorithms HTTPS, SSH, SSL/TLS
Access Control List (ACL) Yes
Reset button Yes
On/off switch Yes
Built-in FTP server Yes
Browser supported Safari, Chrome, Edge, Internet Explorer, Firefox
System log Yes
Hot spare Yes
Share folder AFP, CIFS/SMB, FTP, WebDAV
Software
Operating system installed DiskStation Manager
Windows operating systems supported Yes
Mac operating systems supported Yes
Power
Power supply location Built-in
Power supply unit (PSU) capacity 350 W
Redundant power supply (RPS) support Yes
Power consumption (typical) 61.94 W
Power consumption (HDD standby) 29.98 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Weight & dimensions
Width 482 mm
Depth 407.5 mm
Height 88 mm
Weight 11.7 kg
Packaging content
Cables included AC
Power cables quantity 2
Technical details
Sustainability compliance Yes
Sustainability certificates CE, RoHS
Operational conditions
Operating temperature (T-T) 0 - 35 °C
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -20 - 60 °C
Operating altitude 0 - 5000 m
Logistics data
Harmonized System (HS) code 84714100
