General Information |
|
Summary |

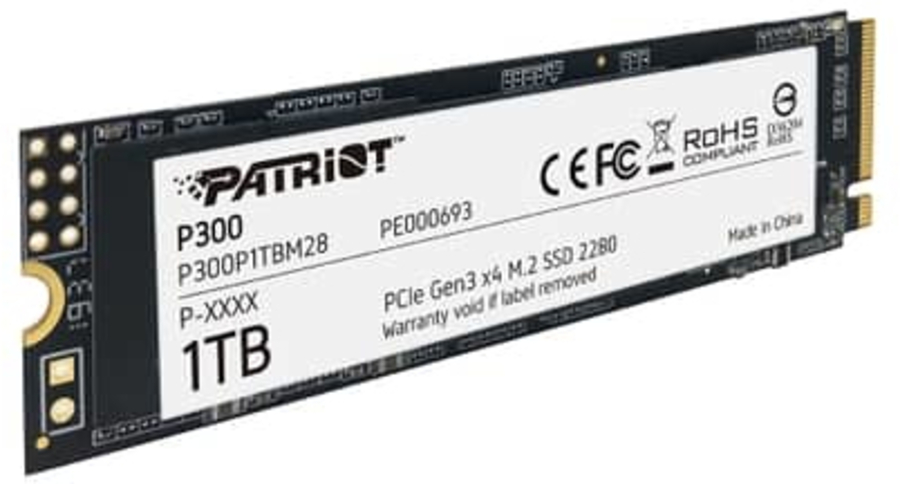

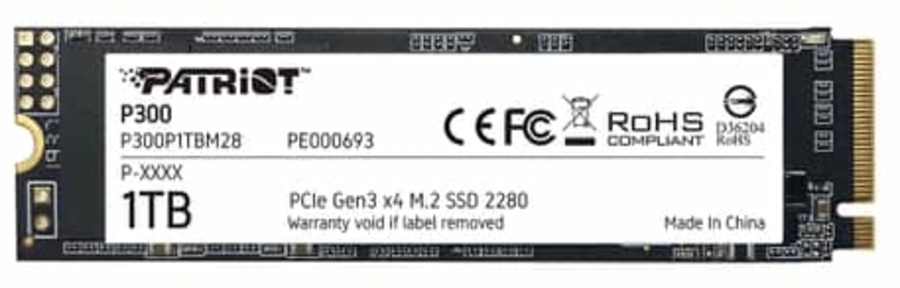

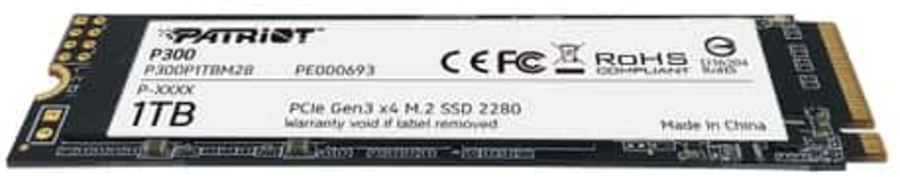

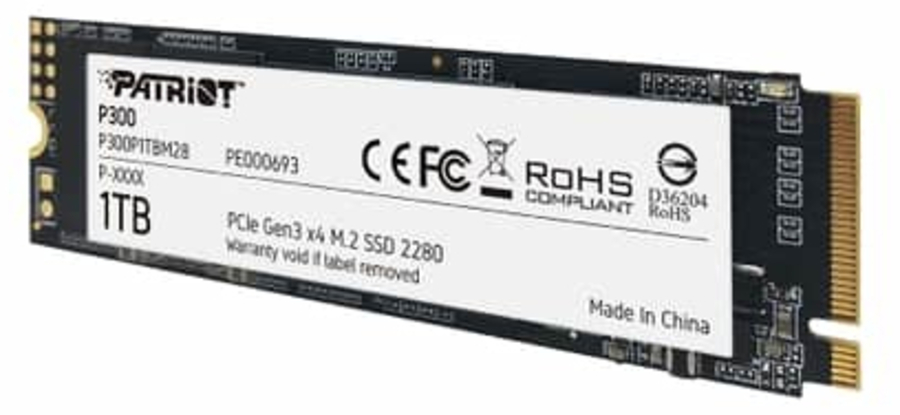

The P300 is Patriot’s next generation of mid-tier PCIe gen 3x4 NVMe SSD to hit the market, offering 25% higher transfer speeds and IOPs than standard PCIe 3x2 solutions. The compact m.2 form factor is designed for easy installation and will fit into any PC or laptop, while its low power consumption helps extend laptop battery life. The P300 is guaranteed to improve start-up, loading, and transfer times over traditional hard disk drives. |
|
Features |
|
SSD capacity |
1 TB |
|
SSD form factor |
M.2 |
|
Interface |
PCI Express 3.0 |
|
NVMe |
Yes |
|
Memory type |
3D NAND |
|
Component for |
PC/Laptop |
|
NVMe version |
1.3 |
|
M.2 SSD size |
2280 (22 x 80 mm) |
|
Read speed |
2100 MB/s |
|
Write speed |
1650 MB/s |
|
Random read (4KB) |
290000 IOPS |
|
Random write (4KB) |
260000 IOPS |
|
Sequential read speed (ATTO) |
2100 MB/s |
|
Sequential write speed (ATTO) |
1650 MB/s |
|
Sequential read speed (CDM) |
2100 MB/s |
|
Sequential write speed (CDM) |
1650 MB/s |
|
Sequential read speed (AS SSD) |
2100 MB/s |
|
Sequential write speed (AS SSD) |
1650 MB/s |
|
M.2 key ID |
B+M |
|
PCI Express interface data lanes |
x4 |
|
S.M.A.R.T. support |
Yes |
|
TRIM support |
Yes |
|
ECC |
Yes |
|
Mean time between failures (MTBF) |
1500000 h |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Enterprise, Windows 10 Home, Windows 10 Pro, Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro, Windows 7, Windows 8, Yes |
|
TBW rating |
480 |
|
Power |
|
Power consumption (idle) |
0.37 W |
|
Weight & dimensions |
|
Width |
22 mm |
|
Depth |
80 mm |
|
Height |
3.8 mm |
|
Weight |
9 g |
|
Packaging data |
|
Cables included |
No |
|
Screws included |
No |
|
Quick start guide |
No |
|
Manual |
No |
|
Manual languages |
English |
|
Package width |
100 mm |
|
Package depth |
6.6 mm |
|
Package height |
132 mm |
|
Package weight |
20 g |
|
Package type |
Blister |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Other features |
|
Warranty period |
5 year(s) |
|
Compliance certificates |
BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA |
|
Logistics data |
|
Harmonized System (HS) code |
84717070 |
