General Information |
|
Summary |
Accelerate your business operations

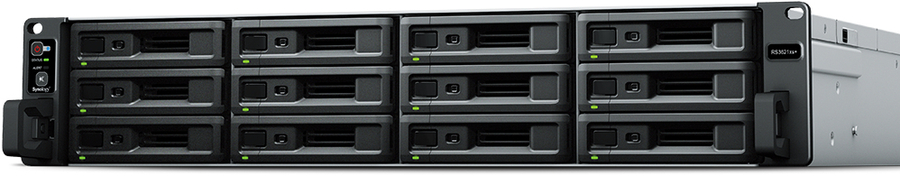

The 12-bay RS3621xs+ is capable of delivering over 238K 4K random read IOPS and 5,819 MB/s sequential read throughput1— a true enterprise powerhouse. With full power supply redundancy, an 8-core processor, ECC memory, advanced snapshot technology, and file self-healing, the RS3621xs+ provides a reliable foundation to any data-driven business.
Storage you can trust
The RS3621xs+ keeps your data protected while you concentrate on delivering the best results to your customers — even when disaster strikes.
Redundant power
Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans allow them to be replaced without powering down the system.
Maximize service availability
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.
Next-generation file system
Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots.
Tailored to your business
The RS3621xs+ includes two PCIe slots for performance, networking, and storage upgrades enabling it to adapt to any business environment2.
Double bandwidth
Upgrade network bandwidth in minutes by 2x or more with Synology’s range of 10GbE NICs.
SSD cache3
Boost read/write IOPS by up to 16 times by enabling SSD cache with our Synology M.2 NVMe adapter cards and SNV3500 SSDs or by installing one or more 2.5” SAT5200 SSDs.
Storage expansion
Quickly and easily scale up to 36 drives with two RX1217(RP) expansion units.
Hyper Backup
A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally, to another Synology device, rsync server, or cloud-based storage such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2. Deduplication4, integrity checks, and incremental transfer technology reduce bandwidth and storage used.
Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.
Active Backup Suite
Enables administrators to easily backup the entire IT infrastructure to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Backups benefit from deduplication, multiversioning, and optimizations to reduce bandwidth and storage used.
Storage for virtualization
Synology iSCSI storage supports mainstream virtualization solutions with an easy management interface to enhance usability. VMware vSphere 6.5 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally, Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments.
Works best with Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance. |
|
Storage |
|
Storage drives installed |
No |
|
Number of storage drives supported |
12 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
Storage drive interface |
Serial ATA II, Serial ATA III |
|
RAID support |
Yes |
|
Storage drive sizes supported |
2.5,3.5" |
|
RAID levels |
5, 6 |
|
Hot-swap drive bays |
Yes |
|
Processor |
|
Processor family |
Intel® Xeon® |
|
Processor manufacturer |
Intel |
|
Processor model |
D-1541 |
|
Processor frequency |
2.1 GHz |
|
Processor boost frequency |
2.7 GHz |
|
Processor cores |
8 |
|
CPU configuration (max) |
1 |
|
On-board graphics card model |
Not available |
|
Conflict-Free processor |
Yes |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
Maximum RAM supported |
64 GB |
|
Memory slots |
4 |
|
Memory form factor |
UDIMM |
|
ECC |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rate supported (max) |
10000 Mbit/s |
|
Wake-on-LAN ready |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
6 |
|
USB port |
Yes |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
PCI Express x8 (Gen 3.x) slots |
2 |
|
Design |
|
Chassis type |
Rack (2U) |
|
Cooling type |
Active |
|
Product colour |
Black |
|
Number of fans |
4 fan(s) |
|
Fan diameter |
8 cm |
|
Built-in display |
No |
|
Built-in speaker(s) |
No |
|
Performance |
|
Type |
Storage server |
|
Device class |
Small & Medium Business |
|
Backup function |
Yes |
|
Noise level |
50.2 dB |
|
On/off switch |
Yes |
|
Power |
|
Power supply unit (PSU) capacity |
500 W |
|
Number of power supply units |
1 |
|
Redundant power supply (RPS) support |
Yes |
|
Power consumption (typical) |
142.5 W |
|
Power consumption (HDD standby) |
72.76 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width |
482 mm |
|
Depth |
724 mm |
|
Height |
88 mm |
|
Weight |
14.5 kg |
|
Packaging content |
|
Power cables quantity |
2 |
|
Processor special features |
|
Embedded options available |
No |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Execute Disable Bit |
Yes |
|
Idle States |
Yes |
|
Intel 64 |
Yes |
|
Intel Enhanced Halt State |
Yes |
|
Intel Secure Key Technology version |
1.00 |
|
Intel Trusted Execution Technology |
Yes |
|
Intel TSX-NI |
Yes |
|
Intel TSX-NI version |
1.00 |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Certificates |
|
Certification |
FCC
CE
BSMI
VCCI
RCM
EAC
CCC
KC
UL |
|
Logistics data |
|
Harmonized System (HS) code |
84714100 |
