General Information |
|
Summary |

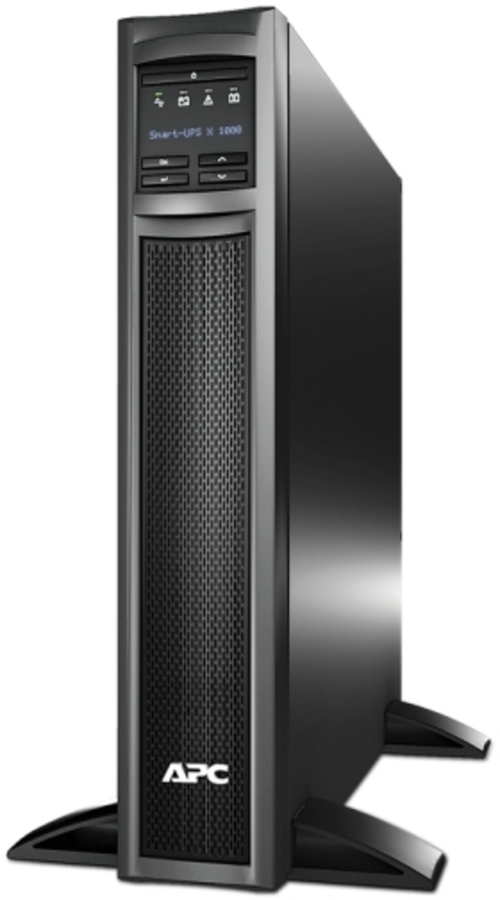

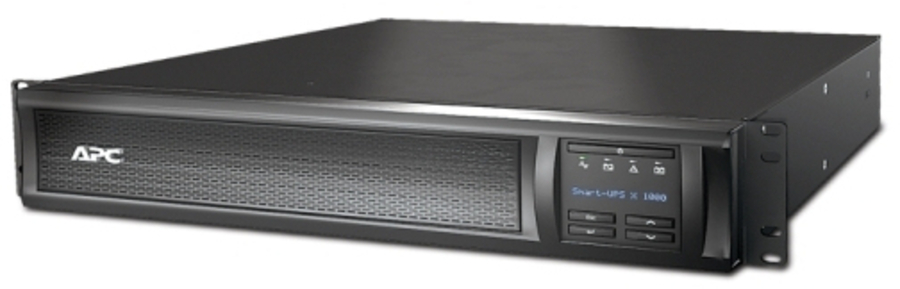

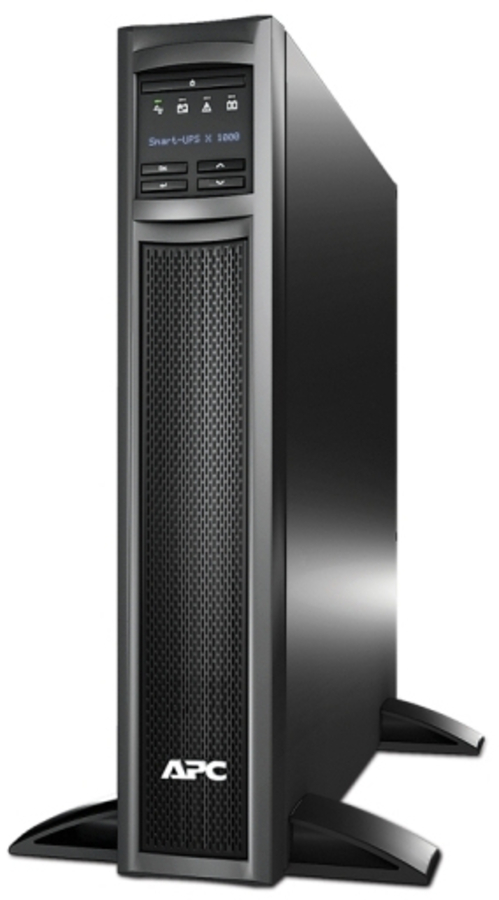

APC SMX1000C 1000VA Smart UPS X Rack Tower - Tower/Rack Convertible - AVR - 2 Hour Recharge - 8 Minute Stand-by - 120 V AC Input - 120 V AC Output - 8 x NEMA 5-15R |
|
Features |
|
UPS topology |
Line-Interactive |
|
Output power capacity |
1 kVA |
|
Output power |
900 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
82 V |
|
Input operation voltage (max) |
143 V |
|
Input frequency |
50/60 Hz |
|
Output operation voltage (min) |
120 V |
|
Output operation voltage (max) |
120 V |
|
Maximum current |
12 A |
|
Surge energy rating |
600 J |
|
Noise level |
40 dB |
|
Audible alarm(s) |
Yes |
|
Audible alarm modes |
Low battery alarm, Overload alarm |
|

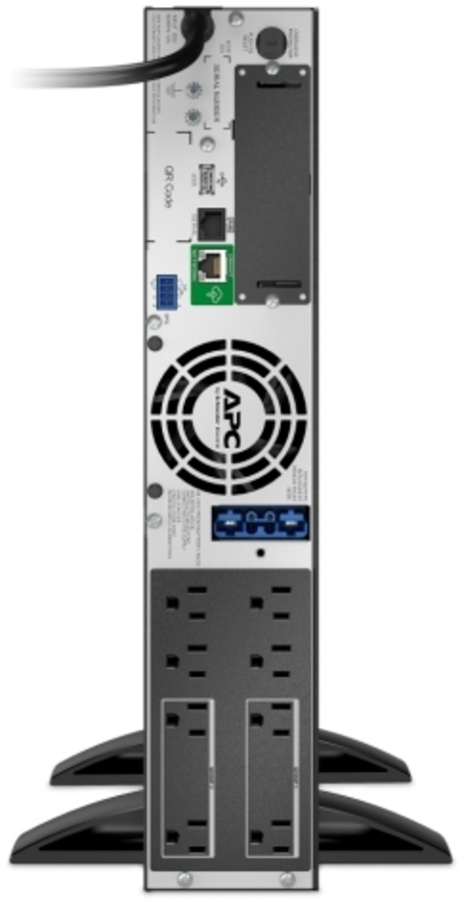

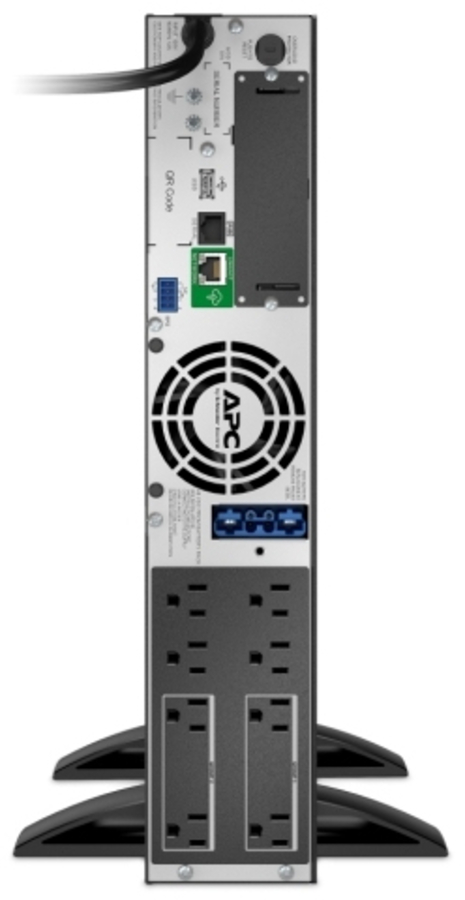

Ports & interfaces |
|
AC outlet types |
NEMA 5-15R |
|
AC outlets quantity |
8 AC outlet(s) |
|
USB port |
Yes |
|
Serial ports quantity |
1 |
|
Emergency Power Off (EPO) connector |
Yes |
|
SmartSlot |
Yes |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Battery recharge time |
3 h |
|
Replacement battery cartridge |
CURK116-01-02 |
|
Design |
|
Form factor |
Rackmount/Tower |
|
Product colour |
Black |
|
Cable length |
2.4 m |
|
Display type |
LCD |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3048 m |
|
Non-operating altitude |
0 - 15240 m |
|
Weight & dimensions |
|
Width |
89 mm |
|
Depth |
490 mm |
|
Height |
432 mm |
|
Weight |
22.9 kg |
|
Packaging data |
|
Package width |
246 mm |
|
Package depth |
620 mm |
|
Package height |
589 mm |
|
Package weight |
27.3 kg |
