General Information |
|
Summary |

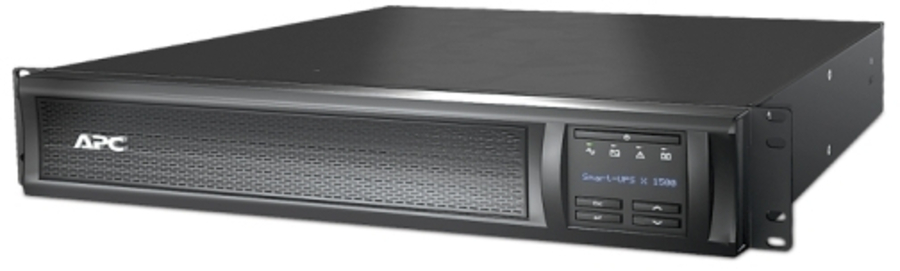

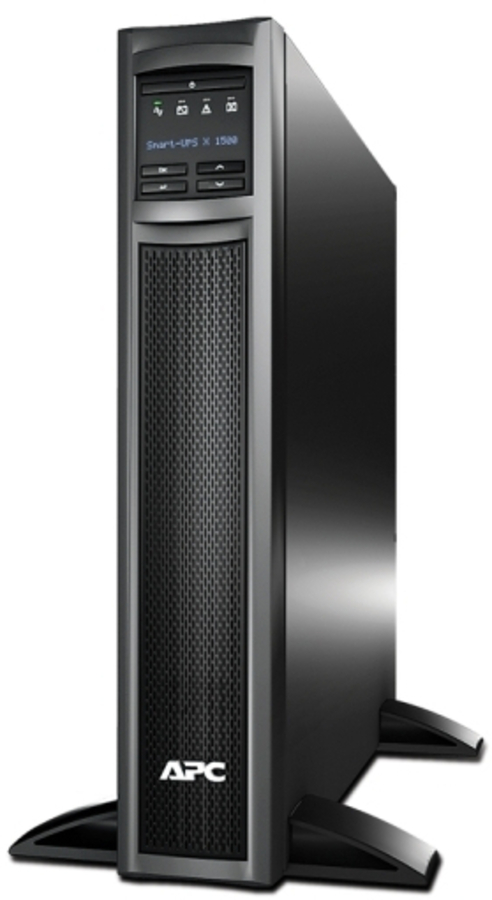

APC SMX1500RM2UC 1500VA Smart UPS X Rack Tower - Tower/Rack Convertible - AVR - 2 Hour Recharge - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - 8 x NEMA 5-15R. |
|
Features |
|
UPS topology |
Line-Interactive |
|
Output power capacity |
1.44 kVA |
|
Output power |
1200 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
75 V |
|
Input operation voltage (max) |
154 V |
|
Input frequency |
50/60 Hz |
|
Output operation voltage (max) |
120 V |
|
Output frequency |
50/60 Hz |
|
Automatic Voltage Regulation (AVR) |
Yes |
|
Maximum current |
12 A |
|
Surge energy rating |
645 J |
|
Emergency Power Off (EPO) |
Yes |
|
Output voltage Total Harmonic Distortion (THD) |
5% |
|
Noise level |
40 dB |
|
Power protection features |
Short circuit |
|
Audible alarm(s) |
Yes |
|
Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
|
Auto-restart |
Yes |
|
Ports & interfaces |
|

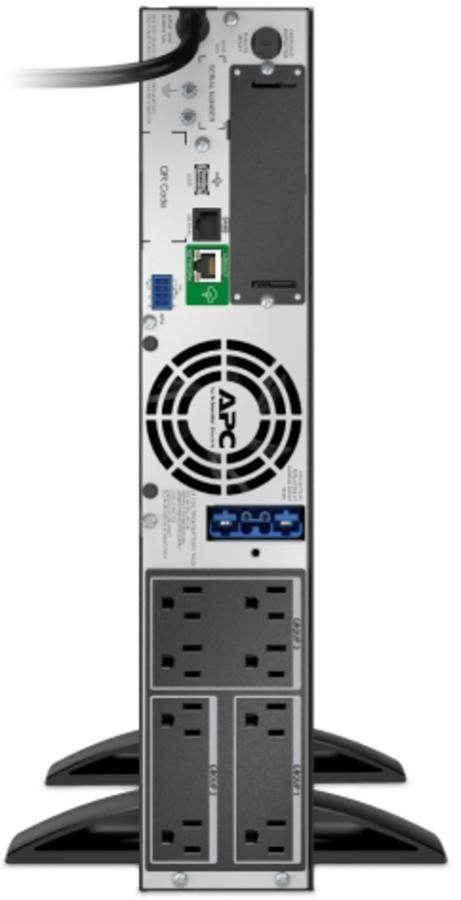

AC outlet types |
NEMA 5-15R |
|
Power plug |
NEMA 5-15P |
|
AC outlets quantity |
8 AC outlet(s) |
|
USB port |
Yes |
|
USB 2.0 ports quantity |
1 |
|
USB port type |
USB Type-B |
|
Serial interface |
Yes |
|
Serial interface type |
RS-232 |
|
SmartSlot |
Yes |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Number of batteries supported |
1 |
|
Battery life (max) |
5 year(s) |
|
Battery recharge time |
3 h |
|
Hot-swap battery |
Yes |
|
Automatic battery test |
Yes |
|
Design |
|
Form factor |
Rackmount/Tower |
|
Product colour |
Black |
|
Rack capacity |
2U |
|
Cable length |
2.44 m |
|
Display type |
LCD |
|
LED indicators |
Yes |
|
Certification |
cUL Listed, TAA compliance, UL 1778 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Technical details |
|
Sustainability certificates |
ENERGY STAR, RoHS |
|
Weight & dimensions |
|
Width |
432 mm |
|
Depth |
490 mm |
|
Height |
89 mm |
|
Weight |
24.8 kg |
|
Package width |
589 mm |
|
Package depth |
620 mm |
|
Package height |
246 mm |
|
Package weight |
30 kg |
|
Logistics data |
|
Harmonized System (HS) code |
85078000 |
