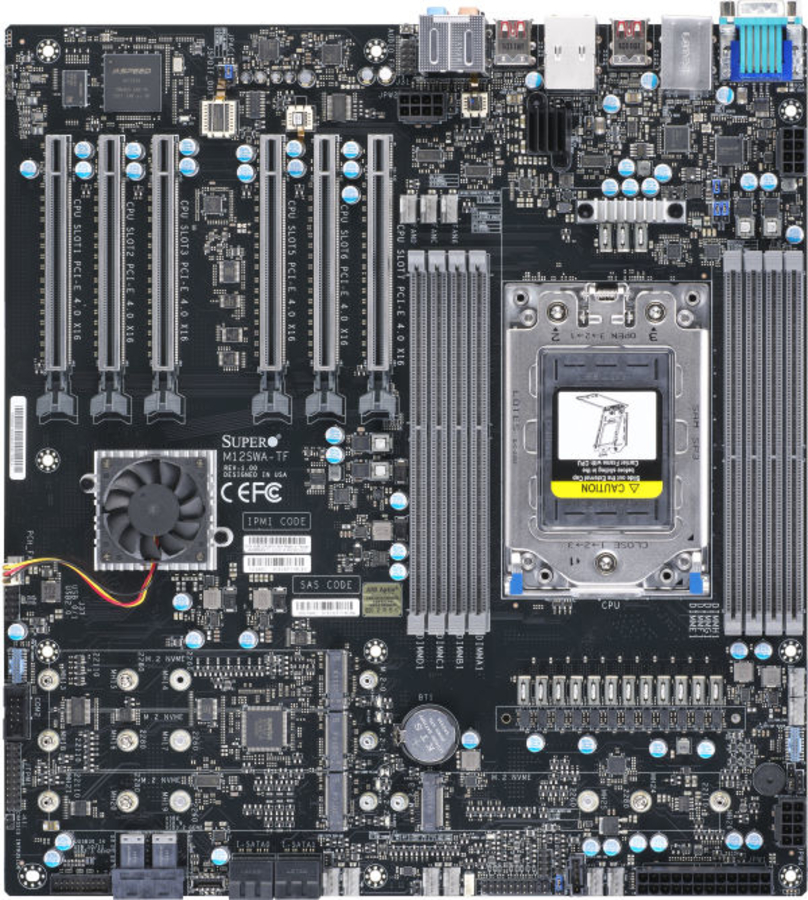

Supermicro M12SWA-TF sWRX80 eATX Mainboard

Home :: Mainboards :: AMD Desktop/Workstation MBs ::


Regularly: $977.00
On Sale: $937.92    Sale Ends: April 12th, 2024

Manufacturer: Supermicro

AMD, Ryzen Threadripper, ECC, non-ECC, 8x DIMM, PCIe, M.2, U.2, E-ATX

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
56556173 MBD-M12SWA-TF-O 672042441662 Active

Details

Processor
Processor manufacturer AMD
Processor socket Socket sWRX8
Compatible processor series AMD Ryzen™ Threadripper™
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 8
Maximum internal memory 2 TB
Memory slots type DIMM
Memory channels Octa-channel
Memory voltage 1.2 V
ECC Yes
Non-ECC Yes
Supported memory module capacities 2GB, 4GB, 16GB, 32GB, 64GB, 128GB
Unbuffered memory Yes
Maximum RDIMM memory 2 TB
Storage controllers
Supported storage drive interfaces M.2, SATA III
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
On-board graphics card model Aspeed AST2600
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Number of COM connectors 1
TPM connector Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 2
VGA (D-Sub) ports quantity 1
IPMI LAN (RJ-45) port Yes
Network
Ethernet LAN Yes
Ethernet interface type 10 Gigabit Ethernet
LAN controller Intel® I210-AT
Features
Component for Server
Motherboard form factor Extended ATX
Motherboard chipset family AMD
Audio output channels 7.1 channels
PC health monitoring CPU, Fan, LED, Temperature
Expansion slots
PCI Express x16 (Gen 4.x) slots 6
Number of M.2 (M) slots 1
BIOS
BIOS type AMI
BIOS memory size 256 Mbit
Operational conditions
Storage temperature (T-T) -5 - 55 °C
Operating temperature (T-T) 0 - 50 °C
Logistics data
Harmonized System (HS) code 84733020
