Aten 2-Ports USB 4K HDMI Cable KVM Switch with Remote Port Selector

Home :: I/O Devices ::


Regularly: $93.00
On Sale: $89.28    Sale Ends: April 12th, 2024

Manufacturer: Aten

2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
56694025 CS22H - Active

Details

General Information

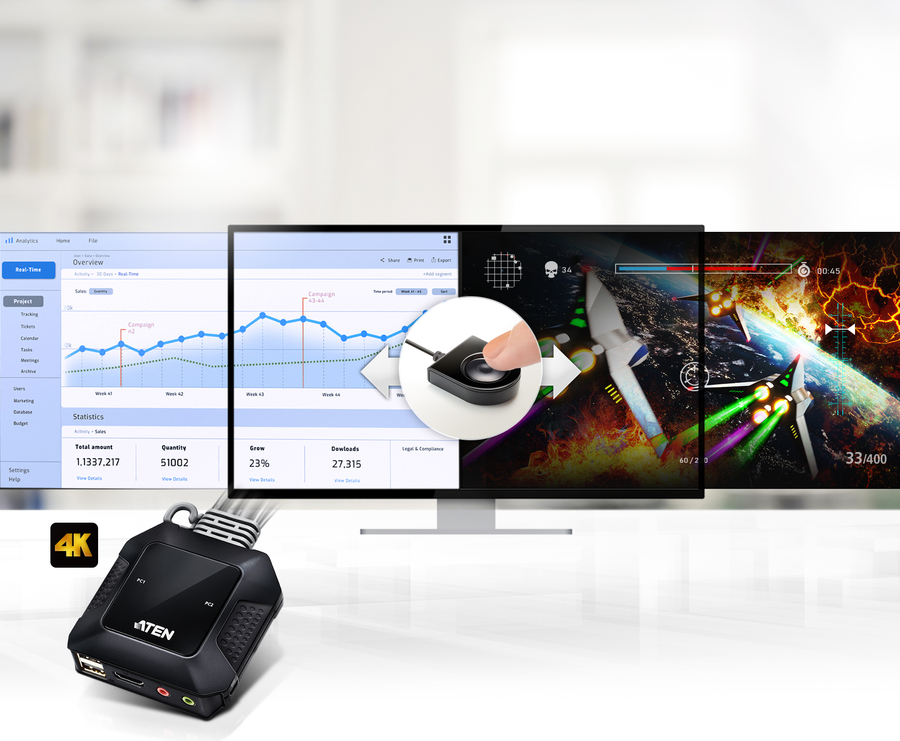

Summary Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.

Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.

Space Efficient Desktop Setup

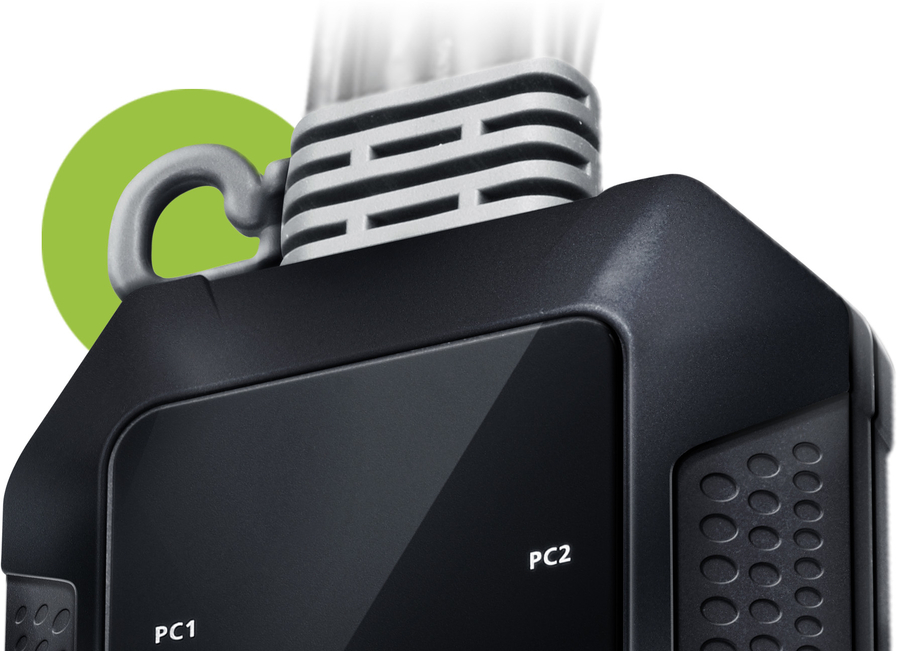

The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.

Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.

Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

Ports & interfaces
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type HDMI

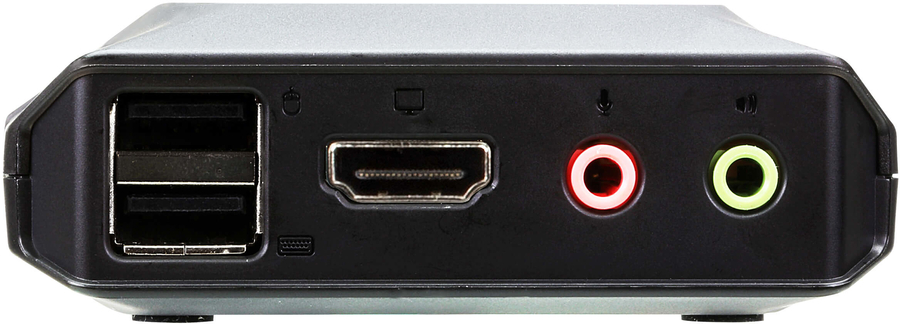

Console ports 3.5mm headphone, 3.5mm mic, HDMI, USB A
HDMI ports quantity 3
Console USB ports quantity 2
Console HDMI ports quantity 1
USB connector type USB Type-A
Audio connections Yes
Headphone outputs 3
Number of microphone inputs 3
Performance
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Video bandwidth 60 Hz
HDCP Yes
Hot-Plug support Yes
Plug and Play Yes
HDCP version 2.2
Design
Rack mounting No
Product colour Black
Housing material Plastic

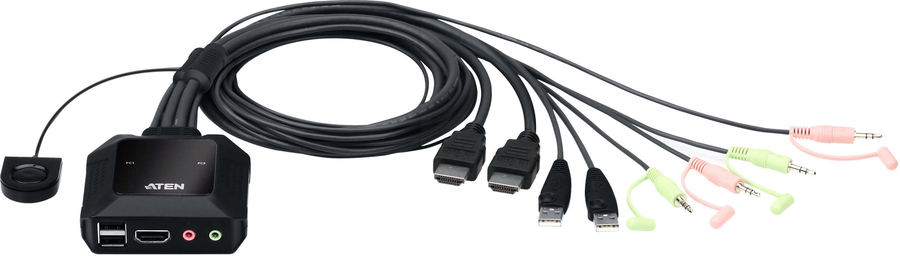

Wired remote switch Yes

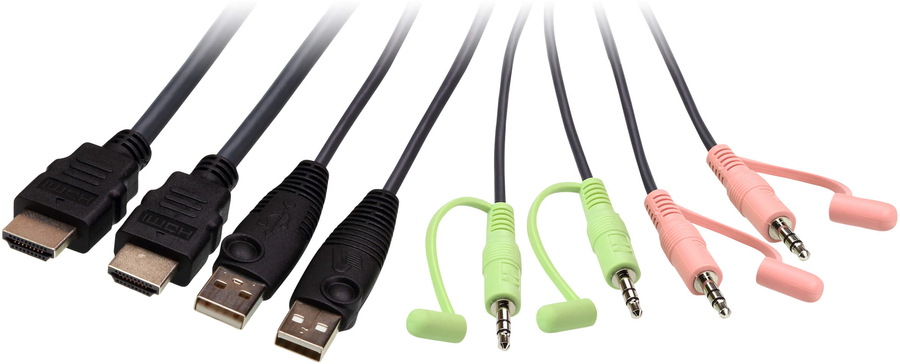

Cable length 1.2 m
Remote switch cable length 1.8 m
LED indicators Yes
Display
Built-in display No
Power

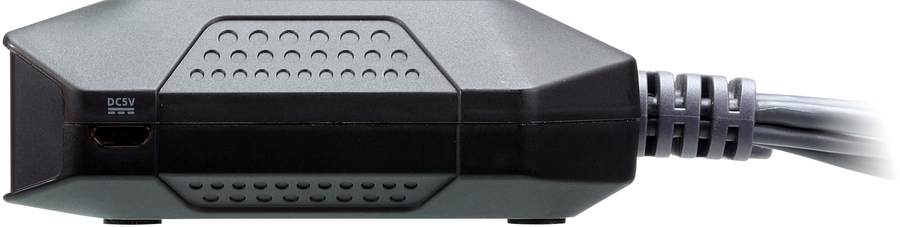

Power source USB
DC input voltage 5 V
Power consumption (typical) 3.47 W
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 84.2 mm
Depth 83.4 mm
Height 30.4 mm
Weight 340 g
Packaging content
Manual Yes
