General Information |
|
Summary |

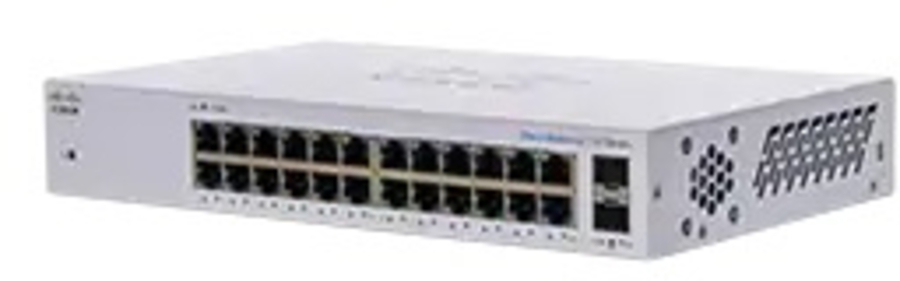

CBS110 Unmanaged 24-port GE, 2x1G SFP Shared |
|
Management features |
|
Switch type |
Unmanaged |
|
Quality of Service (QoS) support |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
24 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Network |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Head-of-line (HOL) blocking |
Yes |
|
Ethernet LAN data rates |
1000 Mbit/s |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
48 Gbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9216 |
|
Security |
|
Loop protection |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Grey |
|
Reset button |
Yes |
|
LED indicators |
Yes |
|
Power |
|
Power supply included |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Weight & dimensions |
|
Width |
279 mm |
|
Depth |
170 mm |
|
Height |
44 mm |
|
Weight |
1.56 kg |
